ماسفت IRLL2705TRPBF
Detail
IRLL2705TRPBF
Part Number .
2899
Lion Part .
Datasheet .
Infineon Technologies Manufacture .
ماسفت 55 ولت 3.8 آمپر نوع N با پکیج SOT-223-4

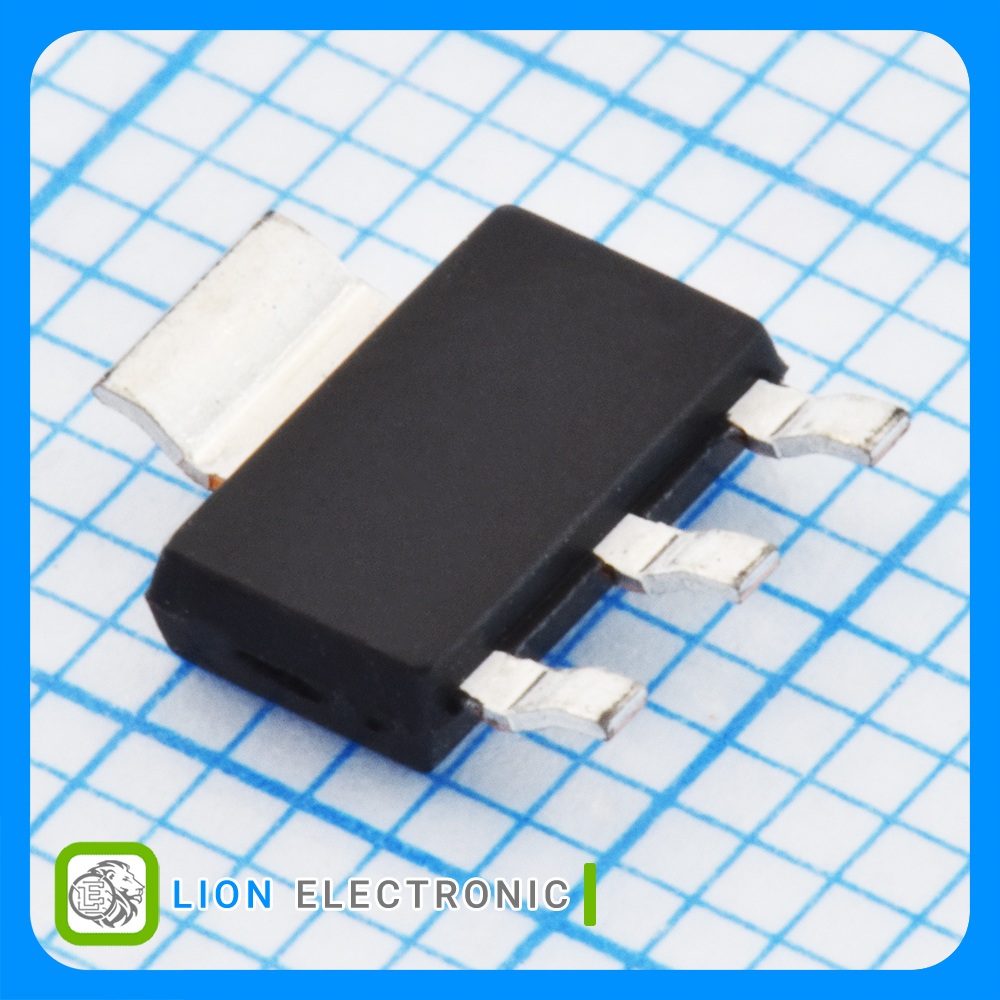

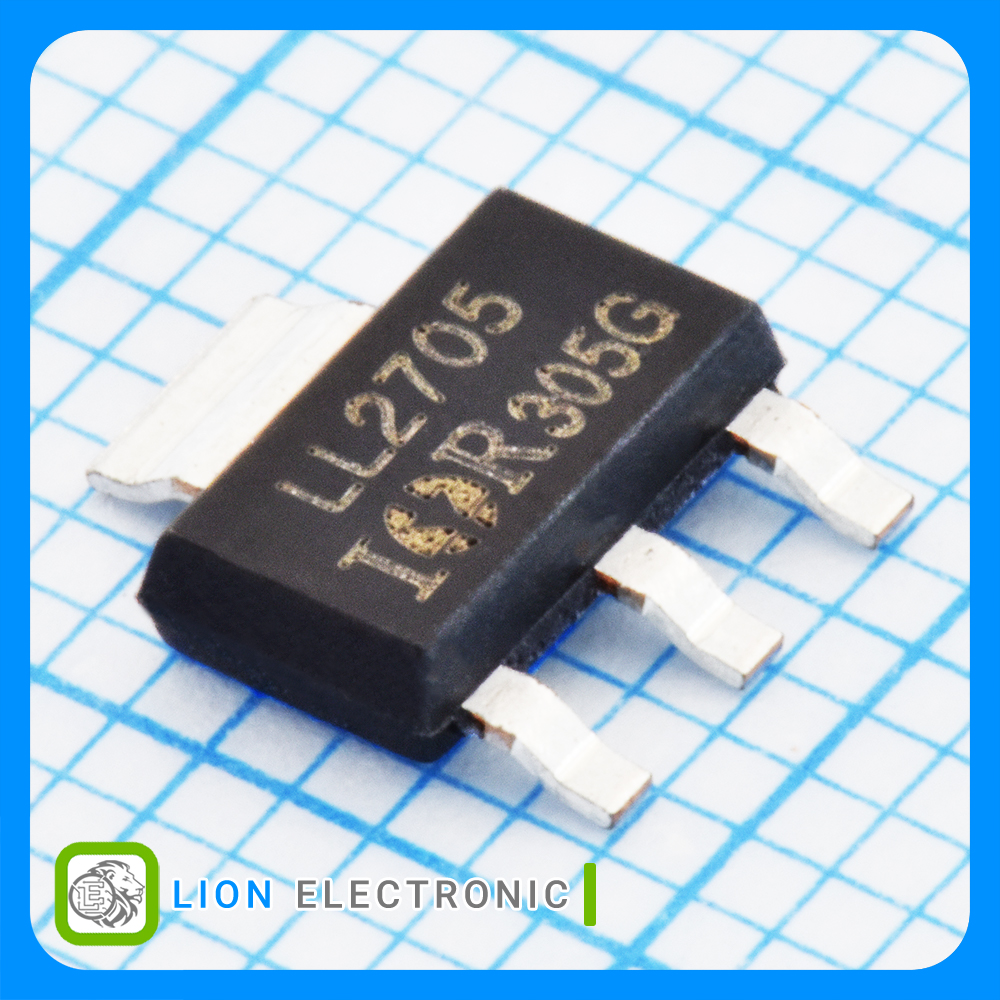

N-CH MOS 55V 3.8A SOT-223-4
مشخصات ماسفت IRLL2705TRPBF
ماسفت IRLL2705TRPBF
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
+150C
Maximum Operating Temperature .
Reel
Packaging .
SMD/SMT
Mounting Style .
±16V
Vgs - Gate - Source Voltage .
55V
Vds - Drain - Source Breakdown Voltage .
1V
Vgs th - Gate - Source Threshold Voltage .
Single
Configuration .
3.8A
Id - Continuous Drain Current .
2.1W
Pd - Power Dissipation .
32nC
Qg - Gate Charge .
40mΩ
Rds On - Drain - Source Resistance .
SOT-223-4
Package-Case .
