ماسفت SMK1060F
Detail
SMK1060F
Part Number .
2940
Lion Part .
Datasheet .
Kodenshi AUK Manufacture .

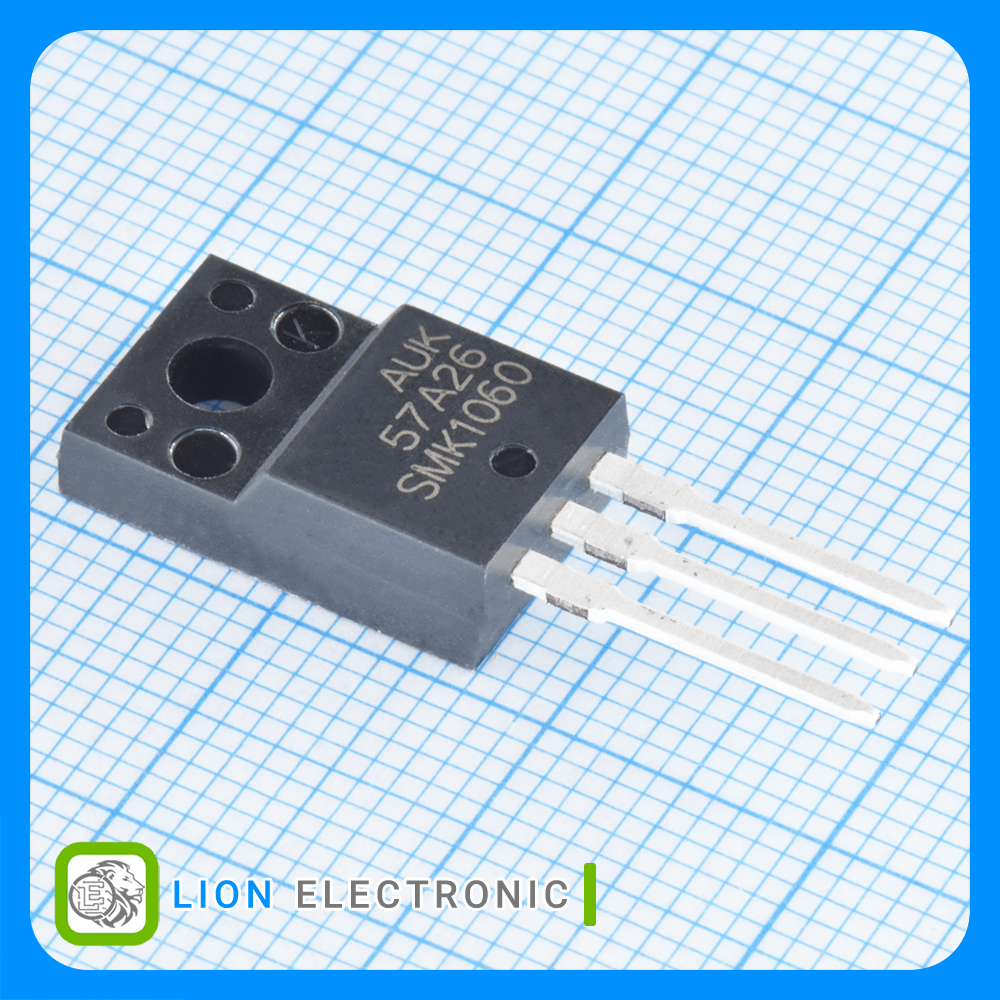

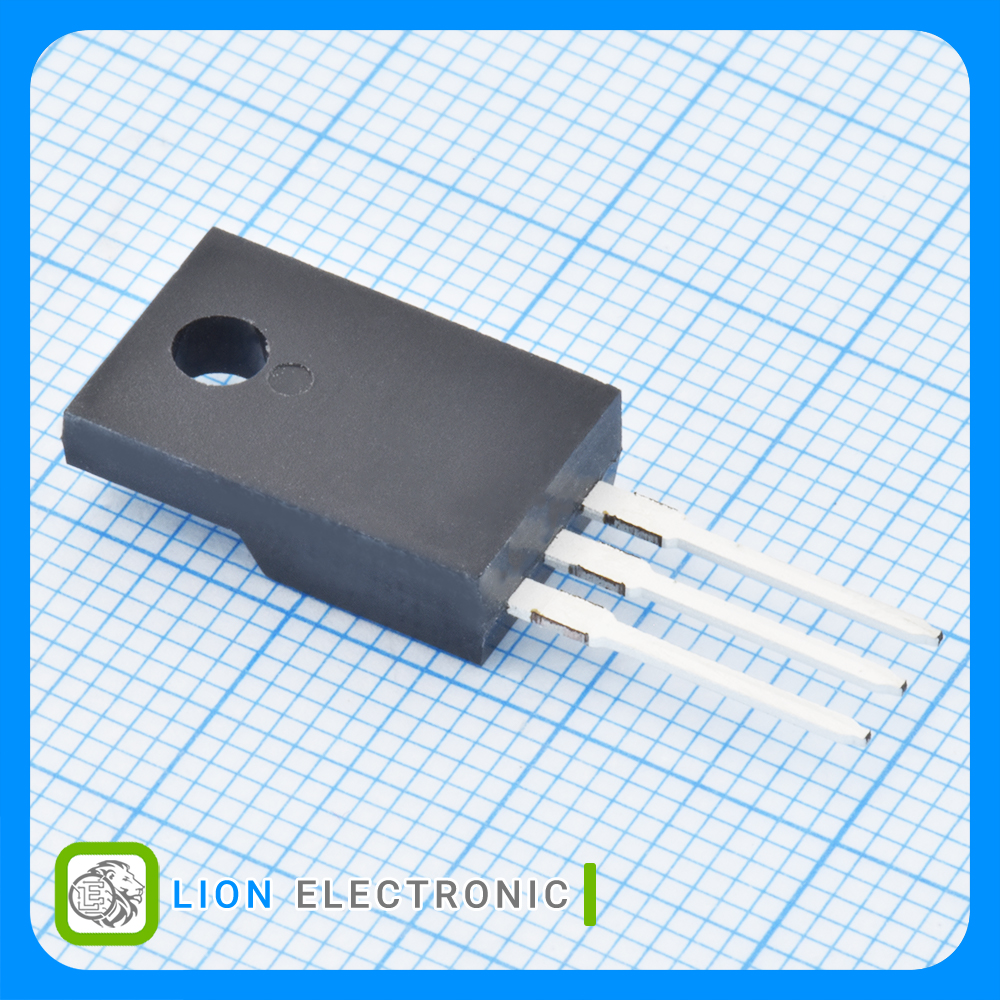

ماسفت 600 ولت 10 آمپر نوع N با پکیج TO-220FP-3
N-CH MOS 600V 10A TO-220FP-3
مشخصات ماسفت SMK1060F
ماسفت SMK1060F
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
+150C
Maximum Operating Temperature .
Tube
Packaging .
Through Hole
Mounting Style .
±30V
Vgs - Gate - Source Voltage .
Single
Configuration .
600V
Vds - Drain - Source Breakdown Voltage .
2V
Vgs th - Gate - Source Threshold Voltage .
35nC
Qg - Gate Charge .
10A
Id - Continuous Drain Current .
40W
Pd - Power Dissipation .
600mΩ
Rds On - Drain - Source Resistance .
TO-220FP-3
Package-Case .
