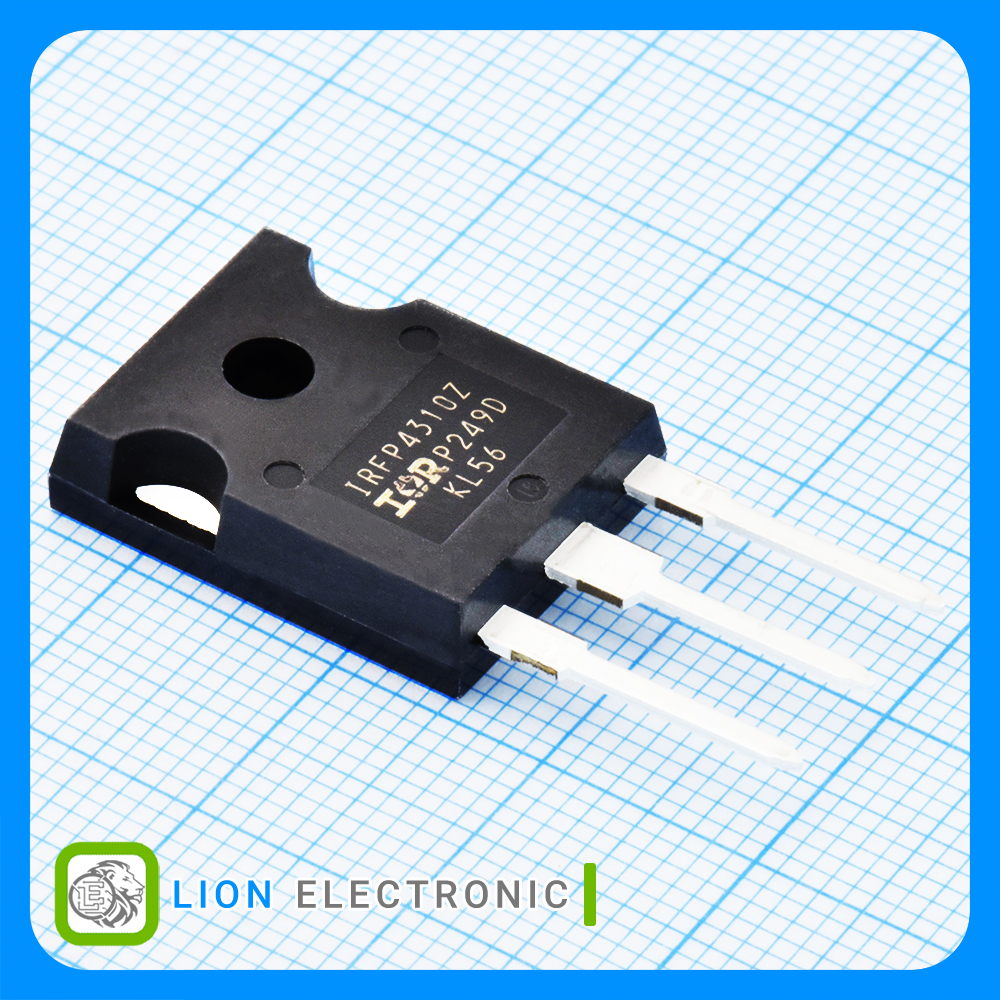

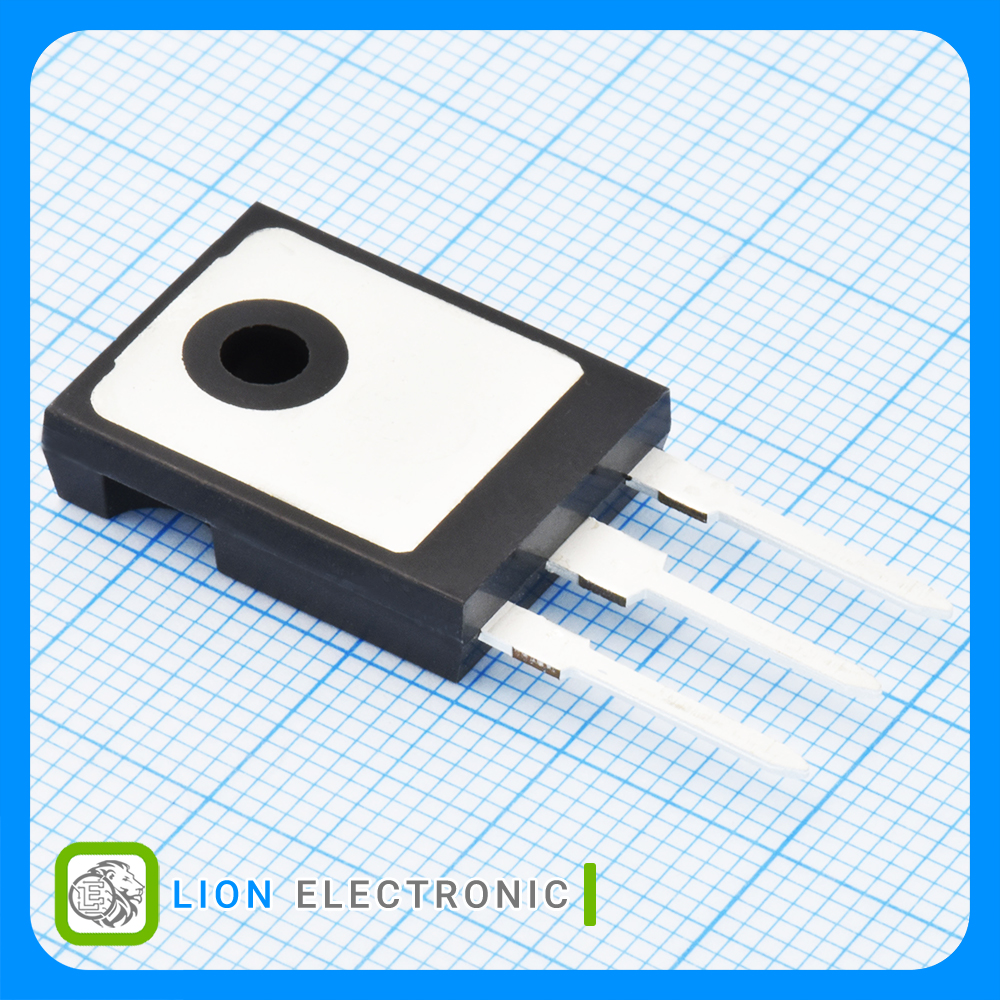

ماسفت IRFP4310ZPBF
Detail
IRFP4310ZPBF
Part Number .
3001
Lion Part .
Datasheet .
International Rectifier Manufacture .
ماسفت 100 ولت 134 آمپر نوع N با پکیج TO-247-3
N-CH MOS 100V 134A TO-247-3
مشخصات ماسفت IRFP4310ZPBF
ماسفت IRFP4310ZPBF
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
+175C
Maximum Operating Temperature .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
Tube
Packaging .
Through Hole
Mounting Style .
±20V
Vgs - Gate - Source Voltage .
100V
Vds - Drain - Source Breakdown Voltage .
Single
Configuration .
4.8mΩ
Rds On - Drain - Source Resistance .
2V
Vgs th - Gate - Source Threshold Voltage .
120nC
Qg - Gate Charge .
120A
Id - Continuous Drain Current .
280W
Pd - Power Dissipation .
TO-247
Package-Case .
