APM
مشخصات ماسفت AP100N03D

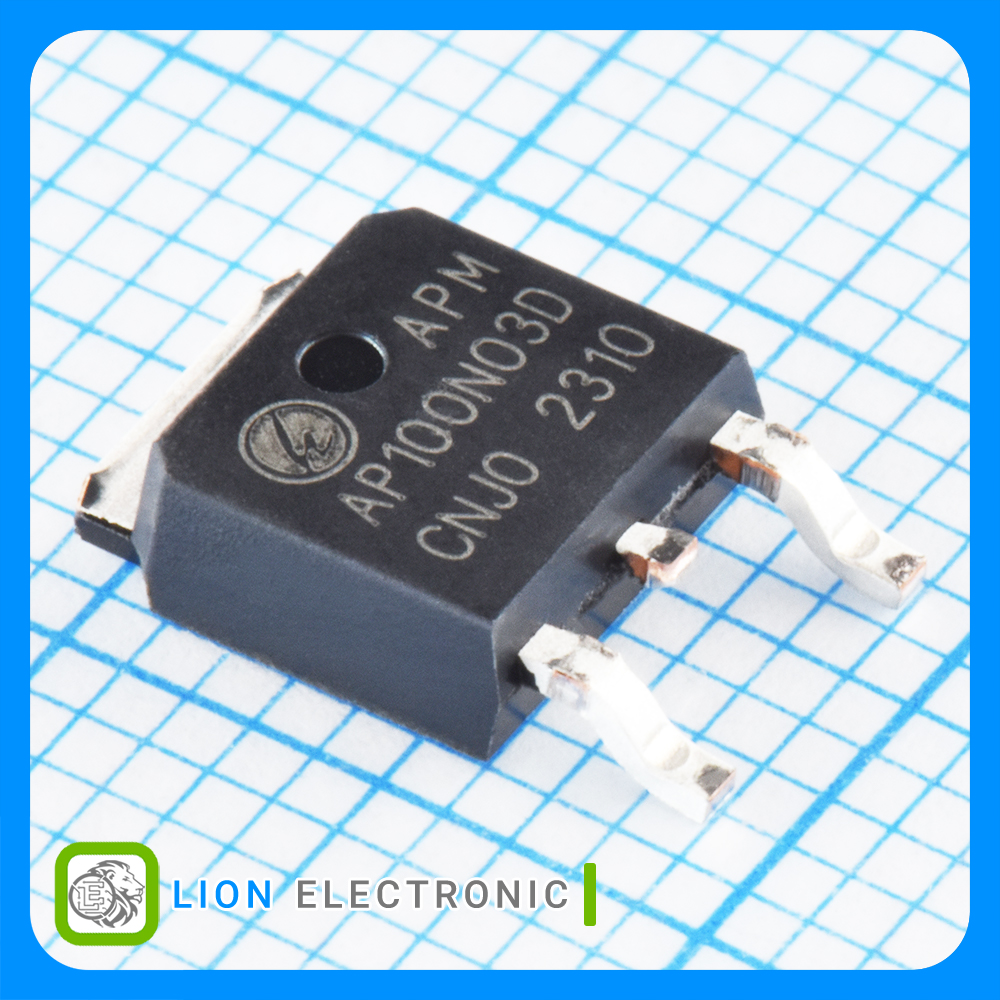

ماسفت AP100N03D
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
+175C
Maximum Operating Temperature .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
Reel
Packaging .
SMD/SMT
Mounting Style .
±20V
Vgs - Gate - Source Voltage .
30V
Vds - Drain - Source Breakdown Voltage .
1V
Vgs th - Gate - Source Threshold Voltage .
3.6mΩ
Rds On - Drain - Source Resistance .
Single
Configuration .
45nC
Qg - Gate Charge .
DPAK
Package-Case .
68W
Pd - Power Dissipation .
100A
Id - Continuous Drain Current .
