مشخصات ماژول وای فای و بلوتوث ESP32-C3-WROOM-02-H4

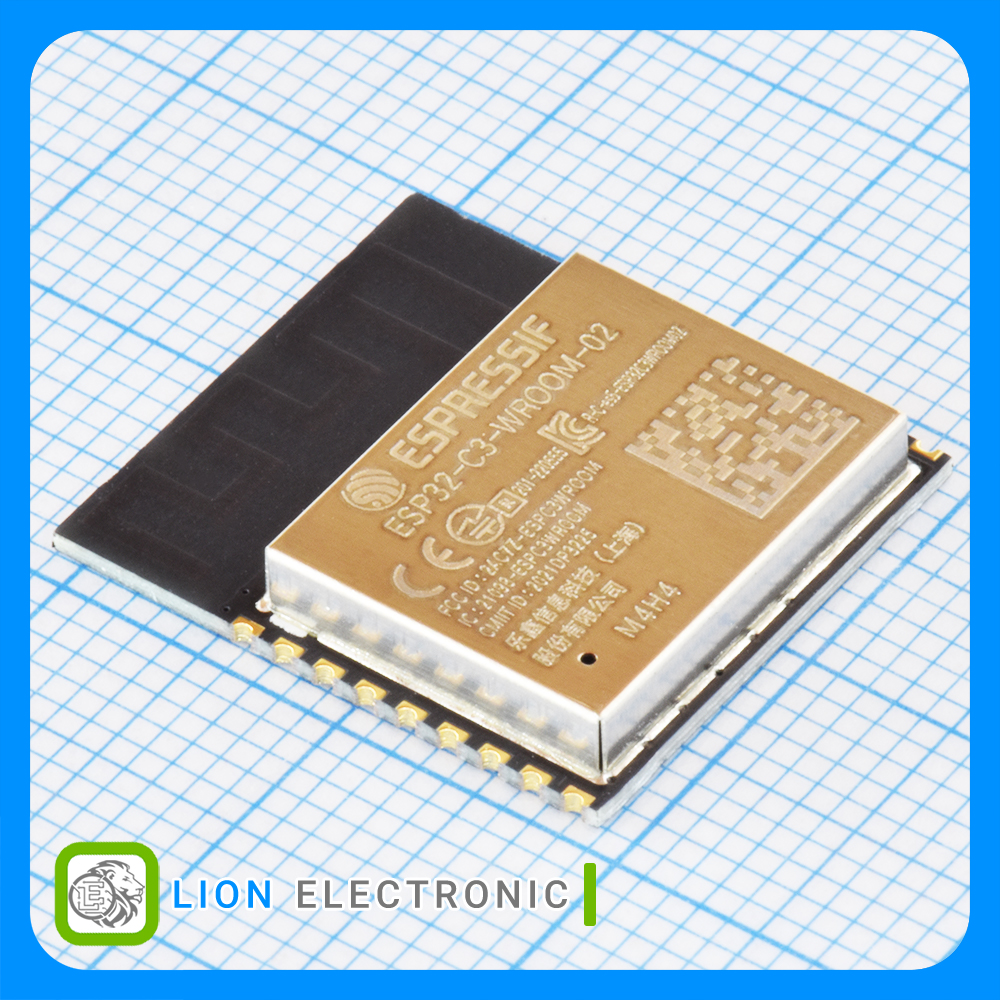

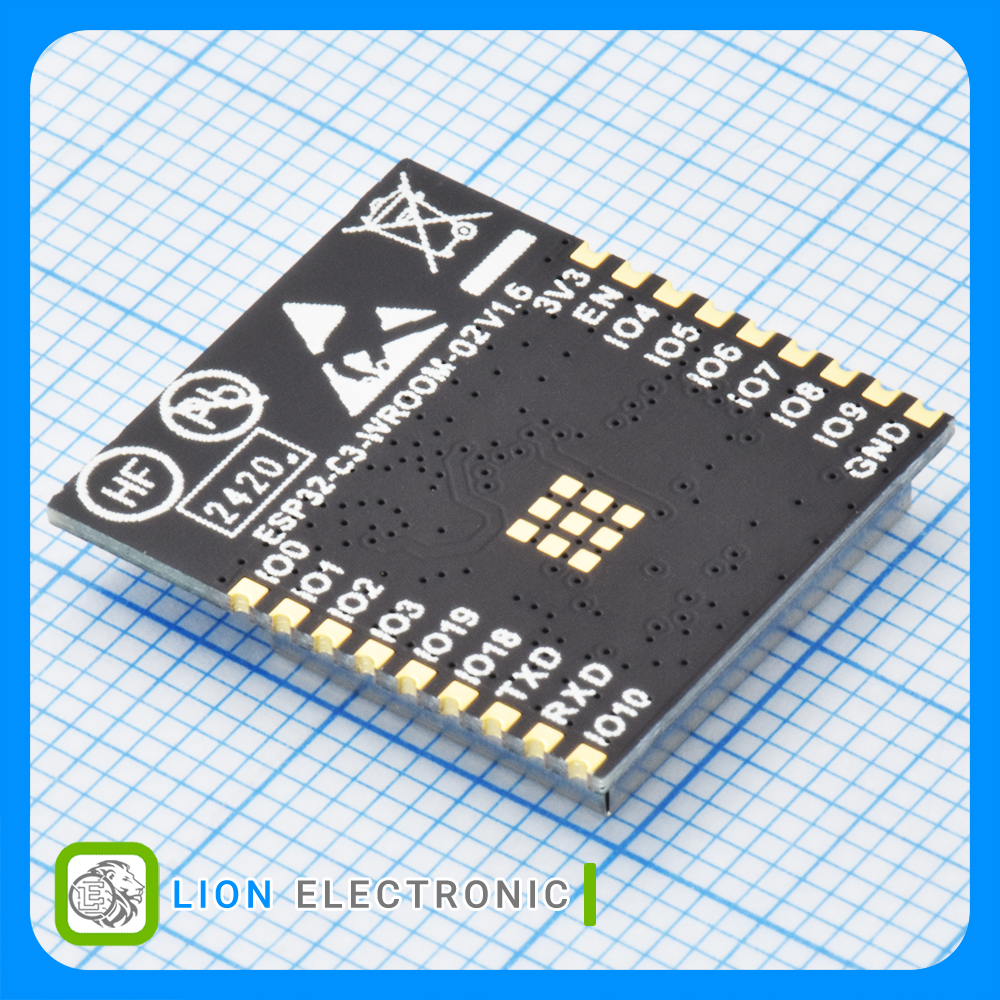

ماژول وای فای و بلوتوث ESP32-C3-WROOM-02-H4
Part Number .
-40C
Minimum Operating Temperature .
Reel
Packaging .
PCB
Antenna Connector Type .
15
Number of I-Os .
+105C
Maximum Operating Temperature .
280mA, 285mA, 345mA
Supply Current Transmitting .
82mA, 84mA
Supply Current Receiving .
160MHz
Frequency .
18mm x 20mm x 3.2mm
Dimensions .
GPIO, I2C, I2S, SPI, UART
Interface Type .
20.5dBm
Output Power .
3 - 3.6V
Operating Supply Voltage .
Wi-Fi & Bluetooth (LE) & MCU Module
Product .
