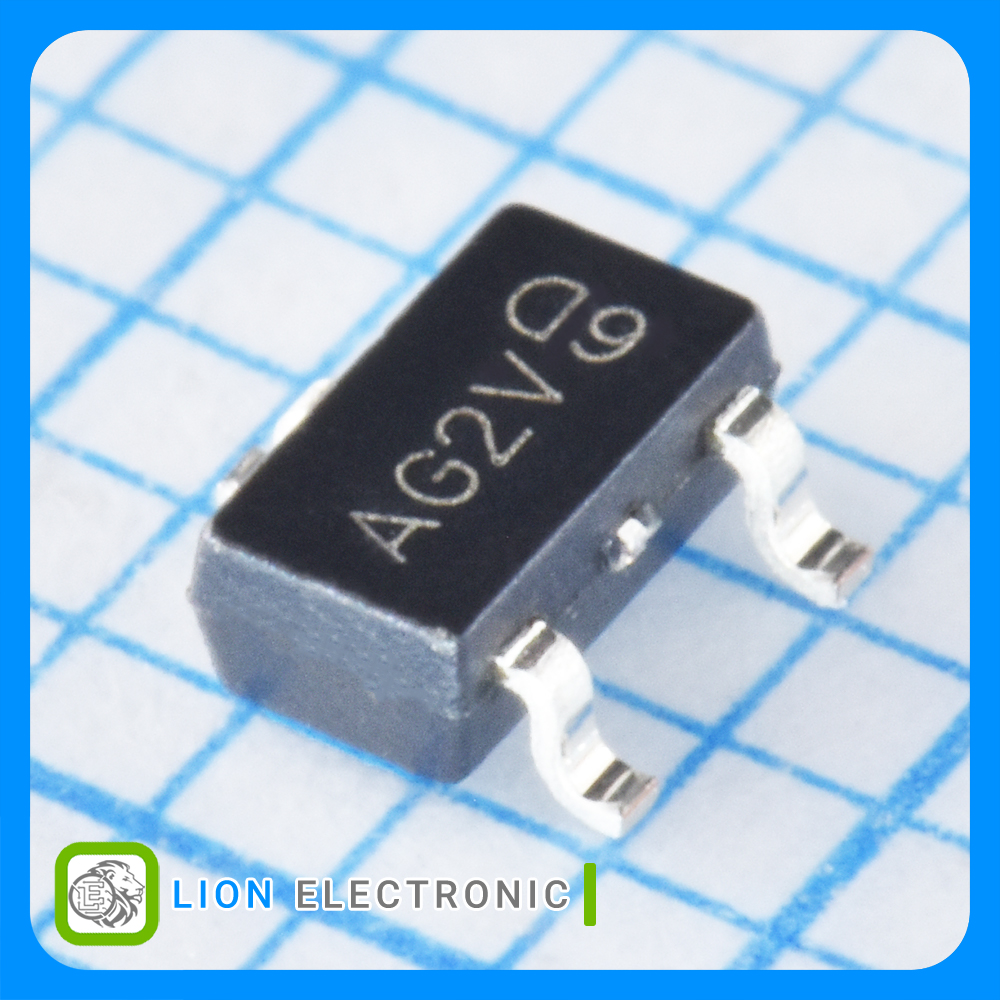

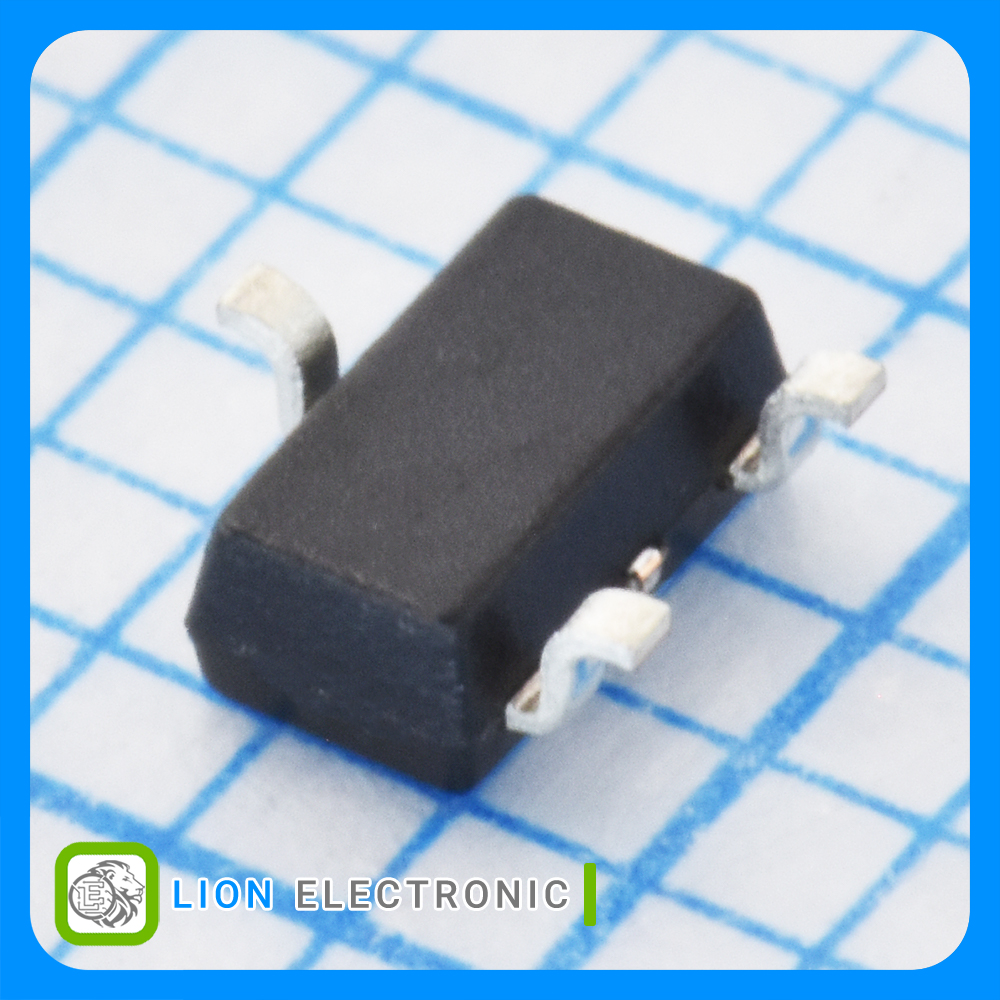

ماسفت AO3416
Detail
AO3416
Part Number .
3262
Lion Part .
Datasheet .
Alpha & Omega Semiconductor Manufacture .
ماسفت 20 ولت 6.5 آمپر نوع N با پکیج SOT-23-3
N-CH MOS 20V 6.5A SOT-23-3
مشخصات ماسفت AO3416
ماسفت AO3416
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
+150C
Maximum Operating Temperature .
±8V
Vgs - Gate - Source Voltage .
Reel
Packaging .
SMD/SMT
Mounting Style .
20V
Vds - Drain - Source Breakdown Voltage .
400mV
Vgs th - Gate - Source Threshold Voltage .
Single
Configuration .
10nC
Qg - Gate Charge .
1.4W
Pd - Power Dissipation .
16mΩ
Rds On - Drain - Source Resistance .
6.5A
Id - Continuous Drain Current .
SOT-23-3
Package-Case .
