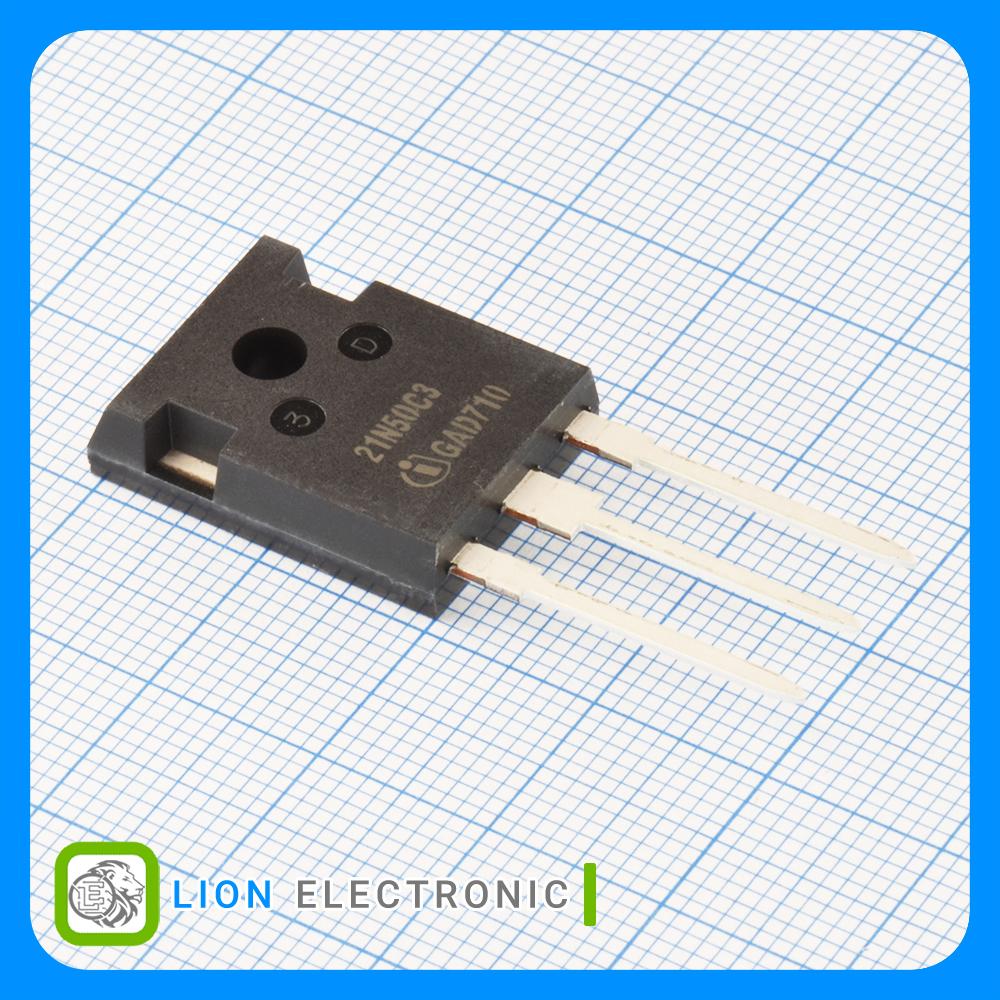

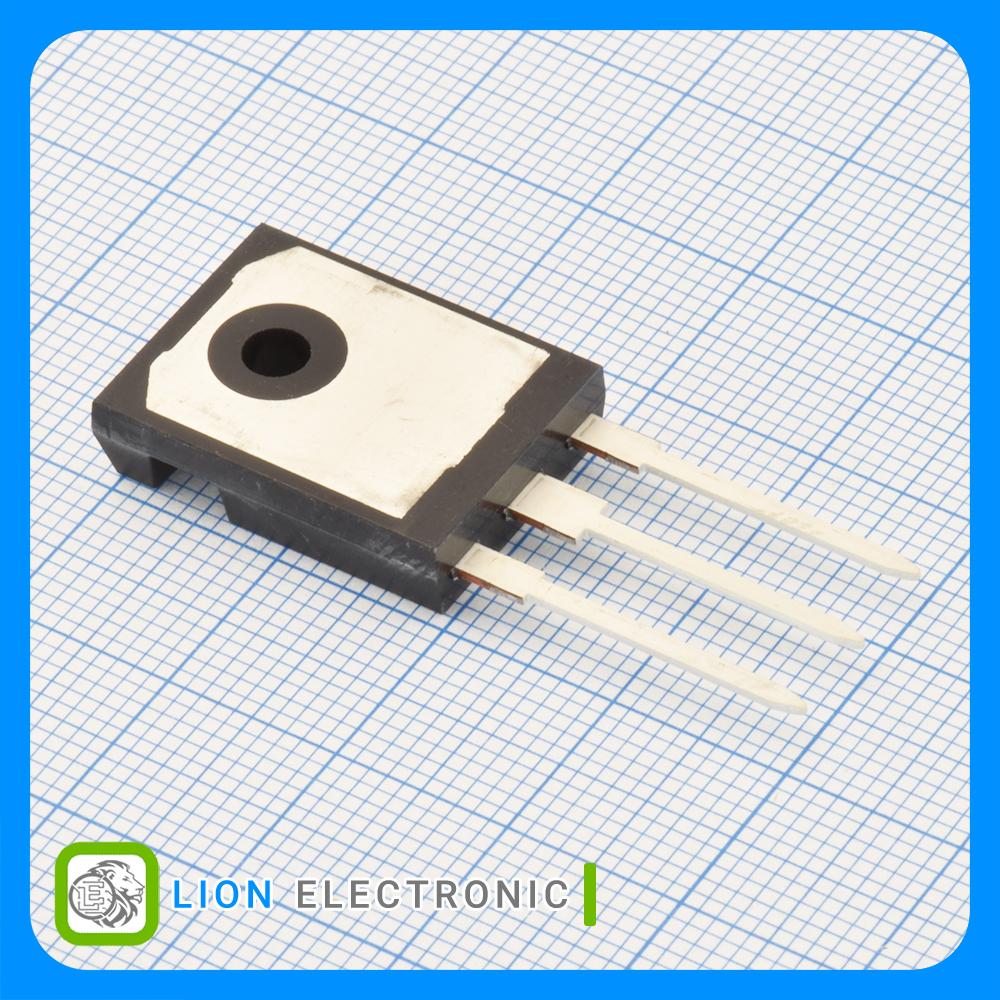

ماسفت SPW21N50C3
Detail
SPW21N50C3
Part Number .
3286
Lion Part .
Datasheet .
Infineon Technologies Manufacture .
ماسفت 500 ولت 21 آمپر نوع N با پکیج TO-247-3
N-CH MOS 500V 21A TO-247-3
مشخصات ماسفت SPW21N50C3
ماسفت SPW21N50C3
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
+150C
Maximum Operating Temperature .
Tube
Packaging .
Through Hole
Mounting Style .
±20V
Vgs - Gate - Source Voltage .
Single
Configuration .
560V
Vds - Drain - Source Breakdown Voltage .
2.1V
Vgs th - Gate - Source Threshold Voltage .
21A
Id - Continuous Drain Current .
95nC
Qg - Gate Charge .
160mΩ
Rds On - Drain - Source Resistance .
208W
Pd - Power Dissipation .
TO-247
Package-Case .
