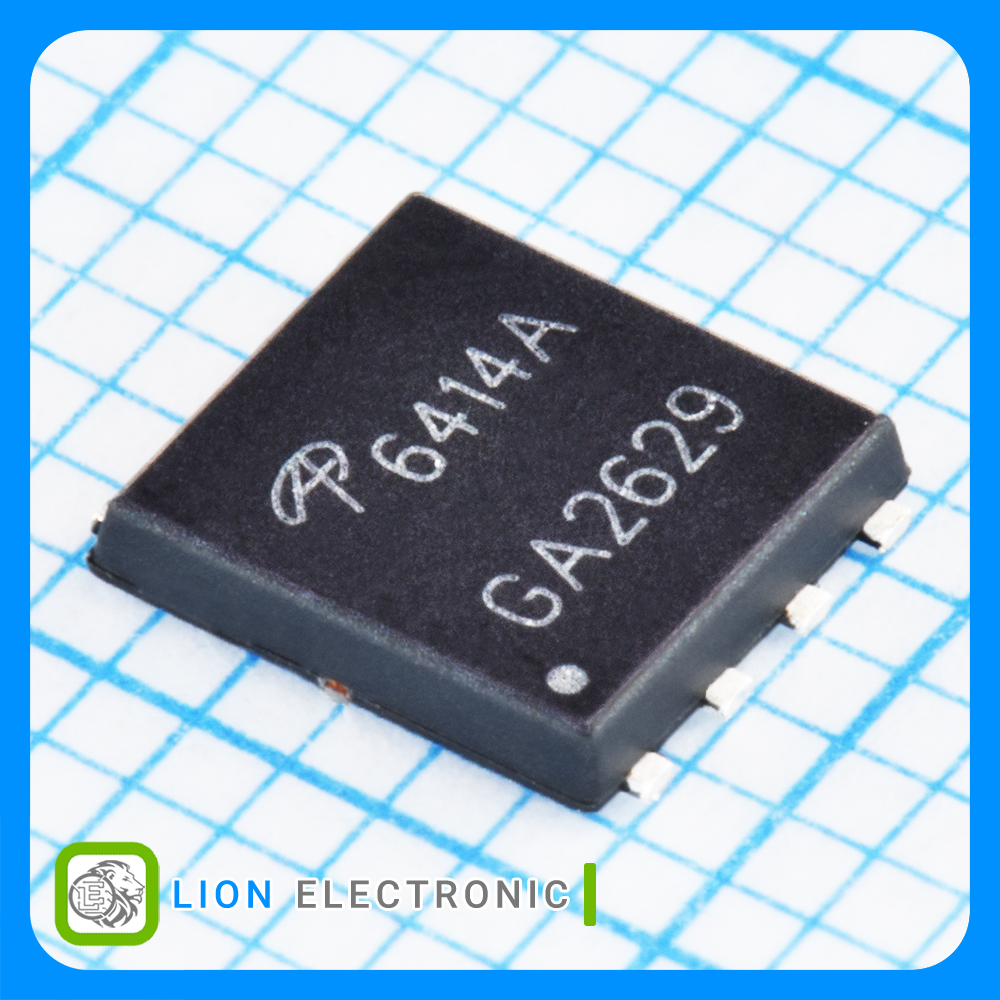

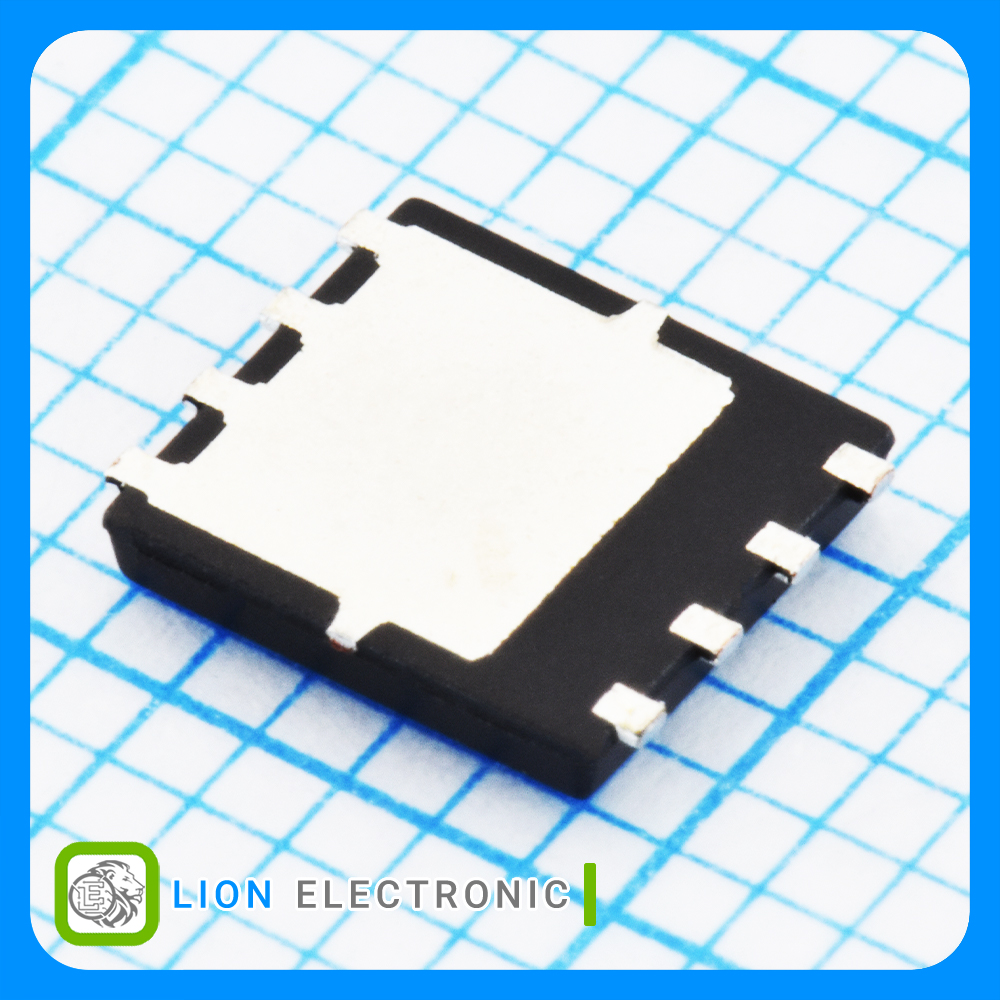

ماسفت AON6414AL
Detail
AON6414AL
Part Number .
3298
Lion Part .
Datasheet .
Alpha & Omega Semiconductor Manufacture .
ماسفت 30 ولت 50 آمپر نوع N با پکیج DFN-8(5x6)
N-CH MOS 30V 50A DFN-8(5x6)
مشخصات ماسفت AON6414AL
ماسفت AON6414AL
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
+150C
Maximum Operating Temperature .
Reel
Packaging .
SMD/SMT
Mounting Style .
±20V
Vgs - Gate - Source Voltage .
30V
Vds - Drain - Source Breakdown Voltage .
Single
Configuration .
1.5V
Vgs th - Gate - Source Threshold Voltage .
6.6mΩ
Rds On - Drain - Source Resistance .
20nC
Qg - Gate Charge .
DFN-8(5x6)
Package-Case .
31W
Pd - Power Dissipation .
50A
Id - Continuous Drain Current .
