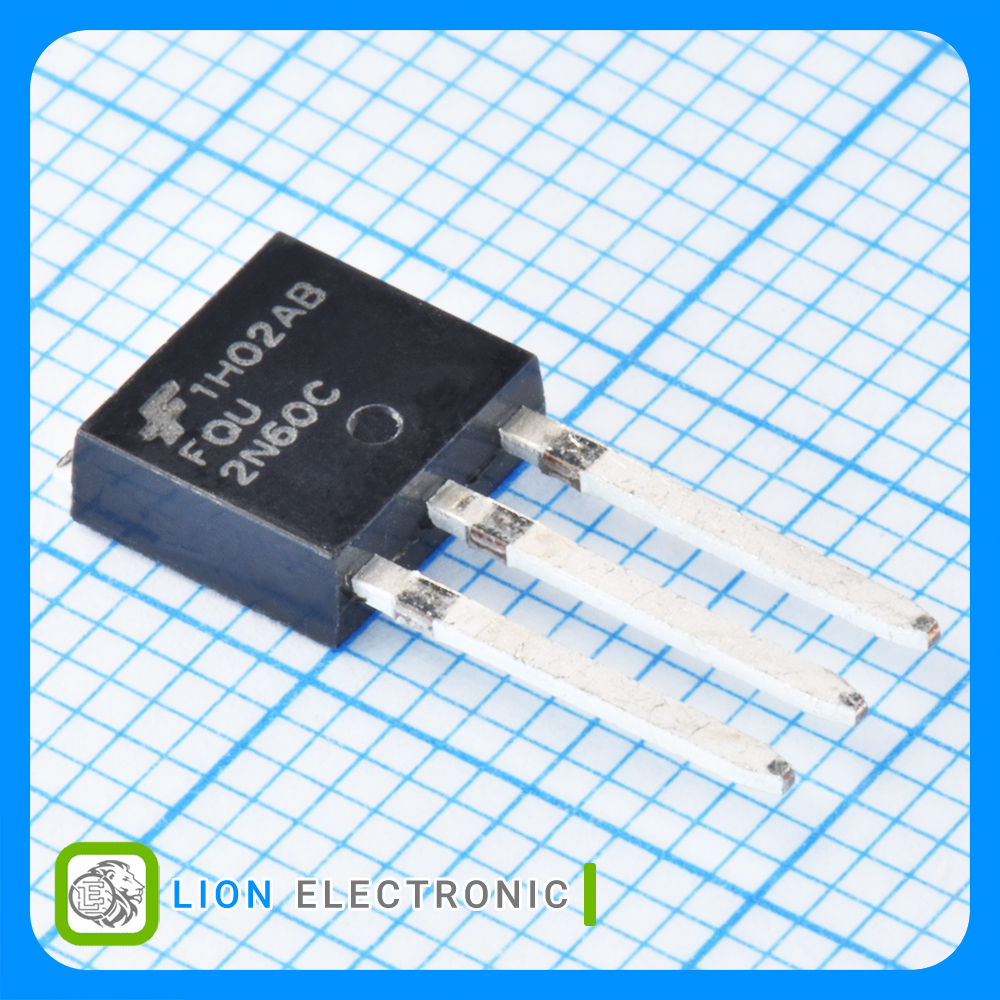

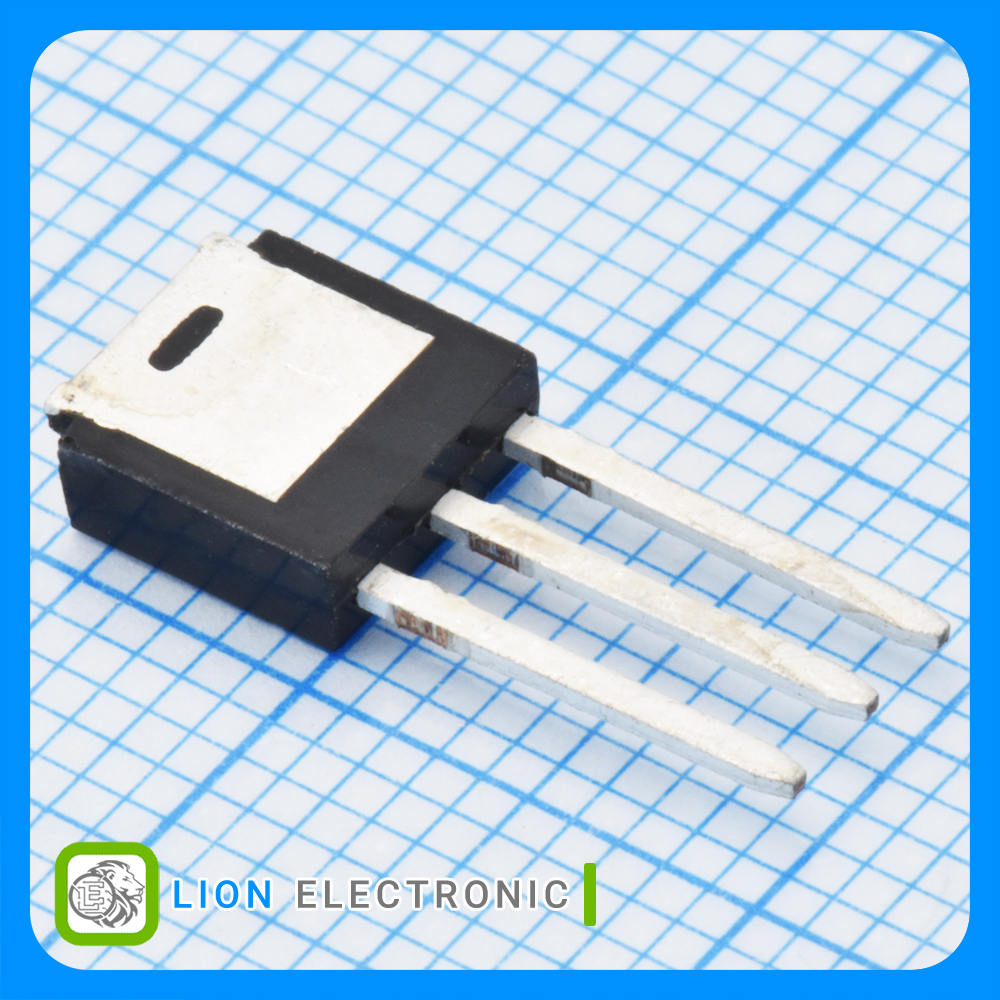

ماسفت FQU2N60CTU
Detail
FQU2N60CTU
Part Number .
3302
Lion Part .
Datasheet .
FAIRCHILD/ONSEMI Manufacture .
ماسفت 600 ولت 1.9 آمپر نوع N با پکیج TO-251-3
N-CH MOS 600V 1.9A TO-251-3
مشخصات ماسفت FQU2N60CTU
ماسفت FQU2N60CTU
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
+150C
Maximum Operating Temperature .
Tube
Packaging .
Through Hole
Mounting Style .
±30V
Vgs - Gate - Source Voltage .
8.5nC
Qg - Gate Charge .
Single
Configuration .
600V
Vds - Drain - Source Breakdown Voltage .
2V
Vgs th - Gate - Source Threshold Voltage .
1.9A
Id - Continuous Drain Current .
44W
Pd - Power Dissipation .
3.6Ω
Rds On - Drain - Source Resistance .
TO-251-3
Package-Case .
