NCE Power
مشخصات ماسفت NCE65T180F

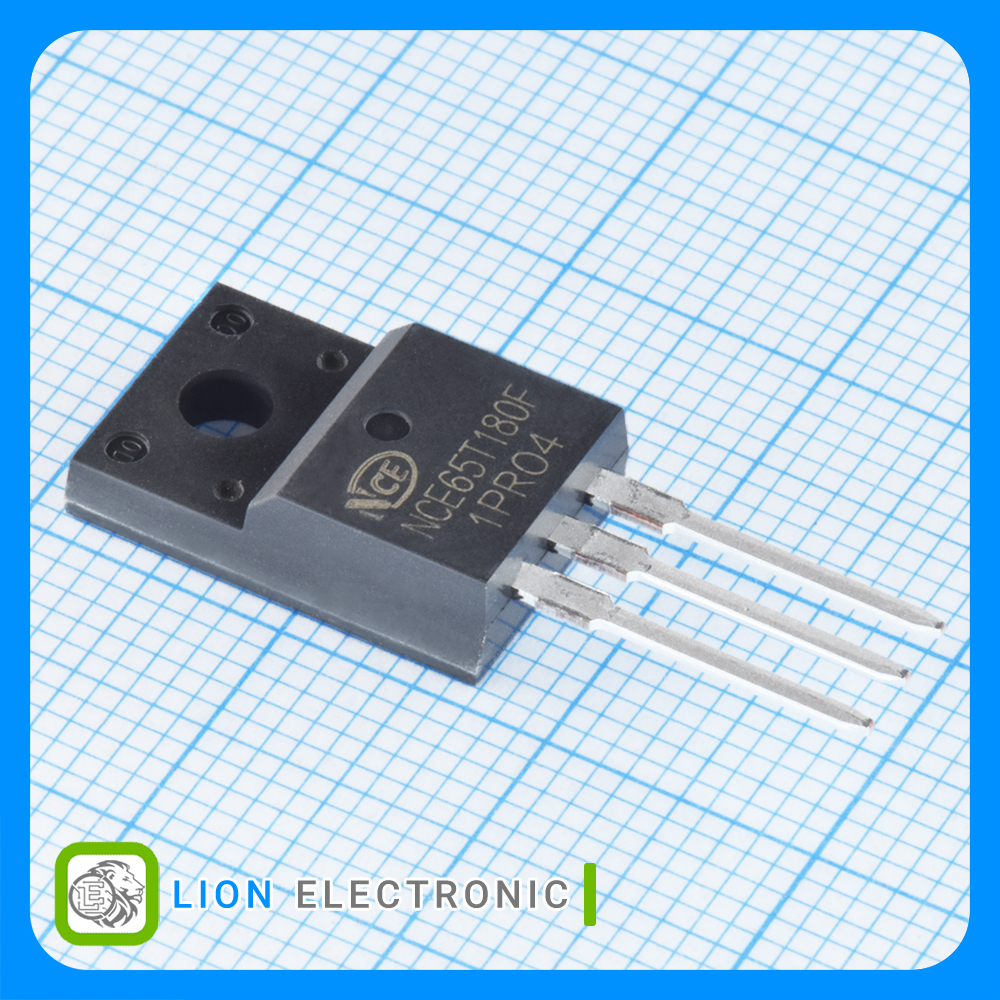

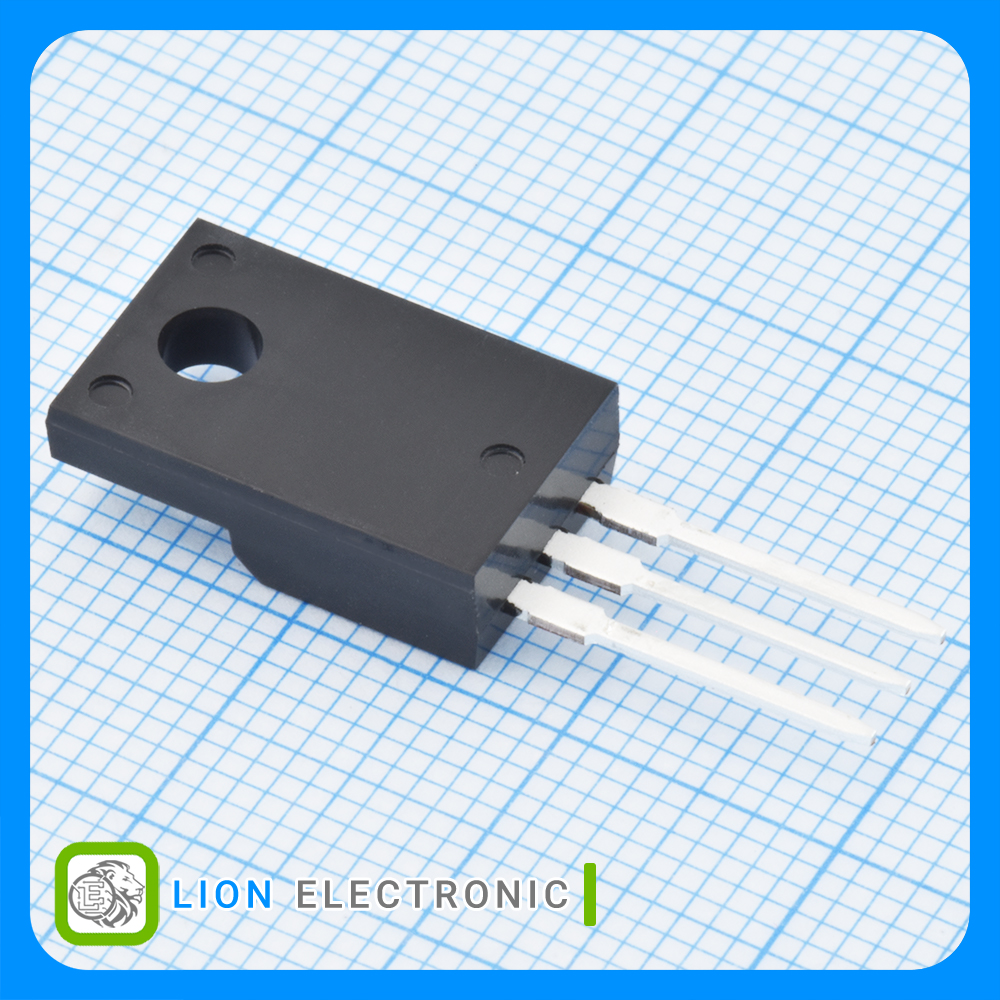

ماسفت NCE65T180F
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
-55C
Minimum Operating Temperature .
N-Channel
Transistor Polarity .
+150C
Maximum Operating Temperature .
Tube
Packaging .
Through Hole
Mounting Style .
±30V
Vgs - Gate - Source Voltage .
Single
Configuration .
650V
Vds - Drain - Source Breakdown Voltage .
3V
Vgs th - Gate - Source Threshold Voltage .
36nC
Qg - Gate Charge .
33.8W
Pd - Power Dissipation .
21A
Id - Continuous Drain Current .
150mΩ
Rds On - Drain - Source Resistance .
TO-220FP-3
Package-Case .
