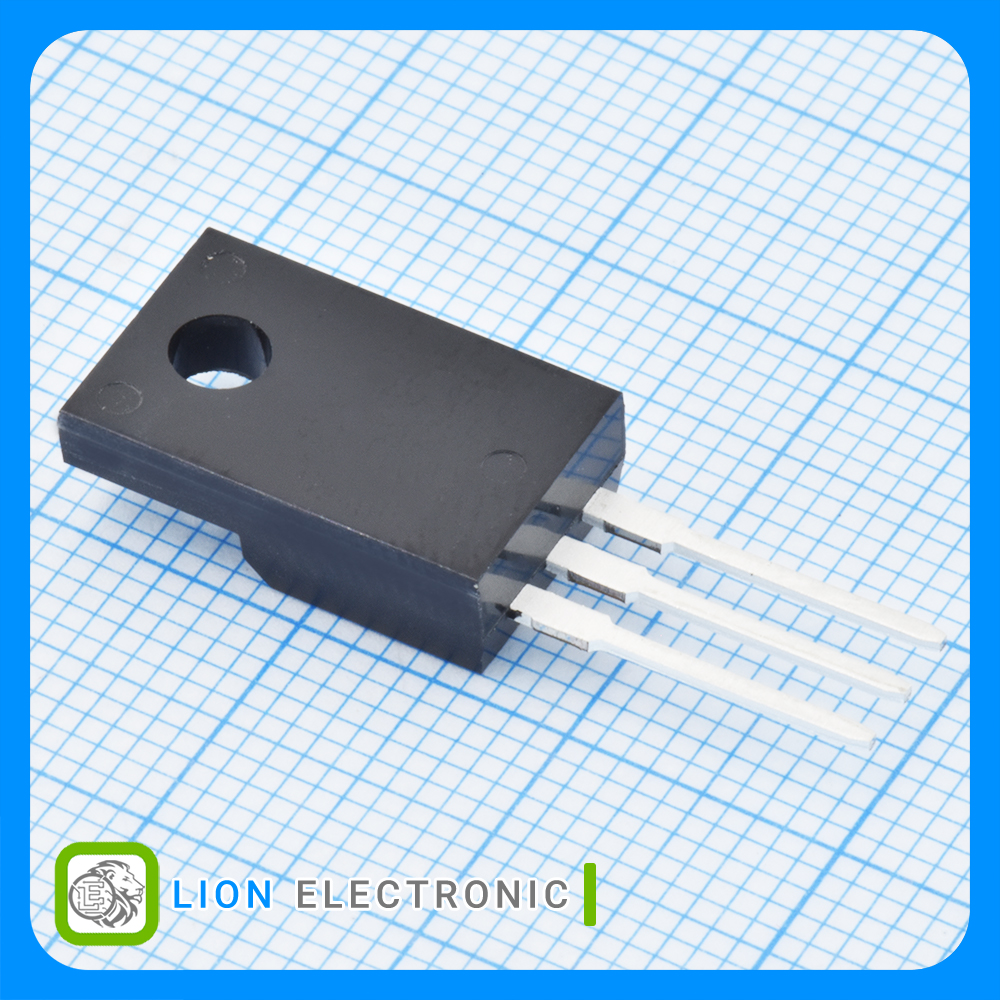

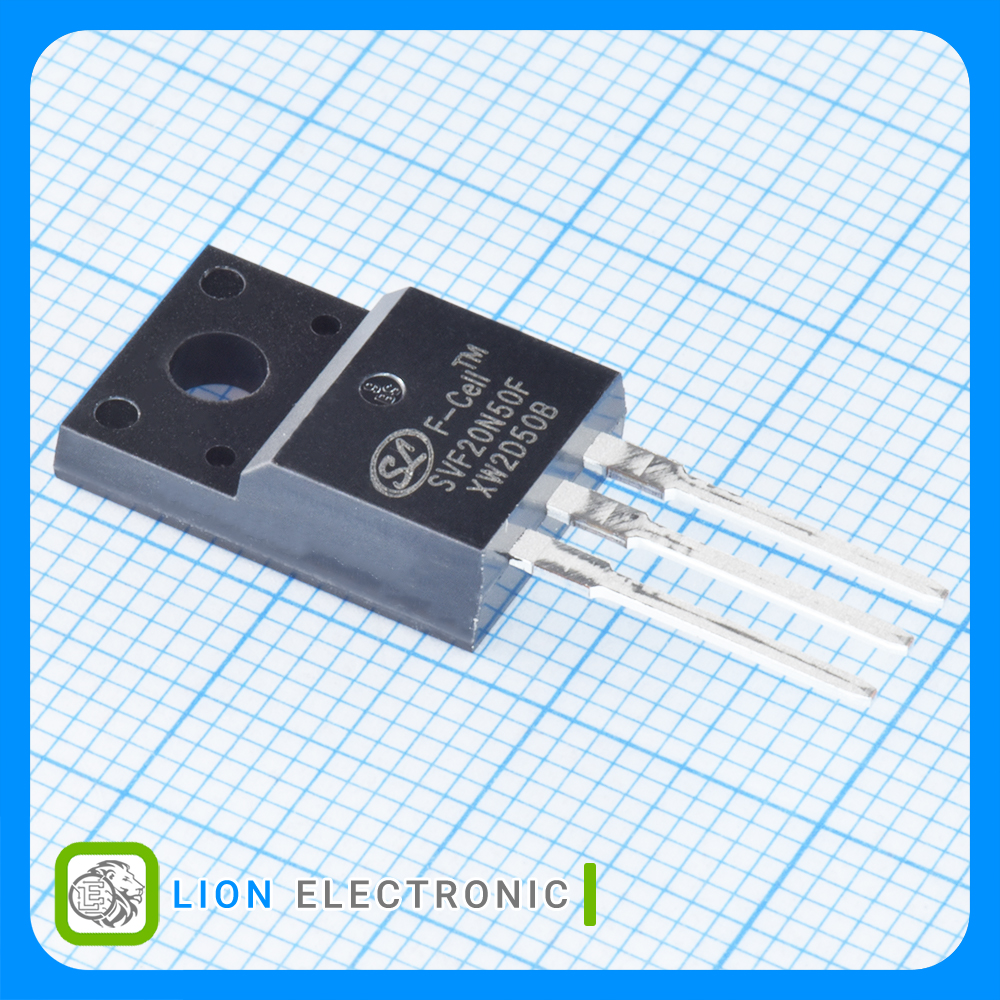

ماسفت SVF20N50F
Detail
SVF20N50F
Part Number .
3317
Lion Part .
Datasheet .
Hangzhou Silan Microelectronics Manufacture .
ماسفت 500 ولت 20 آمپر نوع N با پکیج TO-220F-3L
N-CH MOS 500V 20A TO-220F-3L
مشخصات ماسفت SVF20N50F
ماسفت SVF20N50F
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
+150C
Maximum Operating Temperature .
Tube
Packaging .
Through Hole
Mounting Style .
±30V
Vgs - Gate - Source Voltage .
Single
Configuration .
500V
Vds - Drain - Source Breakdown Voltage .
2V
Vgs th - Gate - Source Threshold Voltage .
49.5nC
Qg - Gate Charge .
20A
Id - Continuous Drain Current .
72W
Pd - Power Dissipation .
200mΩ
Rds On - Drain - Source Resistance .
TO-220FP-3
Package-Case .
