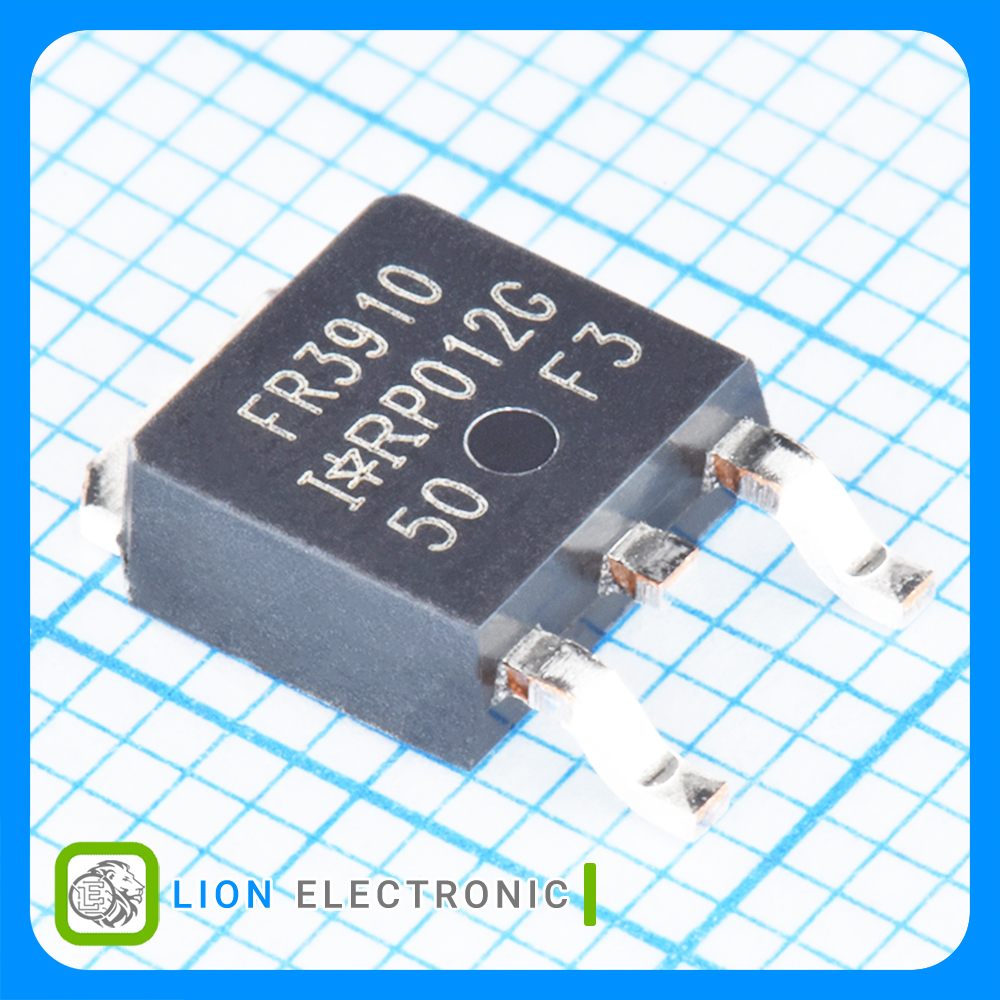

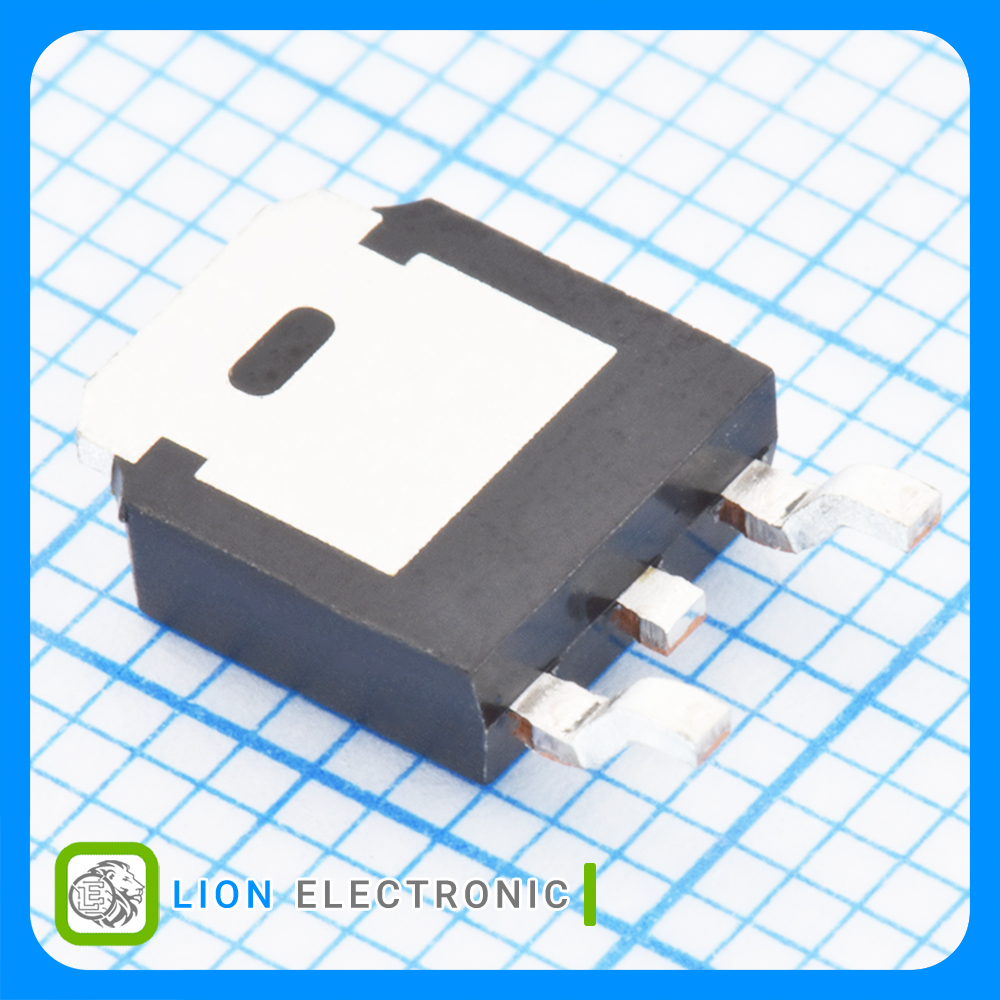

ماسفت IRFR3910TRPBF
Detail
IRFR3910TRPBF
Part Number .
3321
Lion Part .
Datasheet .
Infineon Technologies Manufacture .
ماسفت 100 ولت 16 آمپر نوع N با پکیج TO-252-3
N-CH MOS 100V 16A TO-252-3
مشخصات ماسفت IRFR3910TRPBF
ماسفت IRFR3910TRPBF
Part Number .
1
Number of Channels .
+175C
Maximum Operating Temperature .
Enhancement
Channel Mode .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
Reel
Packaging .
SMD/SMT
Mounting Style .
±20V
Vgs - Gate - Source Voltage .
100V
Vds - Drain - Source Breakdown Voltage .
Single
Configuration .
2V
Vgs th - Gate - Source Threshold Voltage .
44nC
Qg - Gate Charge .
DPAK
Package-Case .
16A
Id - Continuous Drain Current .
115mΩ
Rds On - Drain - Source Resistance .
79W
Pd - Power Dissipation .
