معرفی
ESP32-S3-WROOM-1 is a general-purpose Wi-Fi + Bluetooth MCU modules with rich peripheral interfaces, powerful neural network computing capabilities and signal processing capabilities, and are designed for artificial intelligence The two modules created in the AIoT market are suitable for a variety of application scenarios, such as wake word detection and voice command recognition, face detection and recognition, smart home, smart home appliances, smart control panels, smart speakers, etc. ESP32-S3-WROOM-1 uses PCB onboard antenna.
Features:
- Core: Xtensa® dual-core 32-bit LX7 CPU, frequency up to 240MHz
- Memories:
- 384 KB of ROM
- 512 KB of SRAM
- 16 KB of RTCSRAM
- 4 MB of Flash memory
- 8 MB of PSRAM
- Working Voltage: 3 V to 3.6 V
- Up to 36 GPIOs
- 4 strapping GPIOs
- 12 GPIOs need for flash/PSRAM
- 2*12-bit ADC (up to 20 channels)
- Communication interfaces
- 2 I2C interfaces
- 2 I2S interface
- 4 SPI interfaces
- 3 UART interfaces
- 1 USB OTG interface
- Security:
- 4096 bit OTP
- AES, SHA, RSA, ECC, RNG
- Secure Boot, Flash Encryption, Digital signature, HMAC module
- Extended temperature range: -40 to 65 °C
مشخصات ماژول وای فای و بلوتوث ESP32-S3-WROOM-1-N4R8

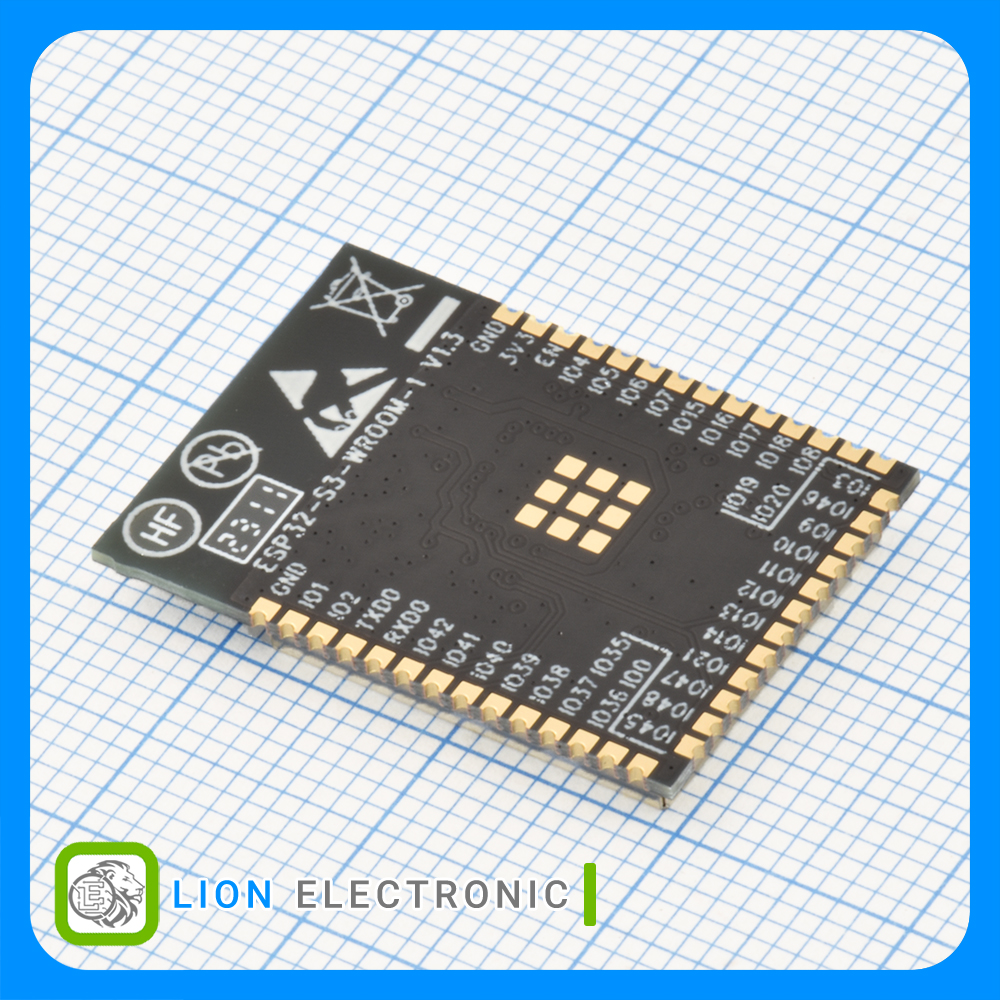

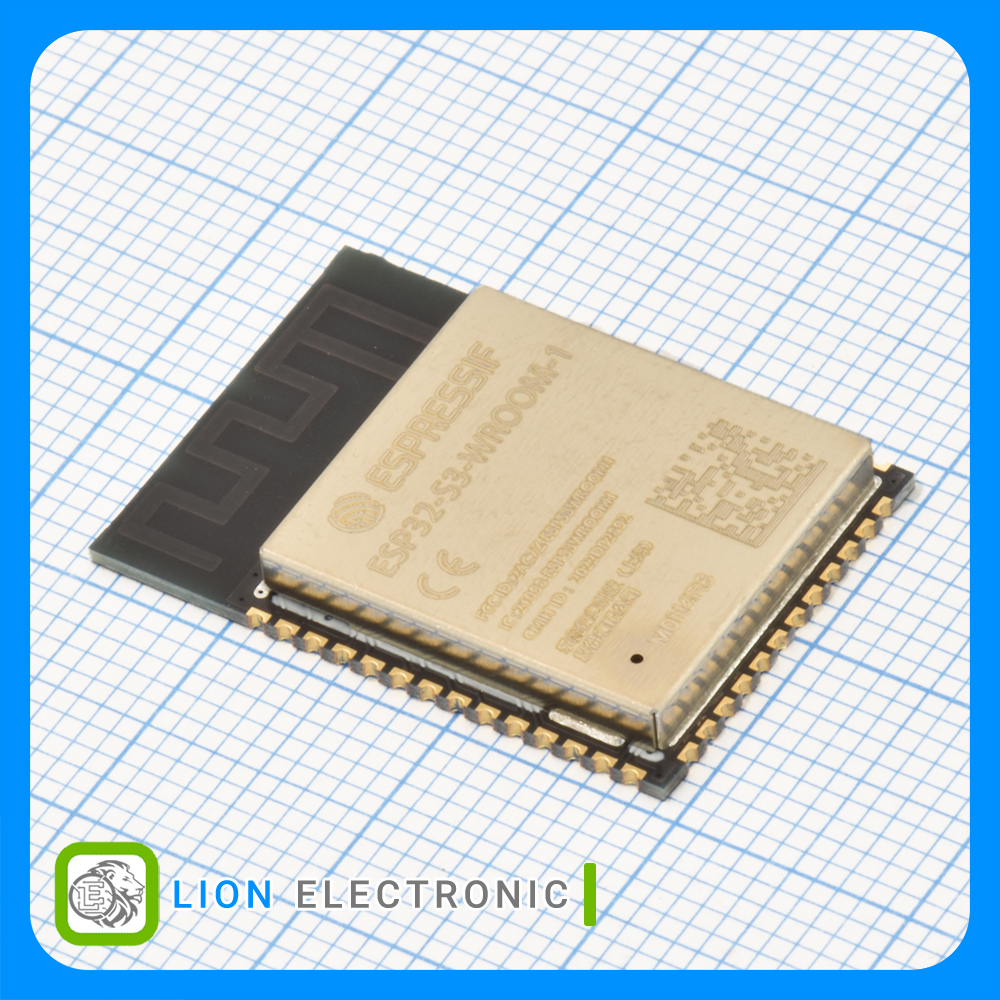

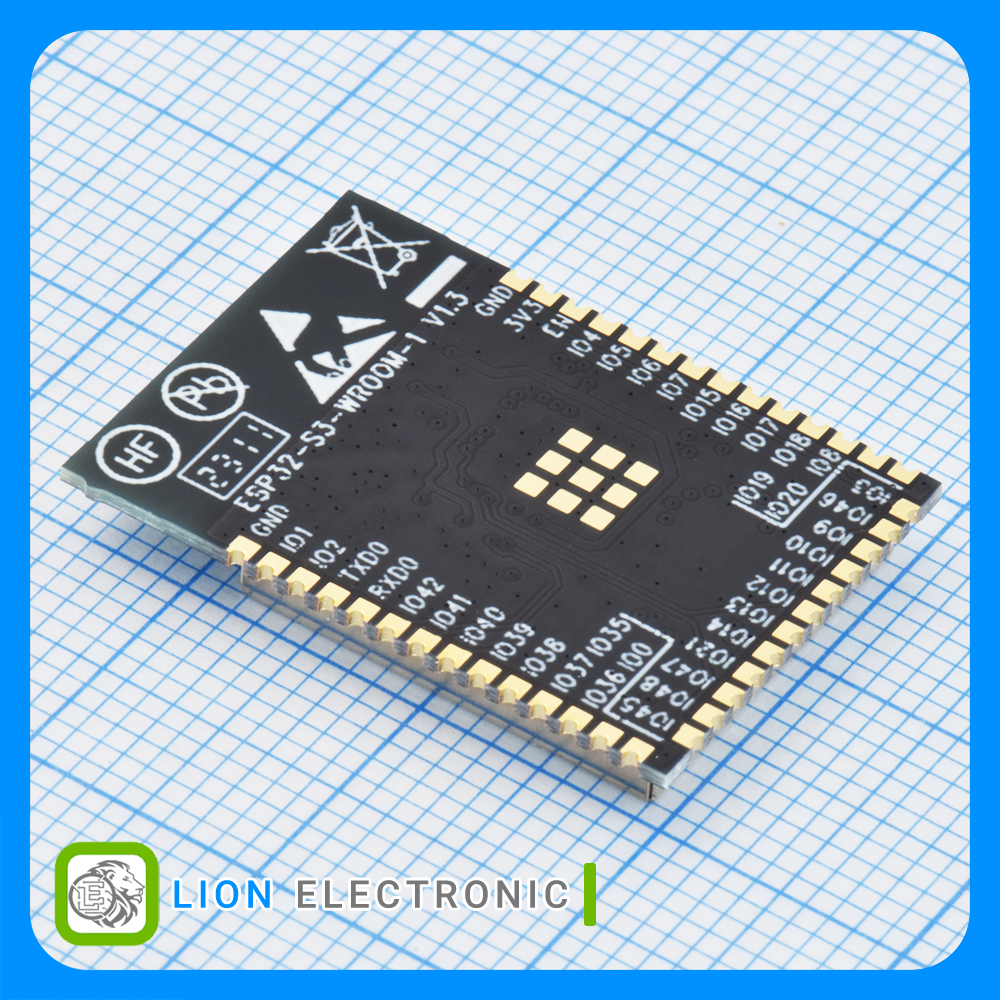

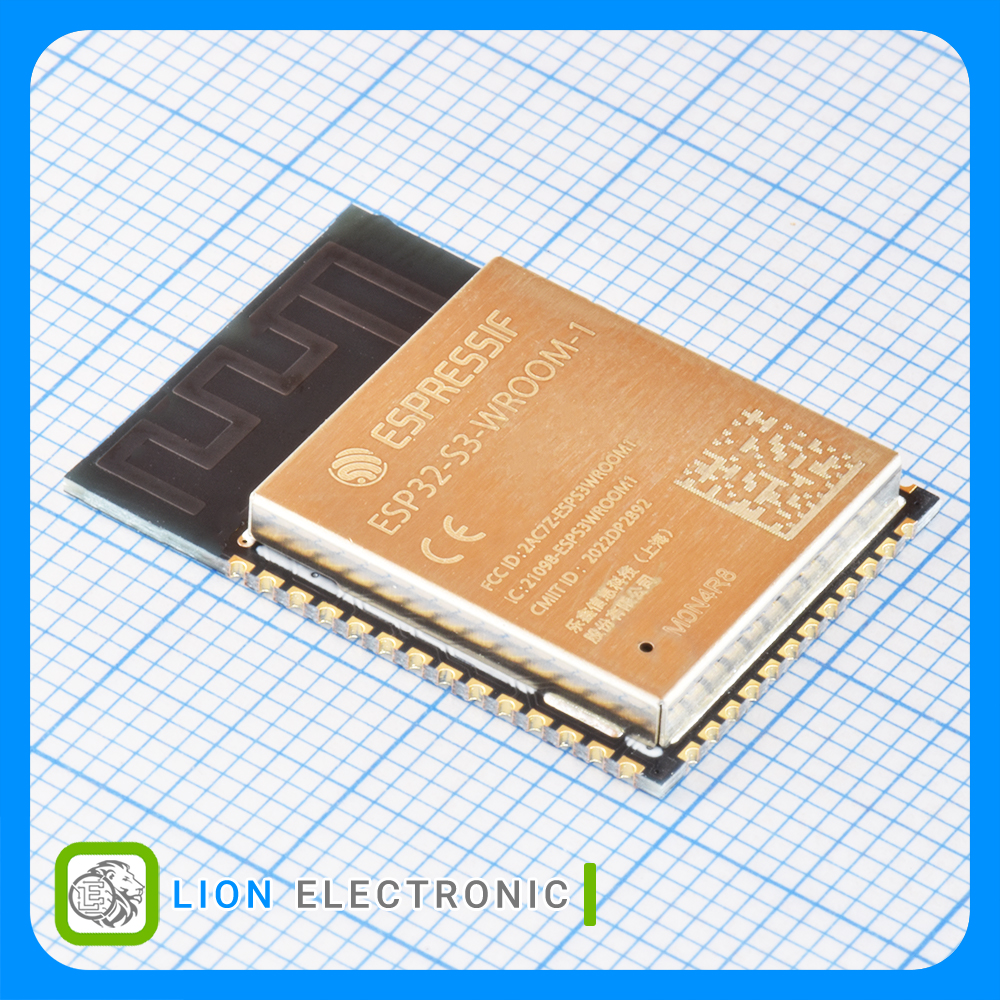

ماژول وای فای و بلوتوث ESP32-S3-WROOM-1-N4R8
Part Number .
Bulk
Packaging .
-40C
Minimum Operating Temperature .
PCB
Antenna Connector Type .
+ 65C
Maximum Operating Temperature .
36
Number of I-Os .
285mA, 286mA, 297mA, 355mA
Supply Current Transmitting .
95mA, 97mA
Supply Current Receiving .
240MHz
Frequency .
25.5mm x 18mm x 3.1mm
Dimensions .
20.5dBm
Output Power .
I2C, I2S, SPI, PWM, UART, USB
Interface Type .
3 - 3.6V
Operating Supply Voltage .
Wi-Fi & Bluetooth (LE) & MCU Module
Product .
