VBsemi
مشخصات ماسفت P1504EDG-VB

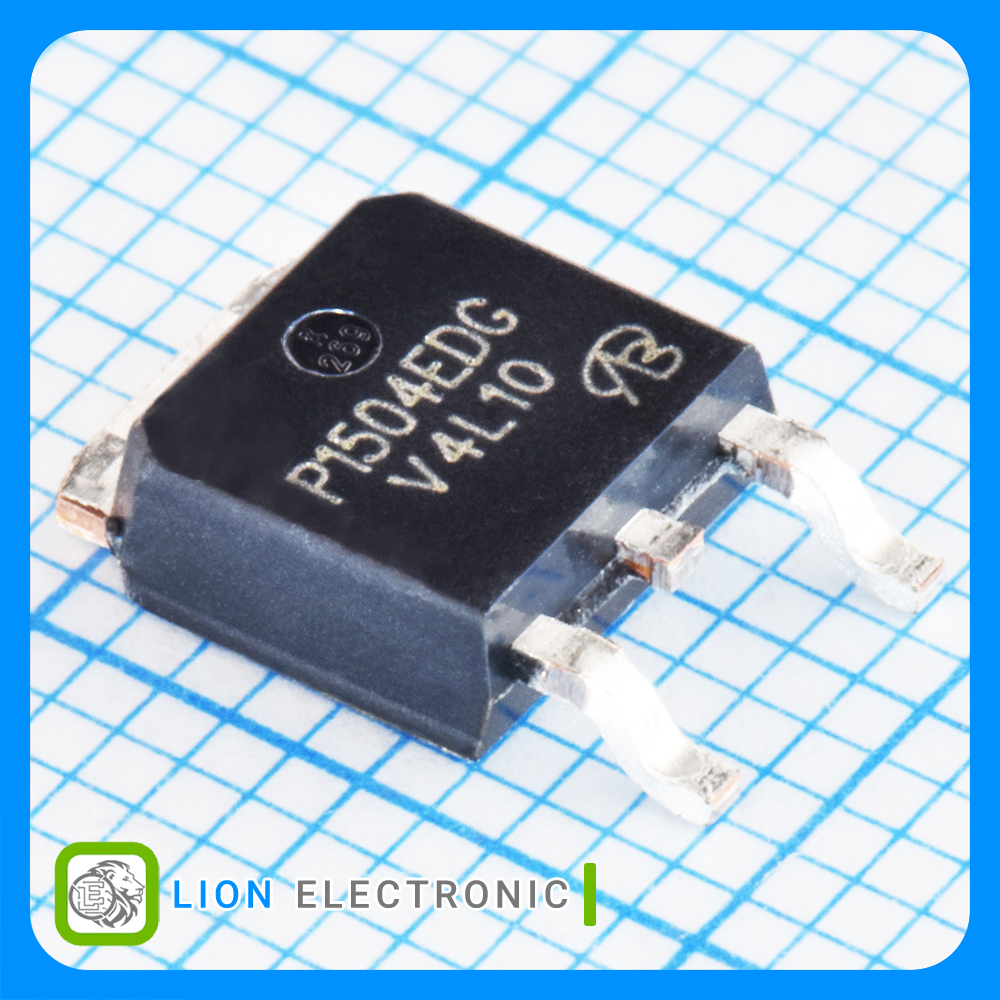

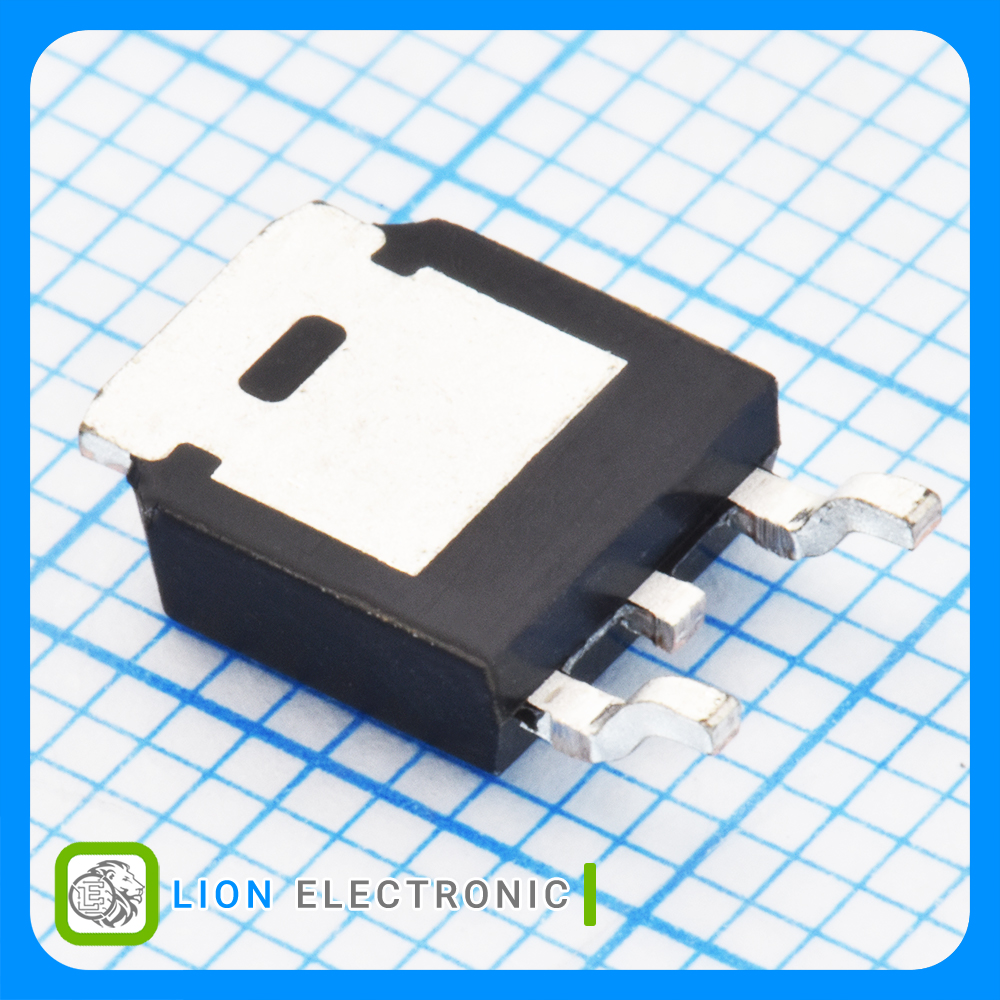

ماسفت P1504EDG-VB
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
+175C
Maximum Operating Temperature .
-55C
Minimum Operating Temperature .
-50A
Id - Continuous Drain Current .
-40V
Vds - Drain - Source Breakdown Voltage .
Reel
Packaging .
-1.5V
Vgs th - Gate - Source Threshold Voltage .
P-Channel
Transistor Polarity .
SMD/SMT
Mounting Style .
±20V
Vgs - Gate - Source Voltage .
Single
Configuration .
12mΩ
Rds On - Drain - Source Resistance .
60nC
Qg - Gate Charge .
DPAK
Package-Case .
136W
Pd - Power Dissipation .
