TOSHIBA
مشخصات ماسفت TK14V65W,LQ

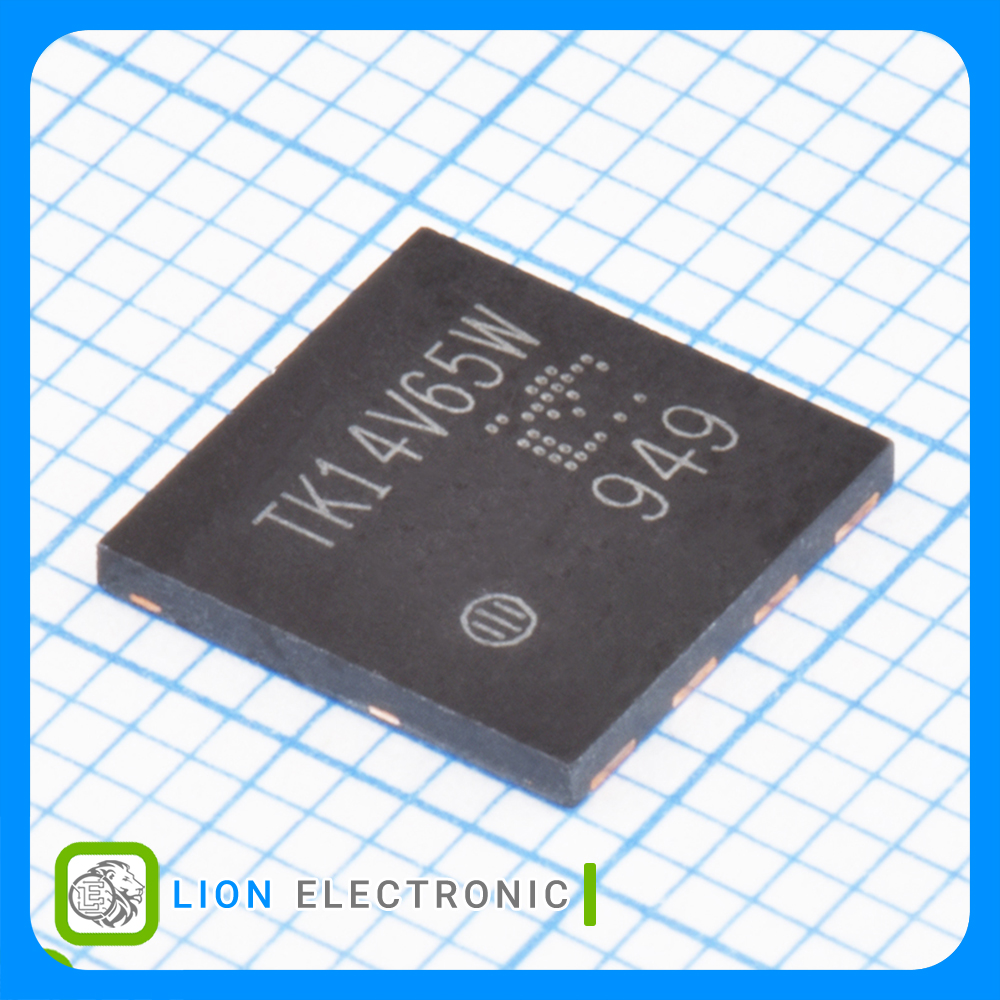

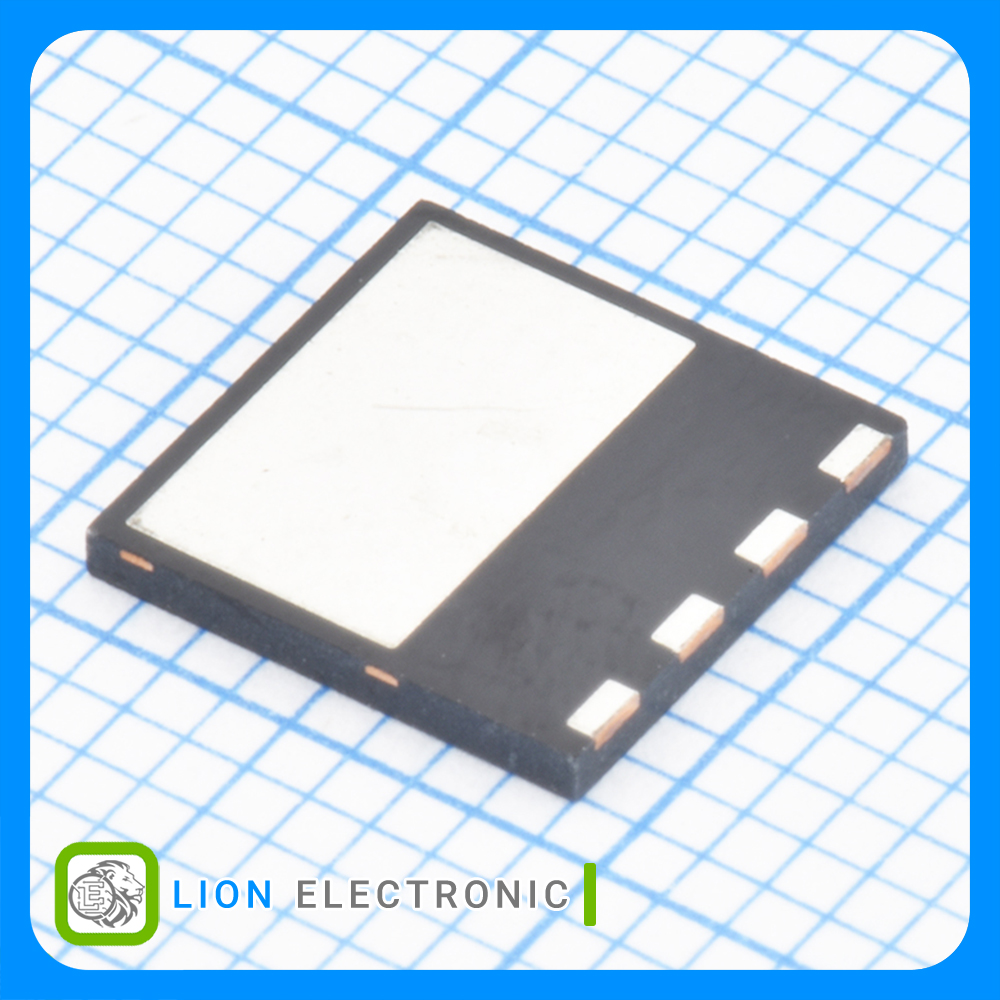

ماسفت TK14V65W,LQ
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
+150C
Maximum Operating Temperature .
Reel
Packaging .
SMD/SMT
Mounting Style .
±30V
Vgs - Gate - Source Voltage .
Single
Configuration .
650V
Vds - Drain - Source Breakdown Voltage .
2.5V
Vgs th - Gate - Source Threshold Voltage .
35nC
Qg - Gate Charge .
DFN8x8-5
Package-Case .
13.7A
Id - Continuous Drain Current .
250mΩ
Rds On - Drain - Source Resistance .
139W
Pd - Power Dissipation .
