TOSHIBA
مشخصات ماسفت TPH1R204PL1,LQ

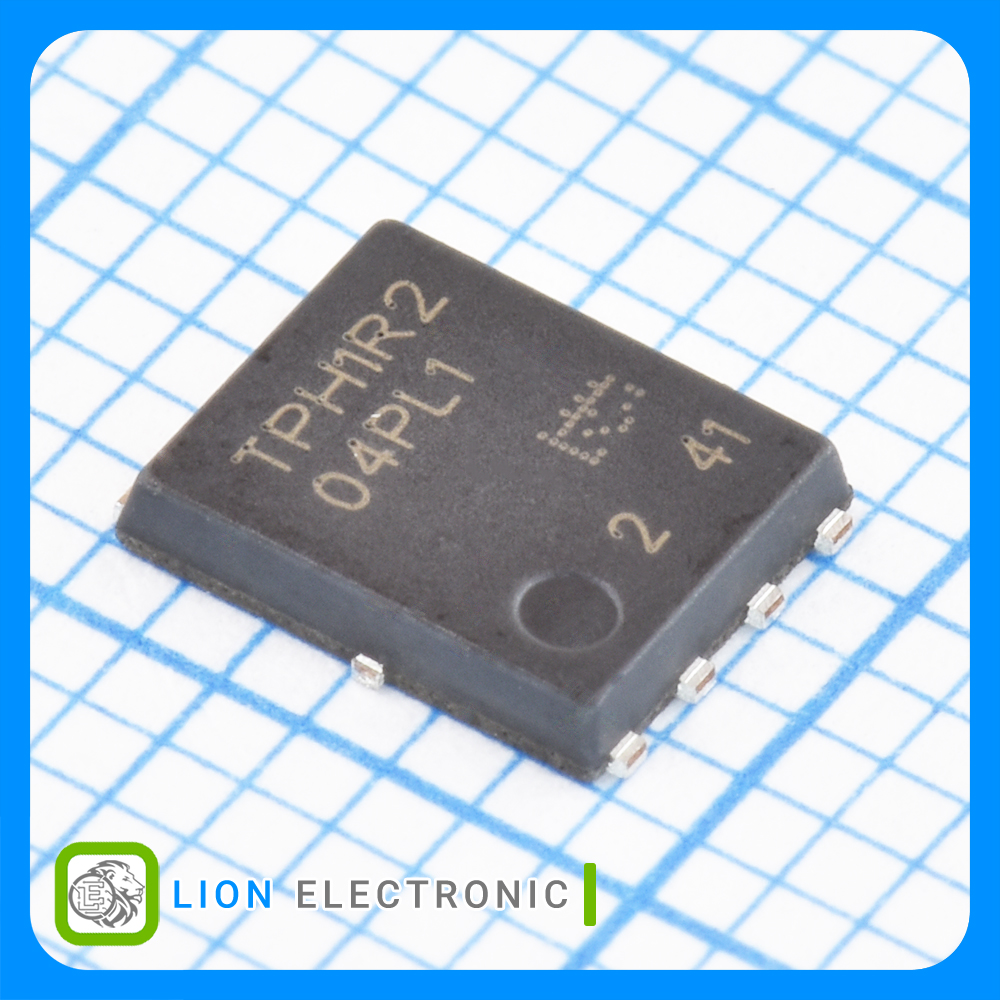

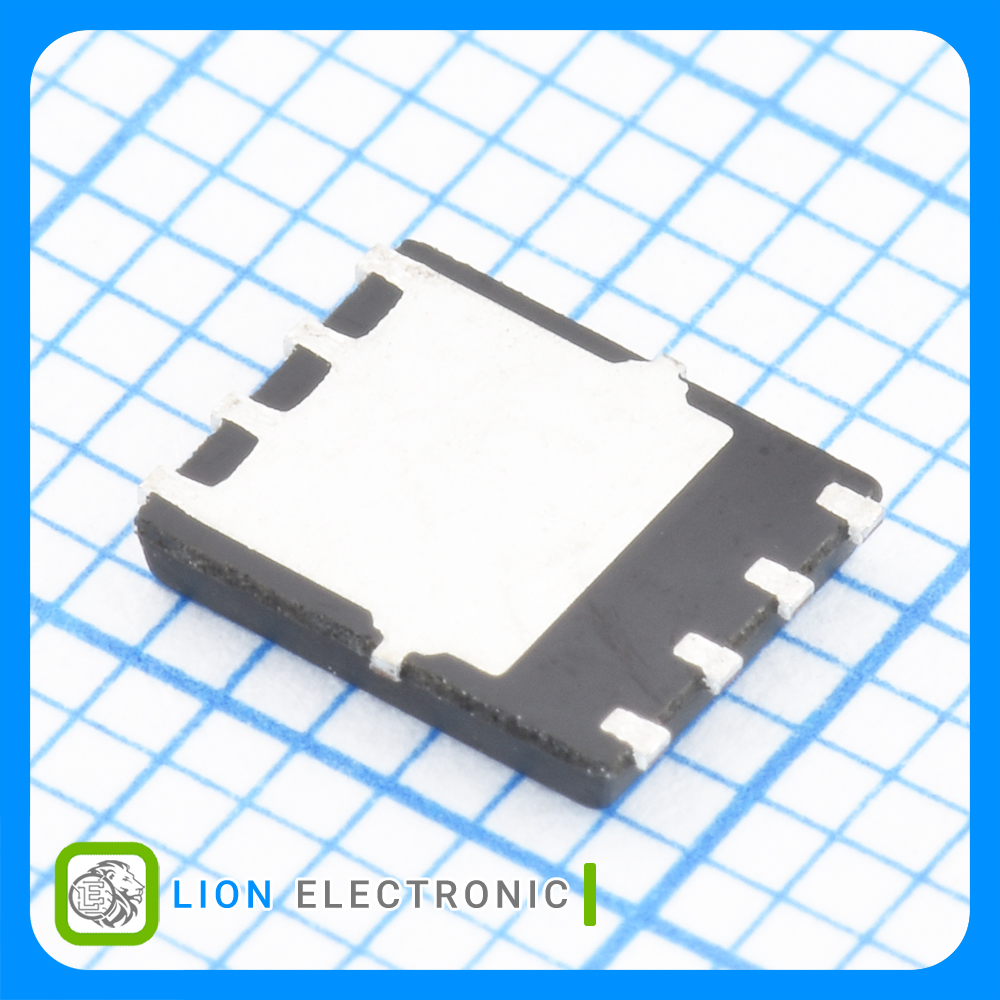

ماسفت TPH1R204PL1,LQ
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
+175C
Maximum Operating Temperature .
-55C
Minimum Operating Temperature .
N-Channel
Transistor Polarity .
Reel
Packaging .
SMD/SMT
Mounting Style .
1mΩ
Rds On - Drain - Source Resistance .
±20V
Vgs - Gate - Source Voltage .
40V
Vds - Drain - Source Breakdown Voltage .
Single
Configuration .
1.4V
Vgs th - Gate - Source Threshold Voltage .
74nC
Qg - Gate Charge .
150A
Id - Continuous Drain Current .
170W
Pd - Power Dissipation .
SOIC-8
Package-Case .
