Espressif
معرفی

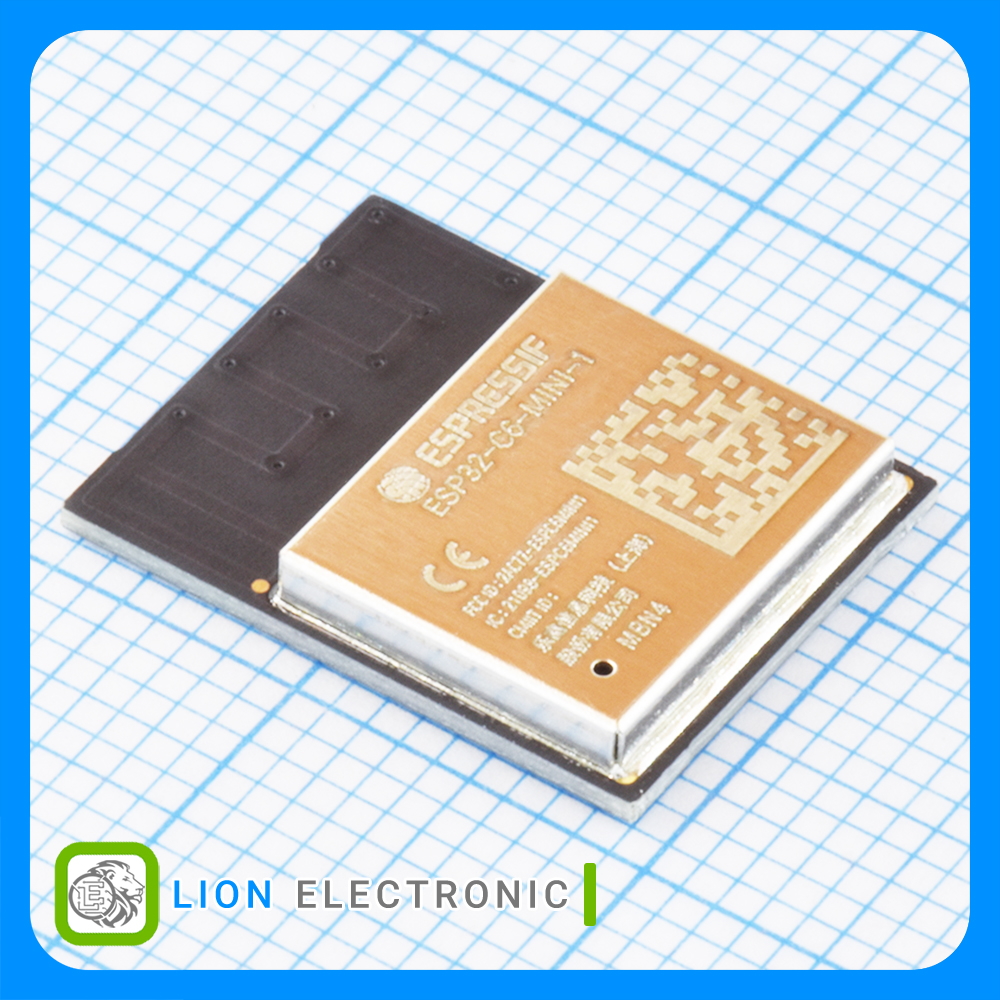

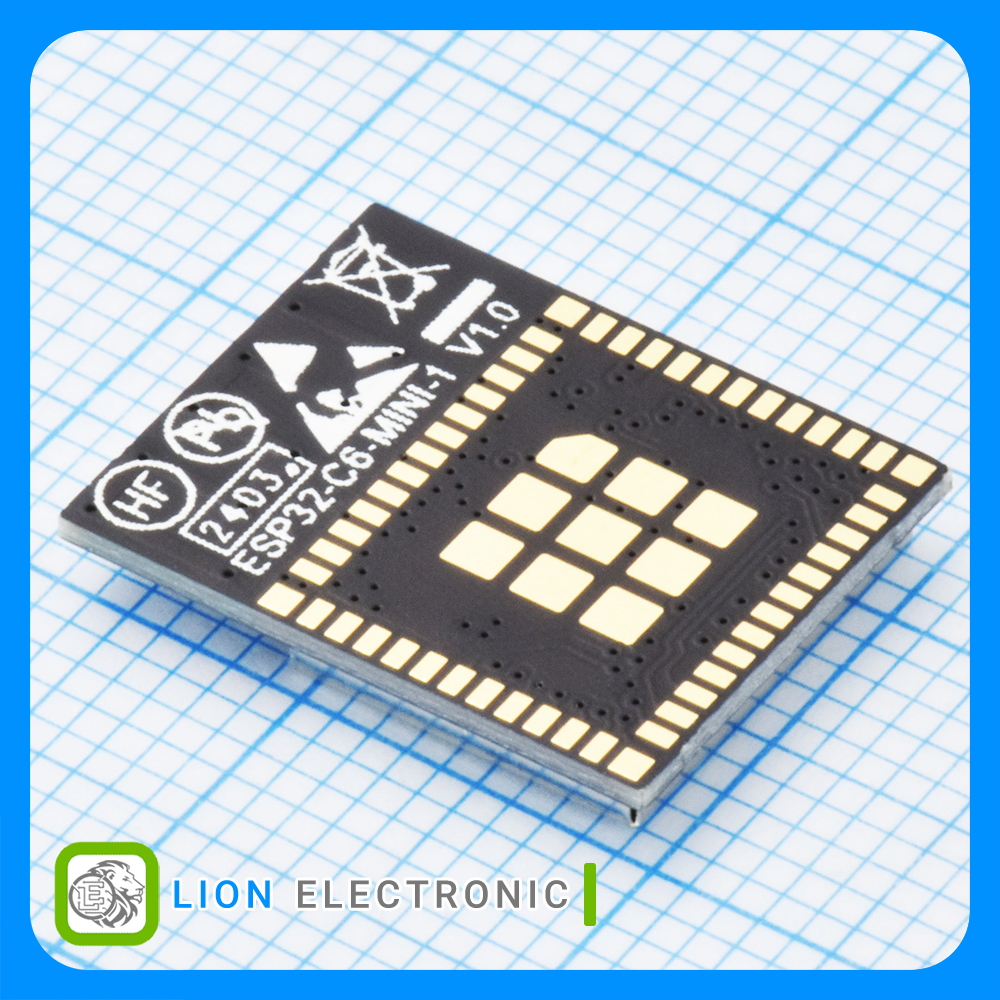

ESP32-C6-MINI-1-N4 is a general-purpose Wi-Fi 4/Wi-Fi 6 and Bluetooth LE module. This module features a rich set of peripherals and a small size, which makes it an ideal choice for smart home, industrial automation, health care, consumer electronics, etc
ESP32-C6-MINI-1-N4 is based on ESP32-C6, It has 22 GPIOs, and supports UART, SPI, I2C, LED OWM, RMT, etc.
Features:
- Core: 32-bit RISC-V single-core processor, frequency up to 160MHz
- Memories:
- 320 KB of ROM
- 512 KB of SRAM
- 4 MB of Flash memory
- Working Voltage: 3 V to 3.6 V
- Up to 22 GPIOs
- 5 strapping GPIOs
- 1*12-bit ADC (up to 7 channels)
- Communication interfaces
- 1 I2C and 1 Low-power I2C interfaces
- 1 SPI interfaces
- 2 UART and 1 Low-power UART interfaces
- Security:
- 1024 bit OTP
- AES, SHA, RSA, RNG
- Secure_Boot,Flash_Encryption,Digital_signature,HMAC_module
- Extended temperature range: -40 to 85 °C
مشخصات ماژول وای فای و بلوتوث ESP32-C6-MINI-1-N4
ماژول وای فای و بلوتوث ESP32-C6-MINI-1-N4
Part Number .
Reel
Packaging .
-40C
Minimum Operating Temperature .
PCB
Antenna Connector Type .
+85C
Maximum Operating Temperature .
22
Number of I-Os .
13.2mm x 16.6mm x 2.4mm
Dimensions .
251mA, 280mA, 295mA, 316mA, 382mA
Supply Current Transmitting .
78mA, 82mA
Supply Current Receiving .
160MHz
Frequency .
-
Output Power .
3 - 3.6V
Operating Supply Voltage .
Wi-Fi & Bluetooth (LE) & 802.15.4 & MCU Module
Product .
SPI
Interface Type .
