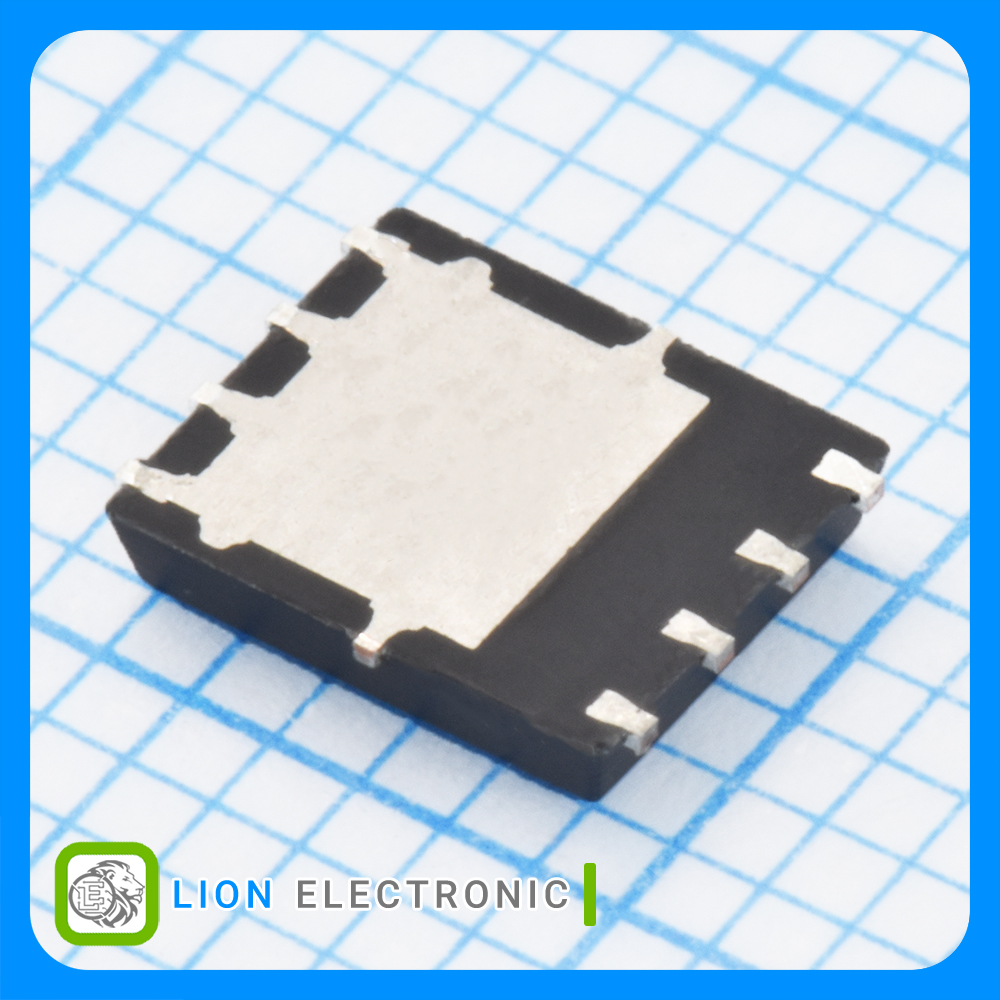

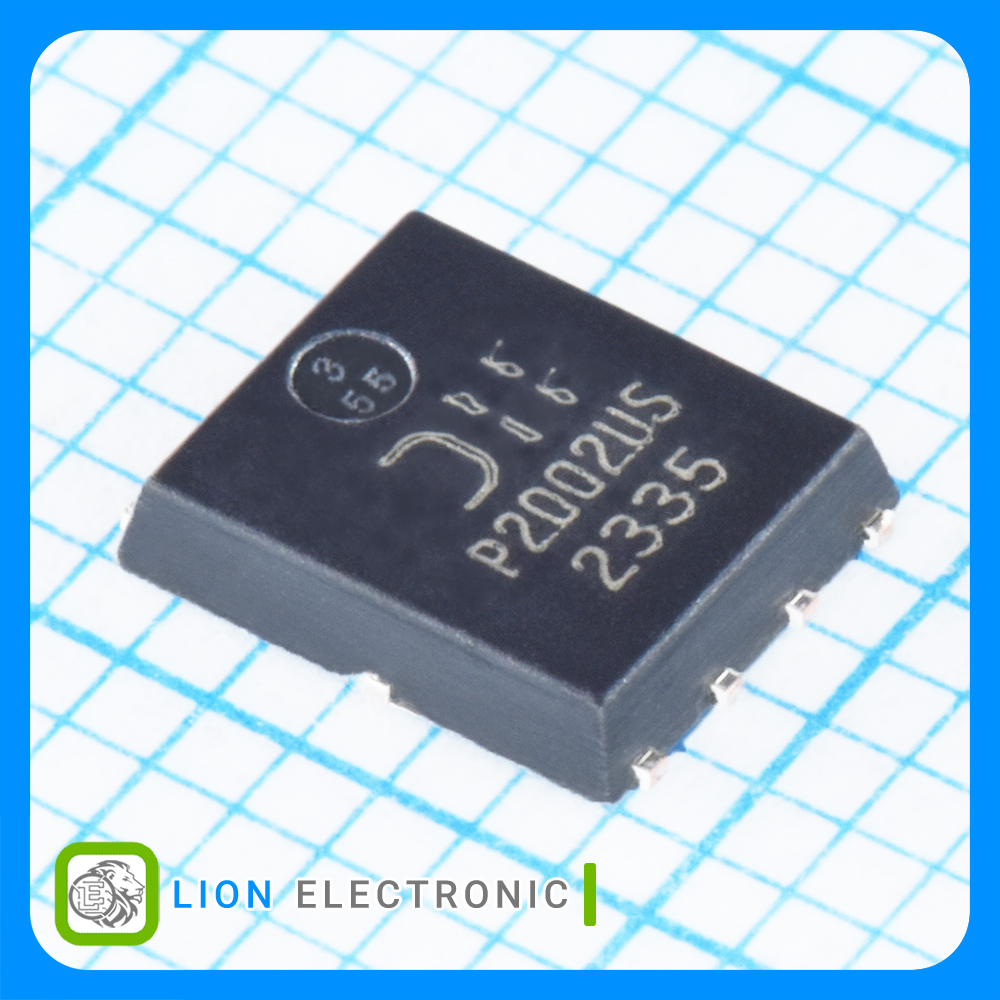

ماسفت DMP2002UPS
Detail
DMP2002UPS
Part Number .
4164
Lion Part .
Datasheet .
Diodes Incorporated Manufacture .
ماسفت 20 ولت 60 آمپر نوع P با پکیج PowerDI5060-8
P-CH MOS 20V 60A PowerDI5060-8
مشخصات ماسفت DMP2002UPS
ماسفت DMP2002UPS
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
-60A
Id - Continuous Drain Current .
-55C
Minimum Operating Temperature .
+150C
Maximum Operating Temperature .
Reel
Packaging .
P-Channel
Transistor Polarity .
SMD/SMT
Mounting Style .
±12V
Vgs - Gate - Source Voltage .
-20V
Vds - Drain - Source Breakdown Voltage .
-500mV
Vgs th - Gate - Source Threshold Voltage .
1.3mΩ
Rds On - Drain - Source Resistance .
Single
Configuration .
104W
Pd - Power Dissipation .
476nC
Qg - Gate Charge .
PowerDI5060-8(Type K)
Package-Case .
