BT136-600E
Detail
BT136-600E
Part Number .
44
Lion Part .
Datasheet .
NXP Semiconductors Manufacture .
ترایاک 600 ولت 4 آمپر با پکیج TO-220-3

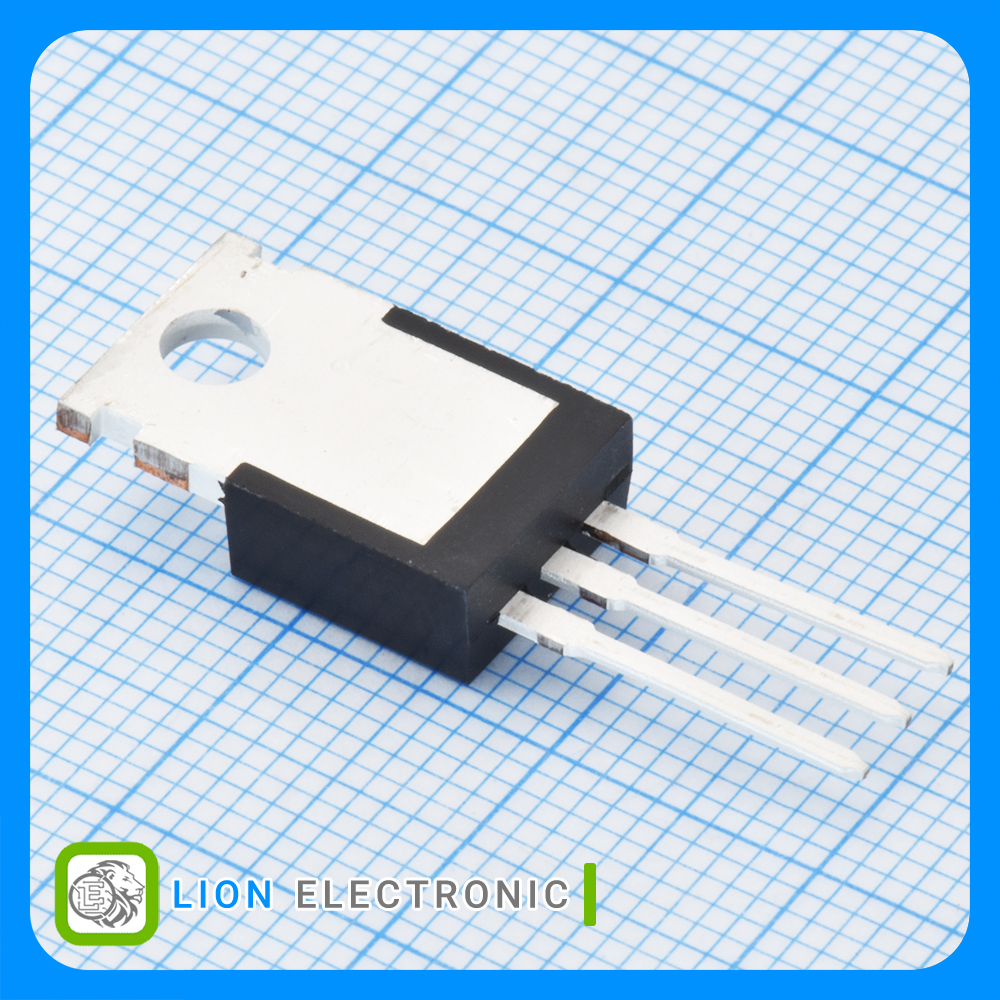

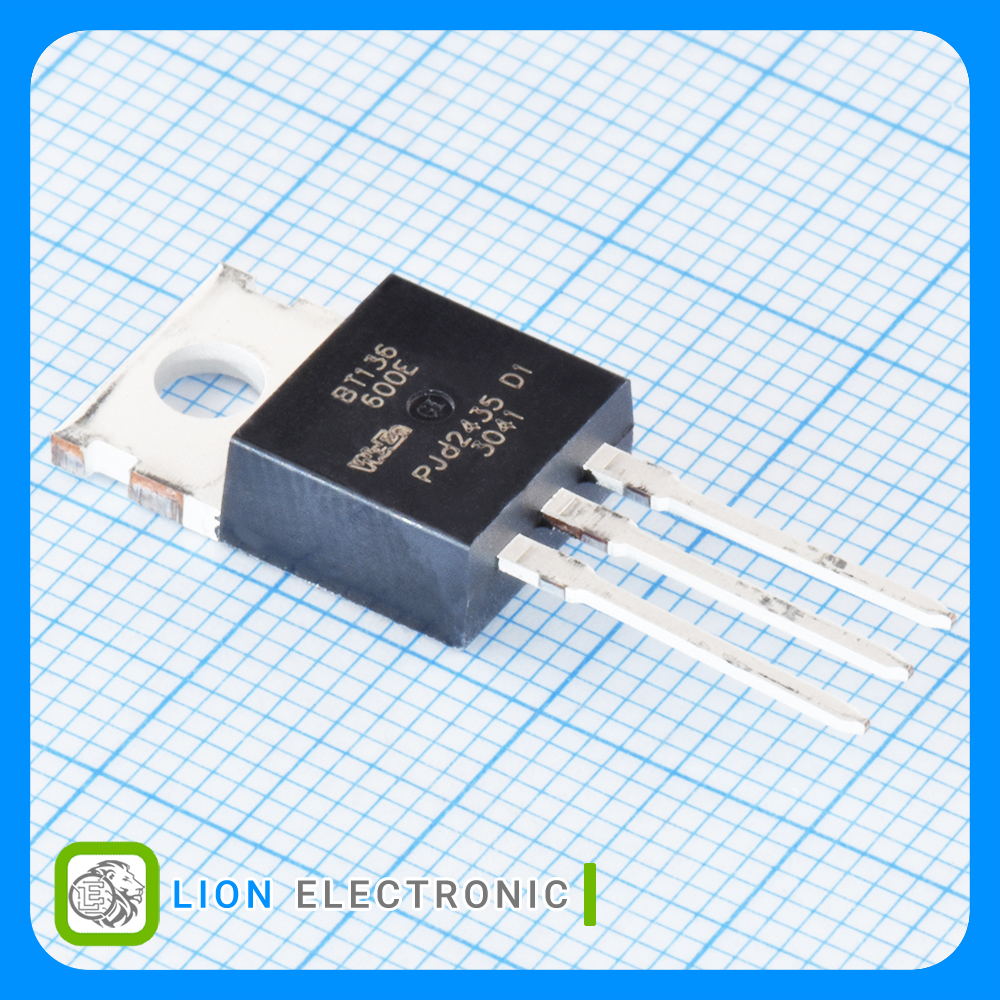

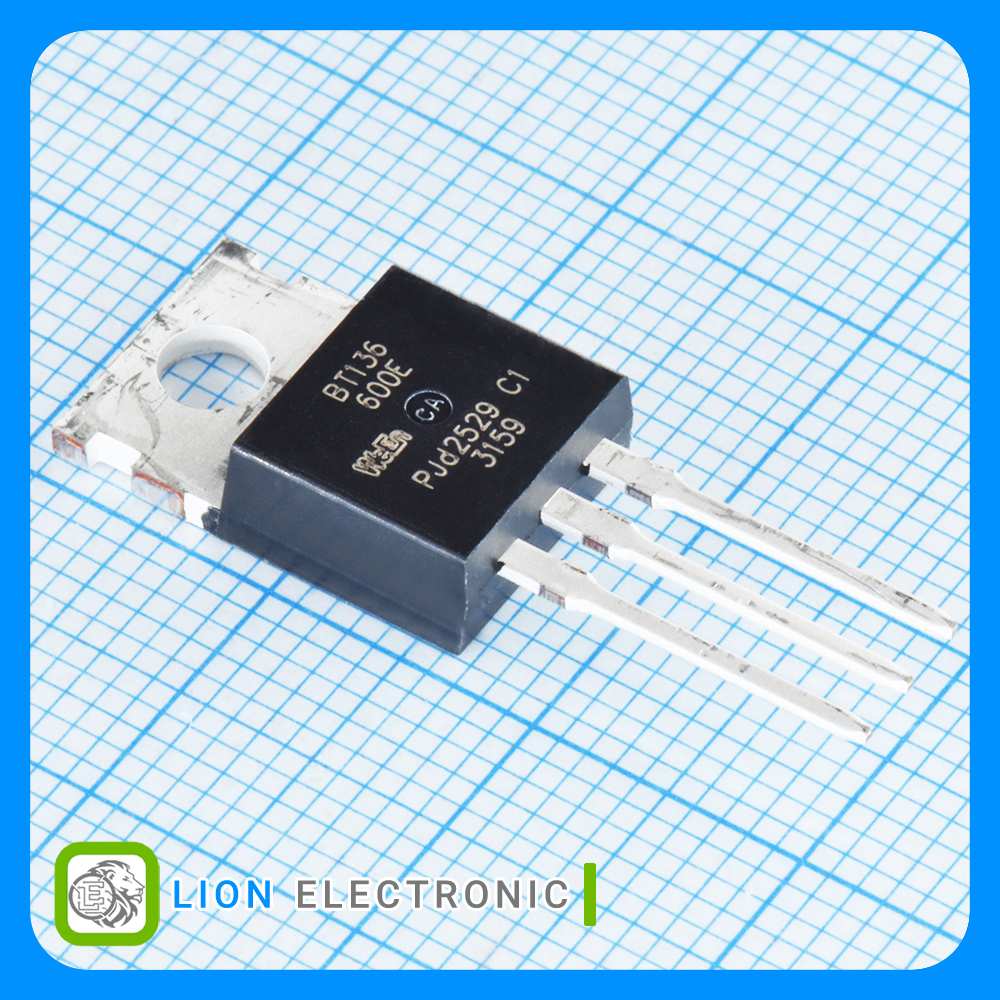

Triac 600V, 4A with TO-220-3 Package
مشخصات BT136-600E
BT136-600E
Part Number .
27A
Non Repetitive On-State Current .
4A
On-State RMS Current - It RMS .
15mA
Holding Current Ih Max .
100uA
Off-State Leakage Current @ VDRM IDRM .
1V
Gate Trigger Voltage - Vgt .
-40C
Minimum Operating Temperature .
600V
Rated Repetitive Off-State Voltage VDRM .
25mA
Gate Trigger Current - Igt .
1.7V
On-State Voltage .
+125C
Maximum Operating Temperature .
Tube
Packaging .
Through Hole
Mounting Style .
TO-220-3
Package-Case .
