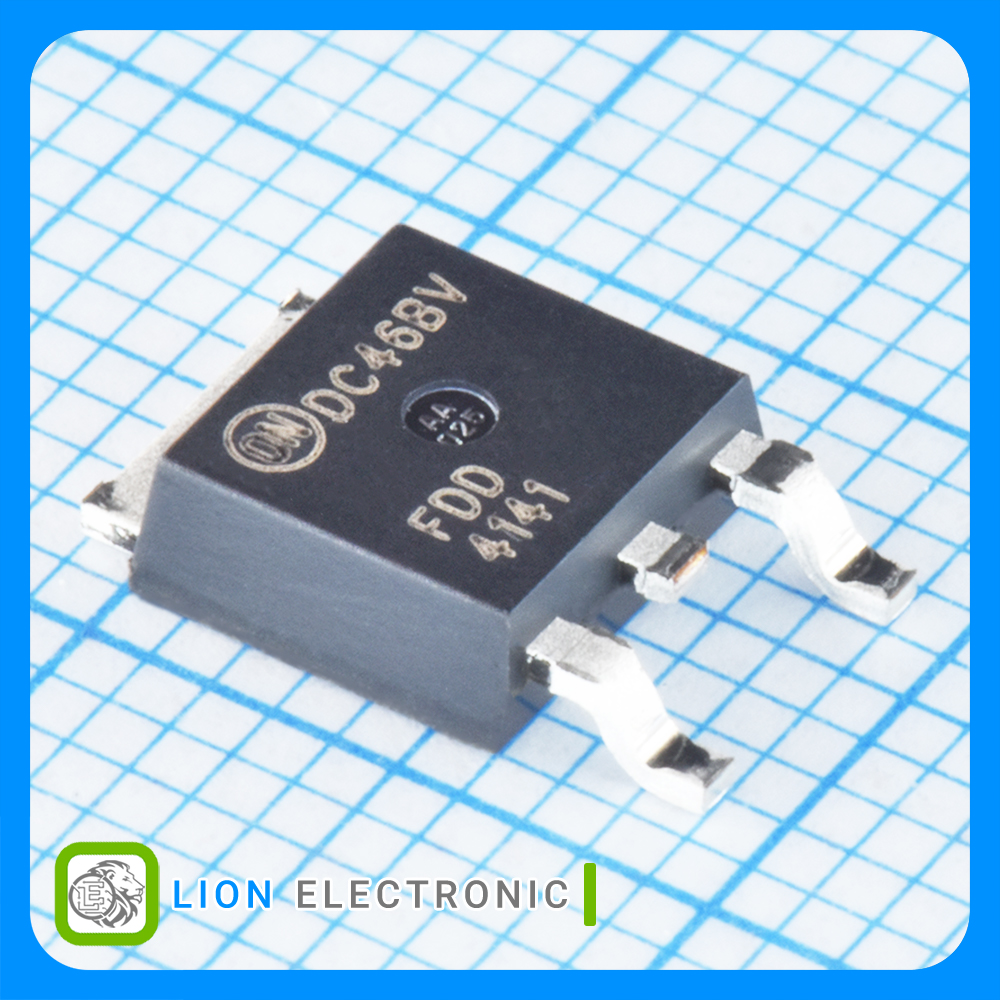

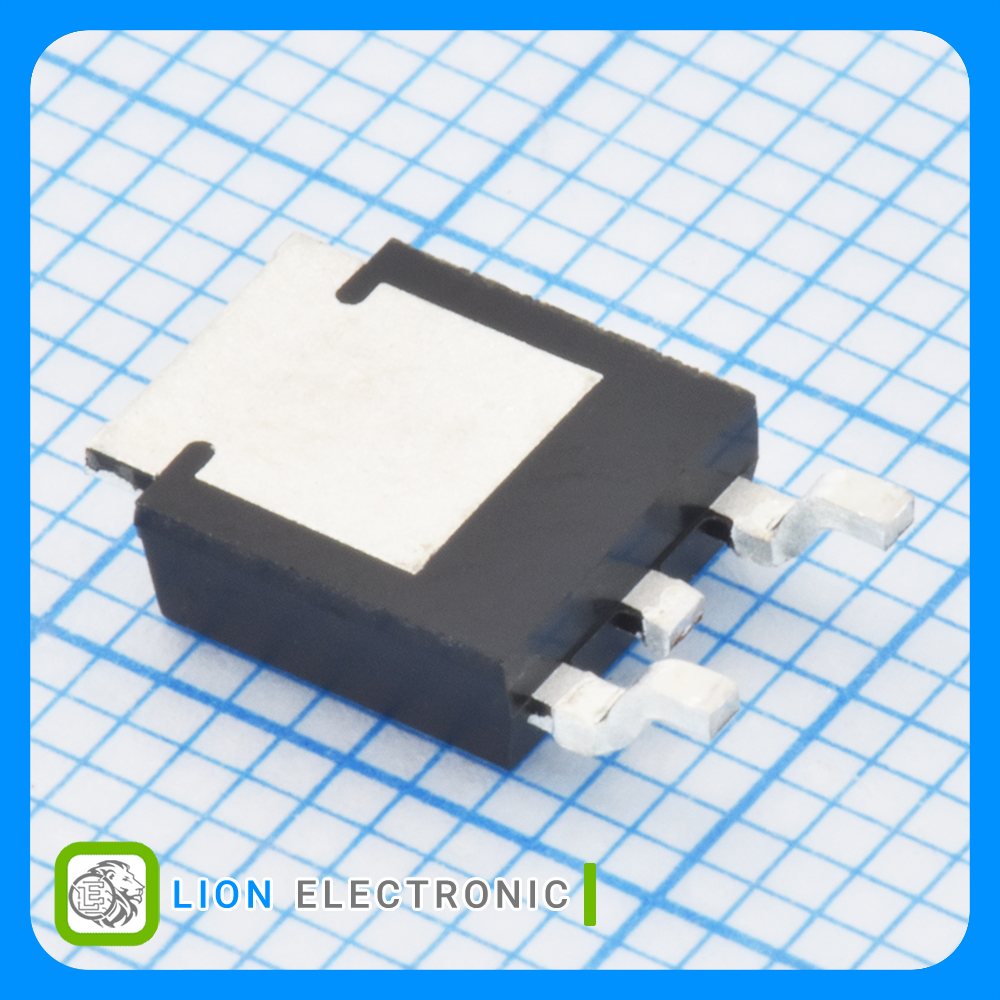

ماسفت FDD4141-F085
Detail
FDD4141-F085
Part Number .
4578
Lion Part .
Datasheet .
ON Semiconductor Manufacture .
ماسفت 40 ولت 50 آمپر نوع P با پکیج D-PAK
P-CH MOS 40V 50A D-PAK
مشخصات ماسفت FDD4141-F085
ماسفت FDD4141-F085
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
+175C
Maximum Operating Temperature .
-55C
Minimum Operating Temperature .
-1.8V
Vgs th - Gate - Source Threshold Voltage .
-50A
Id - Continuous Drain Current .
-40V
Vds - Drain - Source Breakdown Voltage .
Reel
Packaging .
P-Channel
Transistor Polarity .
SMD/SMT
Mounting Style .
±20V
Vgs - Gate - Source Voltage .
Single
Configuration .
17mΩ
Rds On - Drain - Source Resistance .
36nC
Qg - Gate Charge .
DPAK
Package-Case .
69W
Pd - Power Dissipation .
