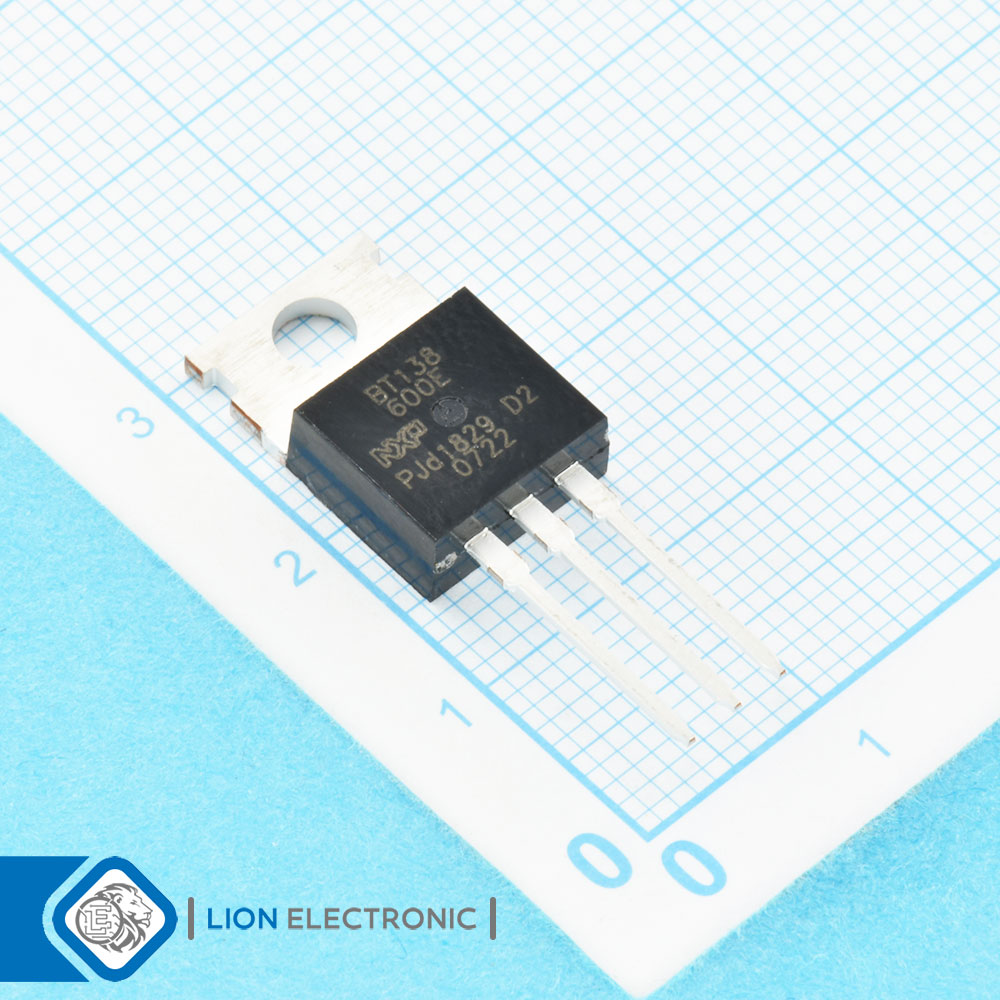

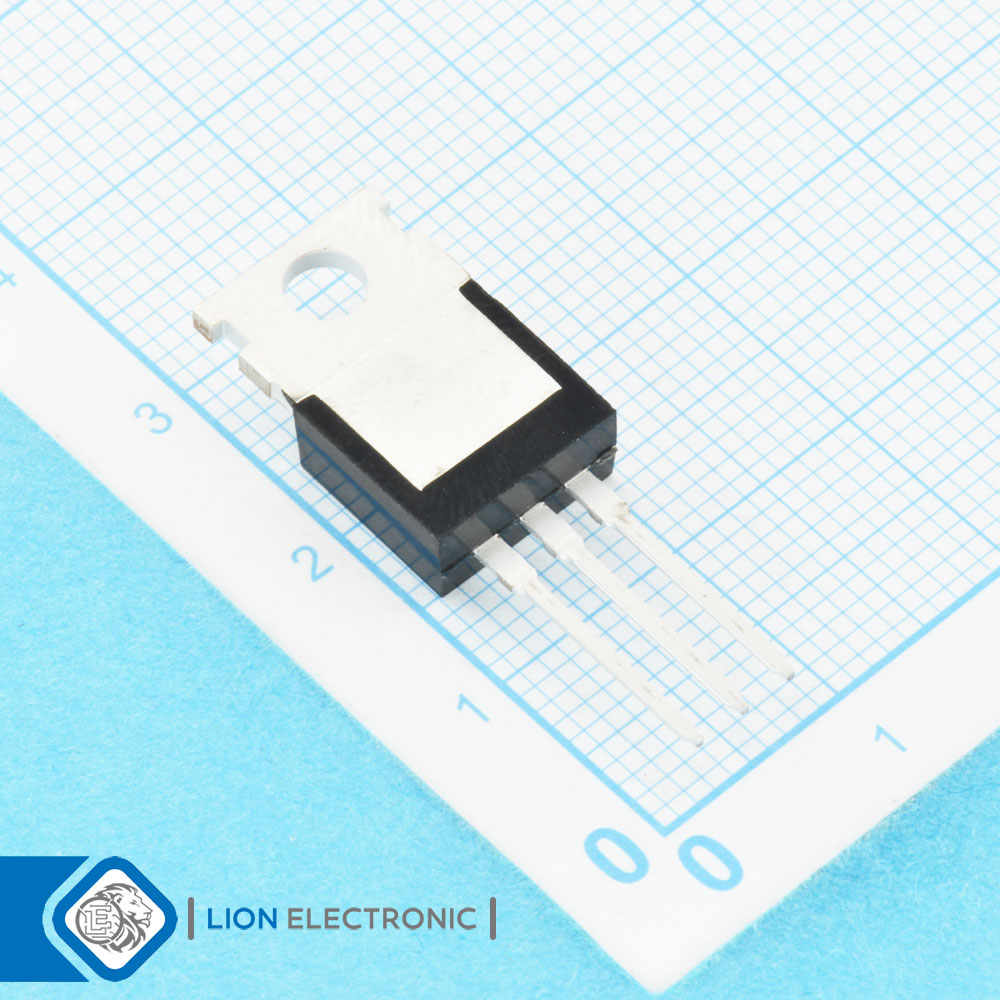

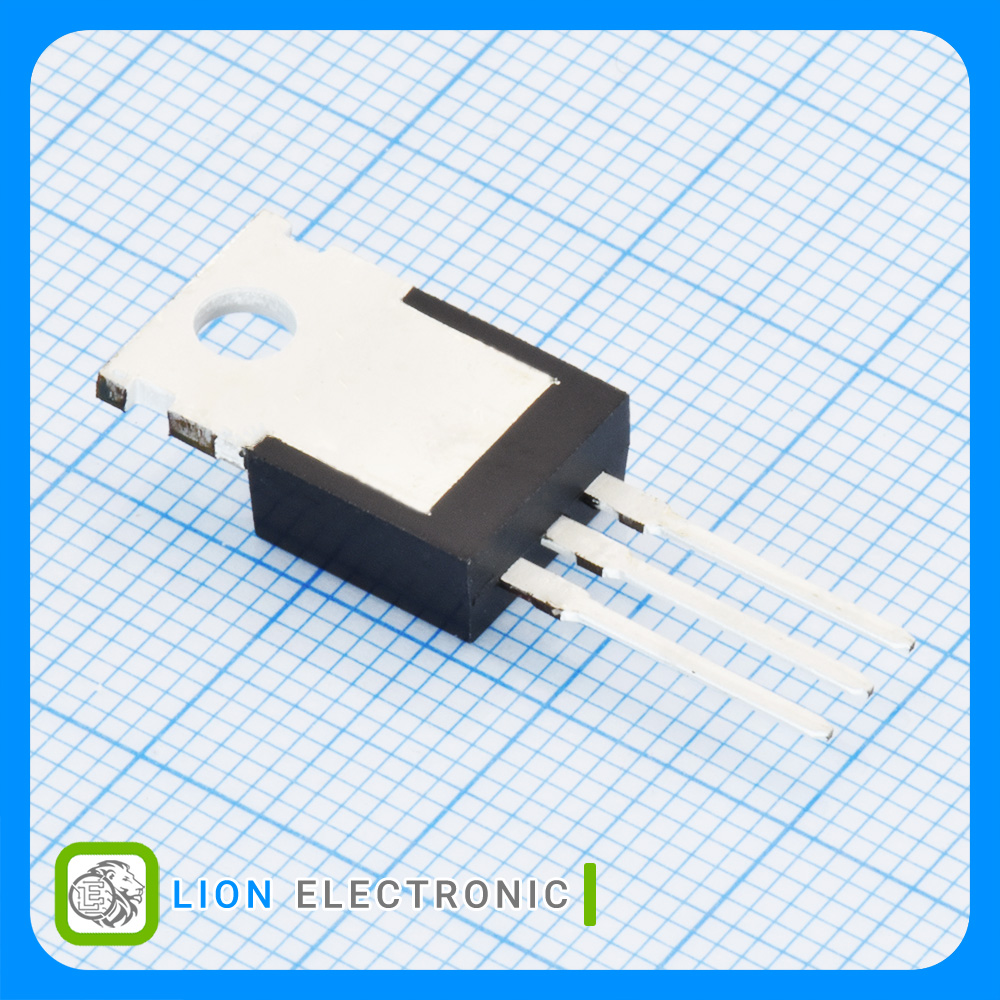

BT138-600E
Detail
BT138-600E
Part Number .
46
Lion Part .
Datasheet .
NXP Semiconductors Manufacture .
ترایاک 600 ولت 12 آمپر با پکیج TO-220-3
Triac 600V, 12A with TO-220-3 Package
مشخصات BT138-600E
BT138-600E
Part Number .
12A
On-State RMS Current - It RMS .
105A
Non Repetitive On-State Current .
100uA
Off-State Leakage Current @ VDRM IDRM .
-40C
Minimum Operating Temperature .
1.65V
On-State Voltage .
600V
Rated Repetitive Off-State Voltage VDRM .
30mA
Holding Current Ih Max .
25mA
Gate Trigger Current - Igt .
1.5V
Gate Trigger Voltage - Vgt .
+125C
Maximum Operating Temperature .
Tube
Packaging .
Through Hole
Mounting Style .
TO-220-3
Package-Case .
