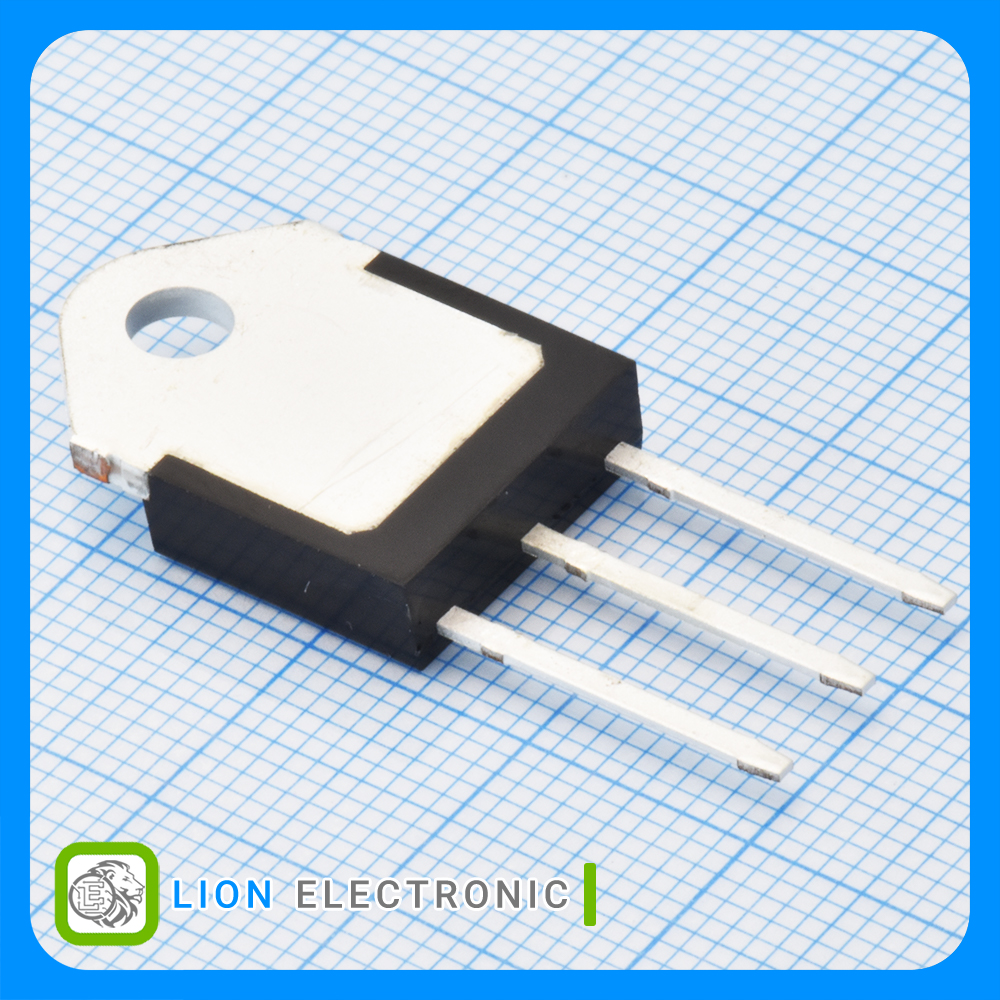

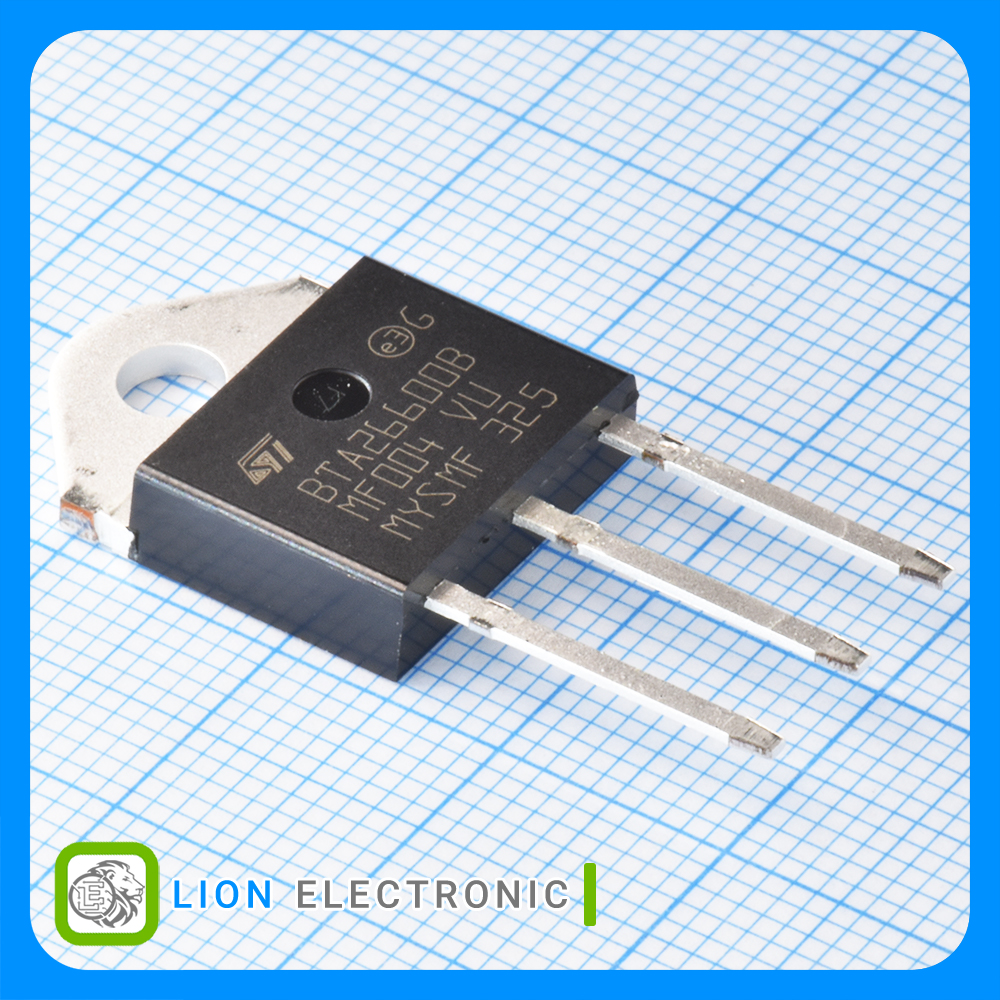

BTA26-600BRG
Detail
BTA26-600BRG
Part Number .
48
Lion Part .
Datasheet .
STMicroelectronics Manufacture .
ترایاک 600 ولت 25 آمپر با پکیج TOP-3
600V, 25A Standard and Snubberless Triacs
مشخصات BTA26-600BRG
BTA26-600BRG
Part Number .
5uA
Off-State Leakage Current @ VDRM IDRM .
1.55V
On-State Voltage .
1.3V
Gate Trigger Voltage - Vgt .
-40C
Minimum Operating Temperature .
600V
Rated Repetitive Off-State Voltage VDRM .
+125C
Maximum Operating Temperature .
25A
On-State RMS Current - It RMS .
260A
Non Repetitive On-State Current .
Tube
Packaging .
Through Hole
Mounting Style .
50mA
Gate Trigger Current - Igt .
80mA
Holding Current Ih Max .
TOP3
Package-Case .
