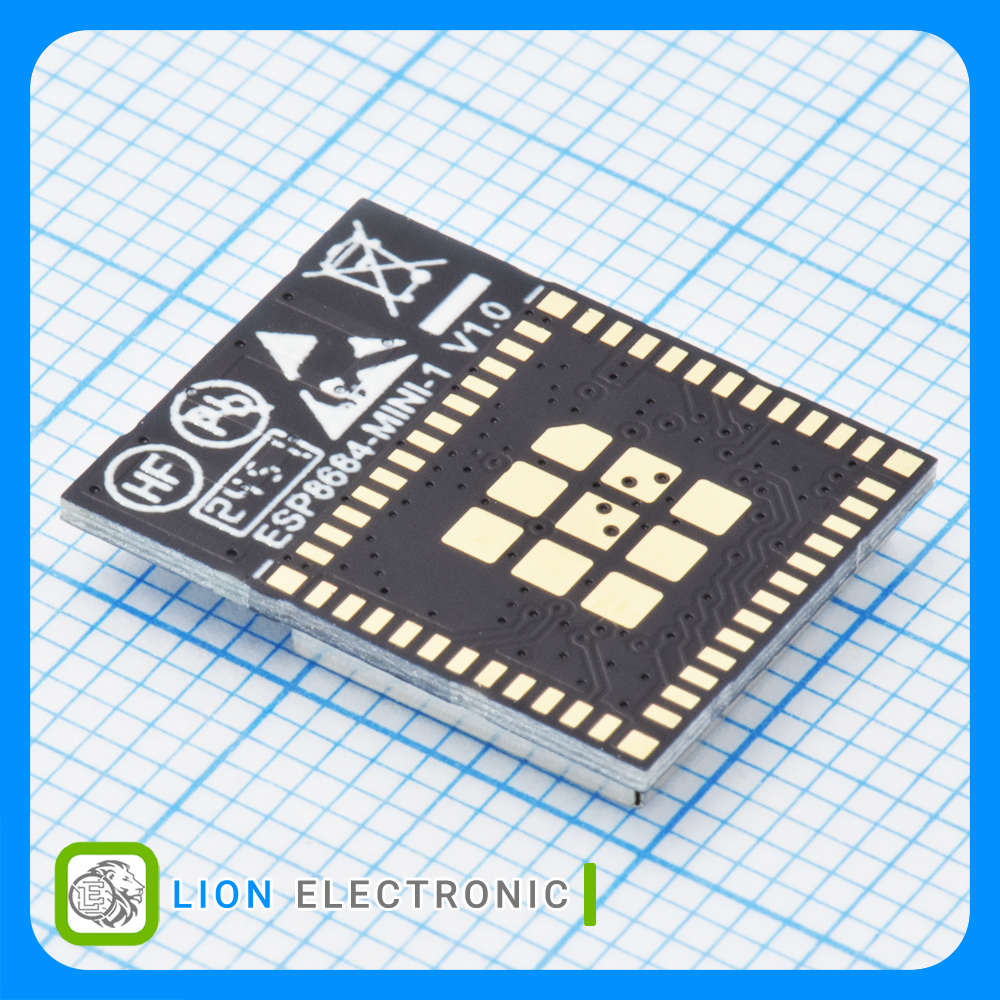

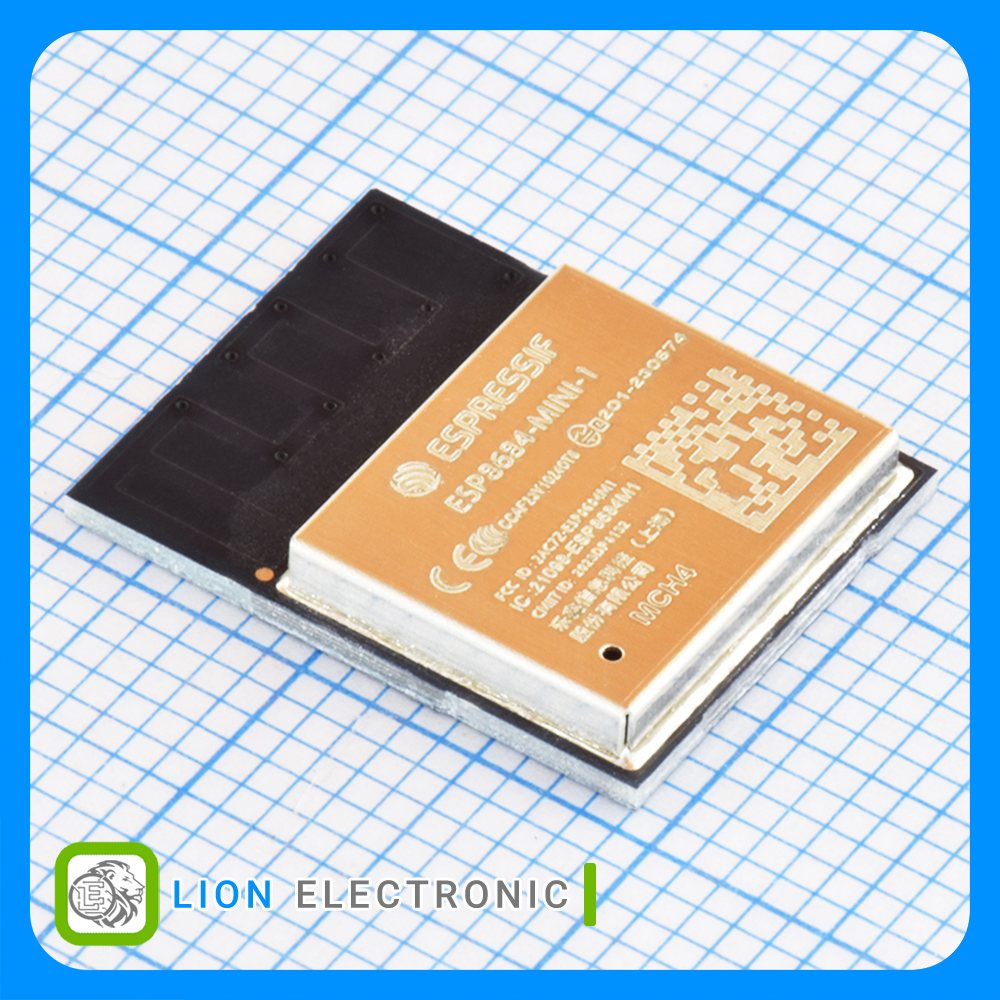

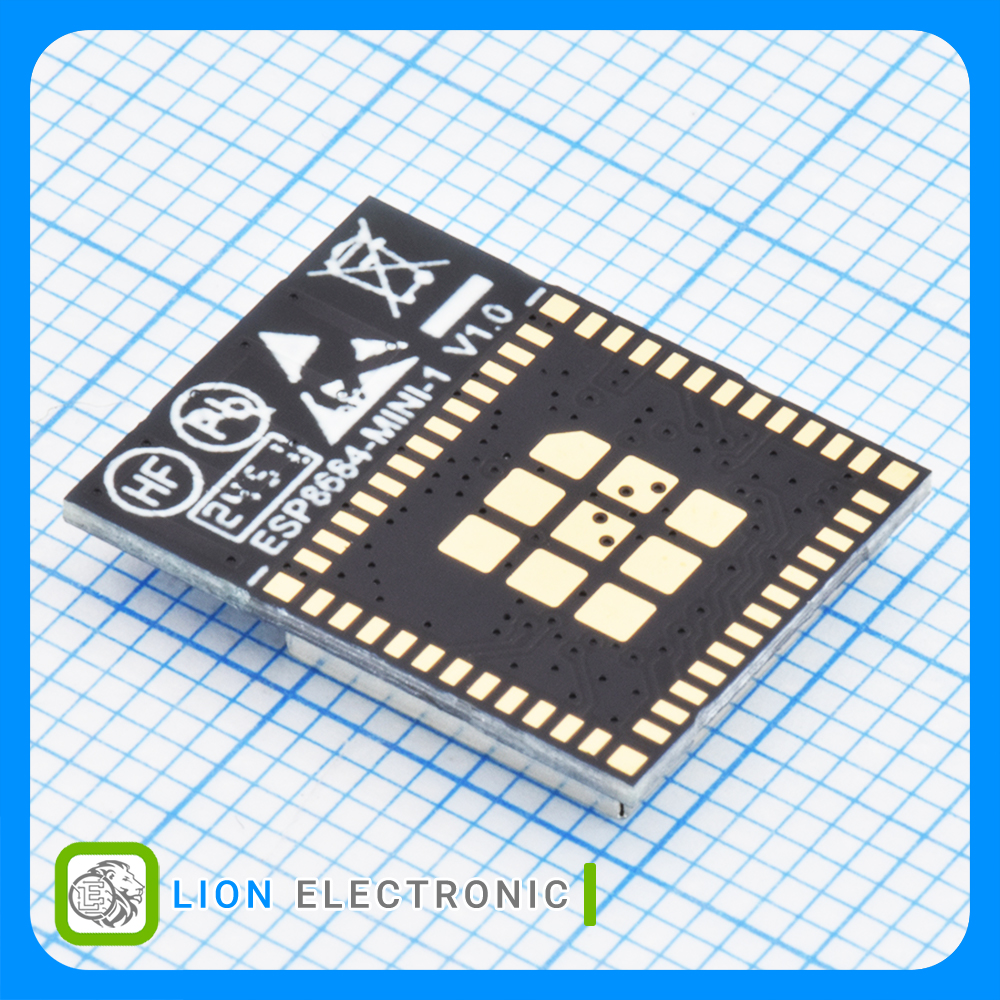

ماژول وای فای و بلوتوث ESP8684-MINI-1-H4
Espressif
مشخصات ماژول وای فای و بلوتوث ESP8684-MINI-1-H4
ماژول وای فای و بلوتوث ESP8684-MINI-1-H4
Part Number .
Reel
Packaging .
-40C
Minimum Operating Temperature .
PCB
Antenna Connector Type .
14
Number of I-Os .
+105C
Maximum Operating Temperature .
13.2mm x 16.6mm x 2.4mm
Dimensions .
65mA
Supply Current Receiving .
120MHz
Frequency .
370mA, 320mA, 300mA
Supply Current Transmitting .
21dBm
Output Power .
Multiprotocol Modules
Product .
3 - 3.6V
Operating Supply Voltage .
I2C, SPI, UART
Interface Type .
