WeEn/NXP
مشخصات ترایاک BTA41-600BQ

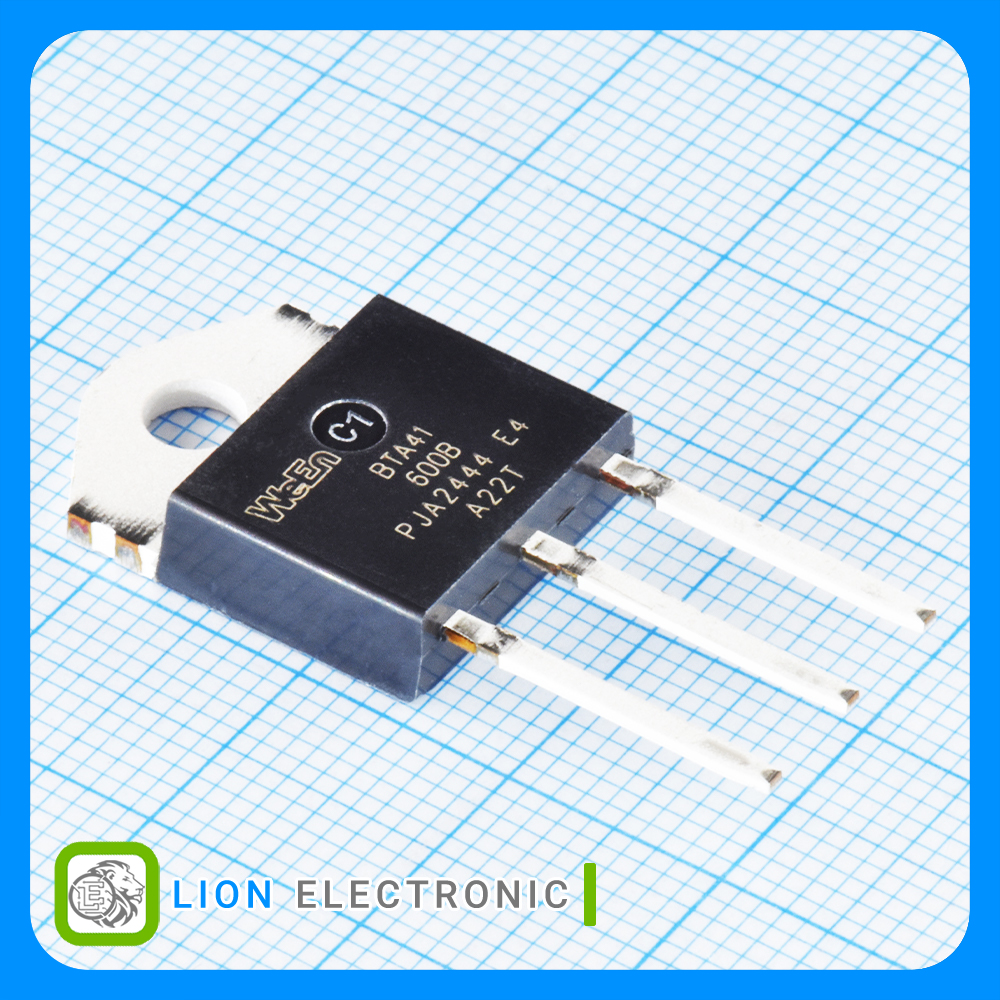

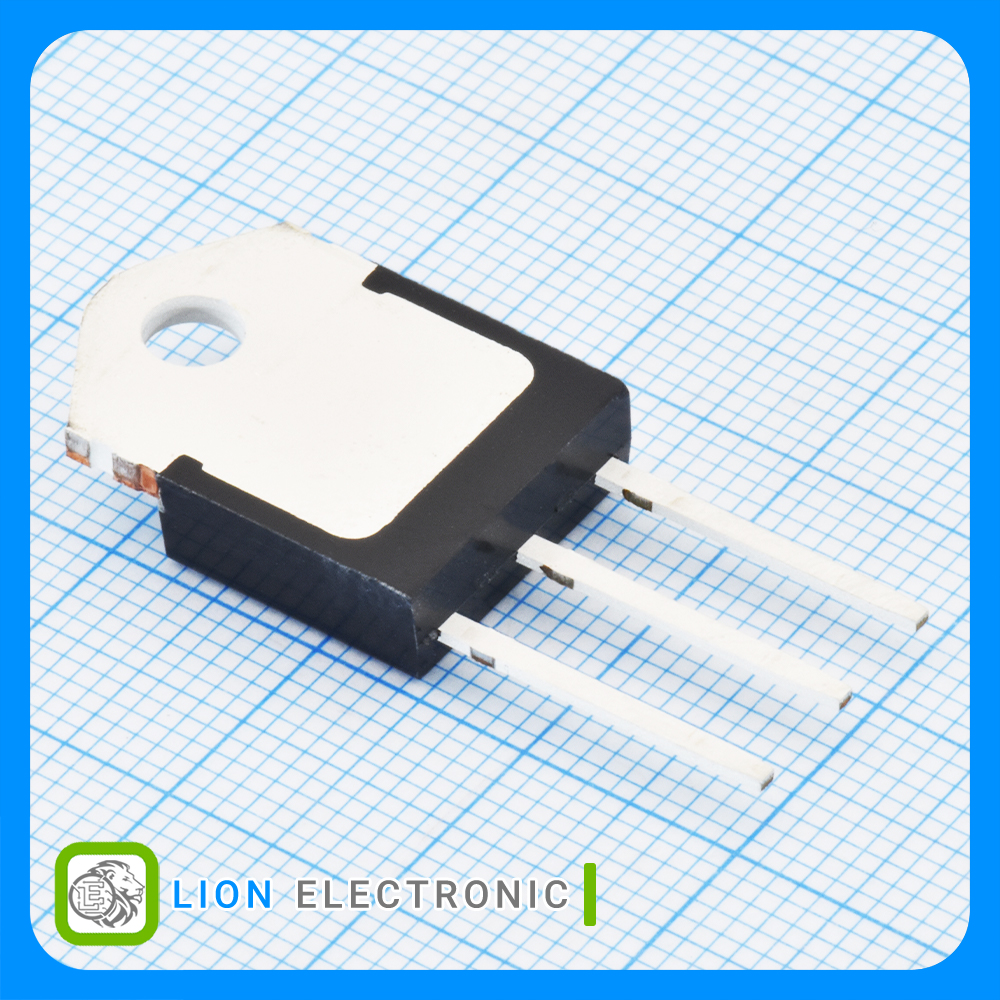

ترایاک BTA41-600BQ
Part Number .
1.2V
On-State Voltage .
10uA
Off-State Leakage Current @ VDRM IDRM .
800mV
Gate Trigger Voltage - Vgt .
+150C
Maximum Operating Temperature .
600V
Rated Repetitive Off-State Voltage VDRM .
Tube
Packaging .
40A
On-State RMS Current - It RMS .
Through Hole
Mounting Style .
70mA
Gate Trigger Current - Igt .
440A
Non Repetitive On-State Current .
80mA
Holding Current Ih Max .
N/A
Minimum Operating Temperature .
TO-3P
Package-Case .
