Espressif
معرفی
Module interfaces:
SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, Two-Wire Automotive Interface (TWAI®), compatible with ISO11898-1 (CAN Specification 2.0)

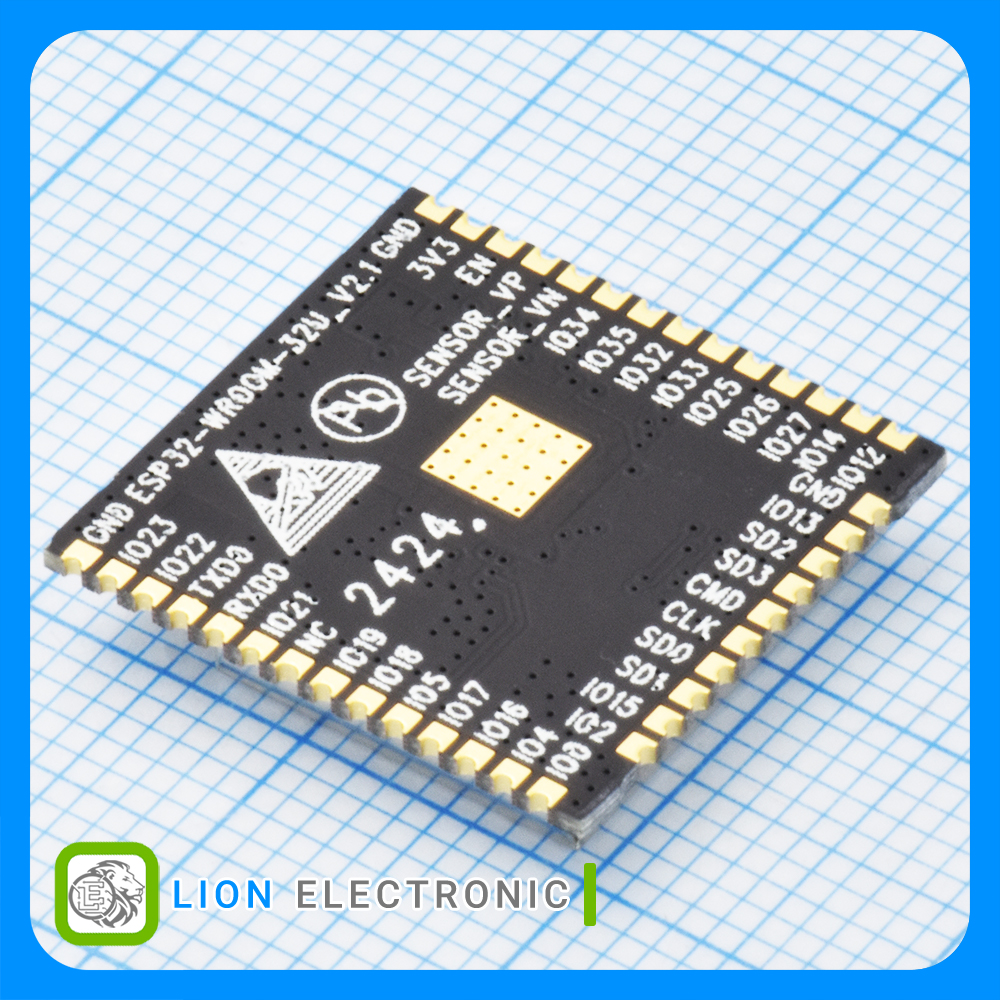

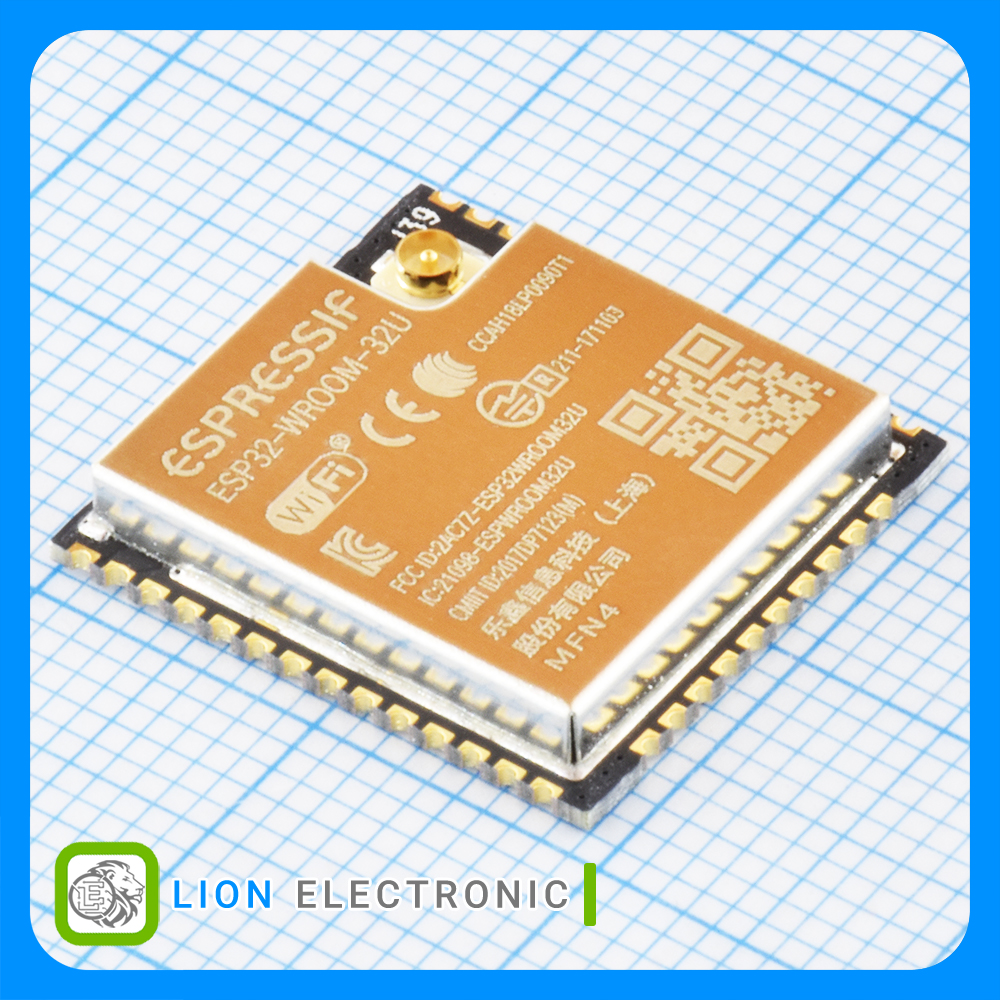

مشخصات ماژول ESP32-WROOM-32U-N4
ماژول ESP32-WROOM-32U-N4
Part Number .
IPEX
Antenna Connector Type .
Reel
Packaging .
-40C
Minimum Operating Temperature .
22
Number of I-Os .
+85C
Maximum Operating Temperature .
240MHz
Frequency .
-
Supply Current Receiving .
-
Supply Current Transmitting .
19.2mm x 18mm x 3.2mm
Dimensions .
20dBm
Output Power .
3 - 3.6V
Operating Supply Voltage .
WiFi & Bluetooth Module
Product .
درج شده در توضیحات محصول
Interface Type .
