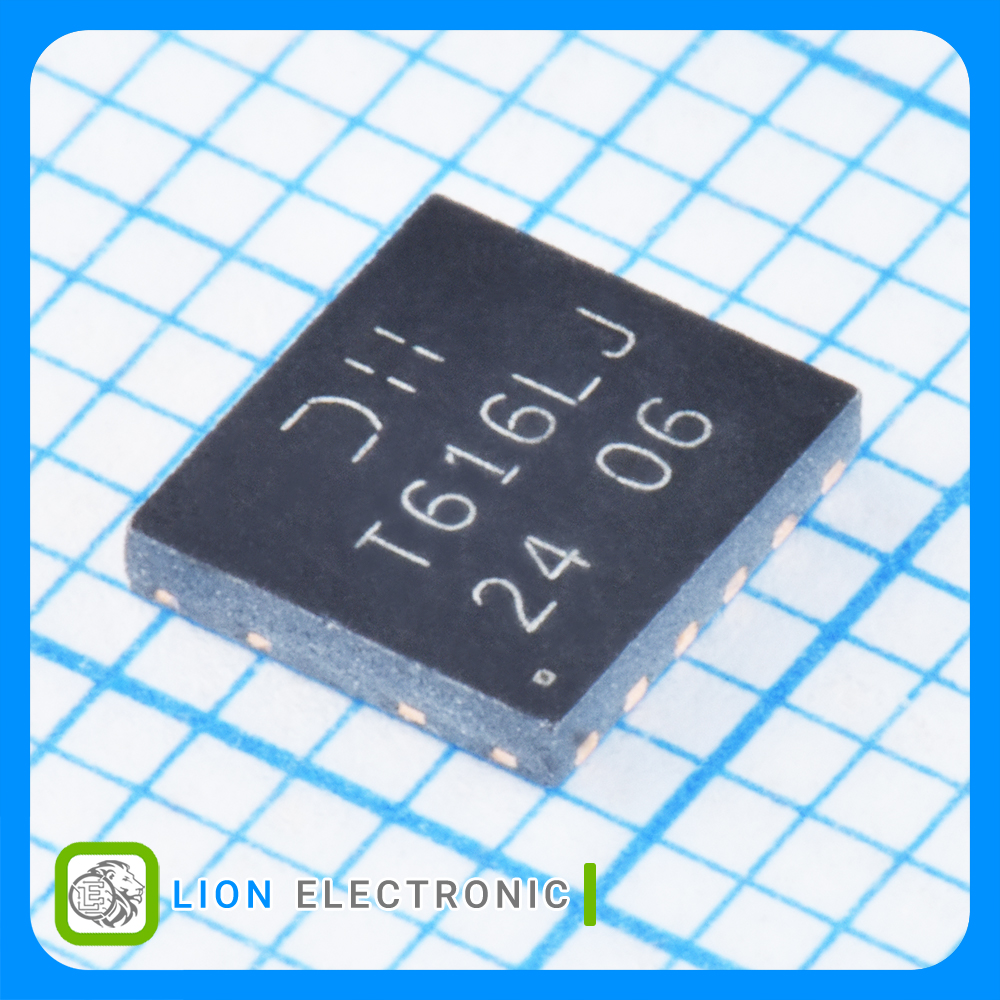

ماسفت DMHT6016LFJ-13
Detail
DMHT6016LFJ-13
Part Number .
5603
Lion Part .
Datasheet .
Diodes Incorporated Manufacture .
ماسفت 60 ولت 10.6 آمپر نوع N با پکیج V-DFN5045-12
4-CH N-CH MOS 60V 10.6A V-DFN5045-12
مشخصات ماسفت DMHT6016LFJ-13
ماسفت DMHT6016LFJ-13
Part Number .
Enhancement
Channel Mode .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
+150C
Maximum Operating Temperature .
Reel
Packaging .
4
Number of Channels .
SMD/SMT
Mounting Style .
±20V
Vgs - Gate - Source Voltage .
Full-Bridge
Configuration .
60V
Vds - Drain - Source Breakdown Voltage .
1V
Vgs th - Gate - Source Threshold Voltage .
17nC
Qg - Gate Charge .
1.16W
Pd - Power Dissipation .
17mΩ
Rds On - Drain - Source Resistance .
10.6A
Id - Continuous Drain Current .

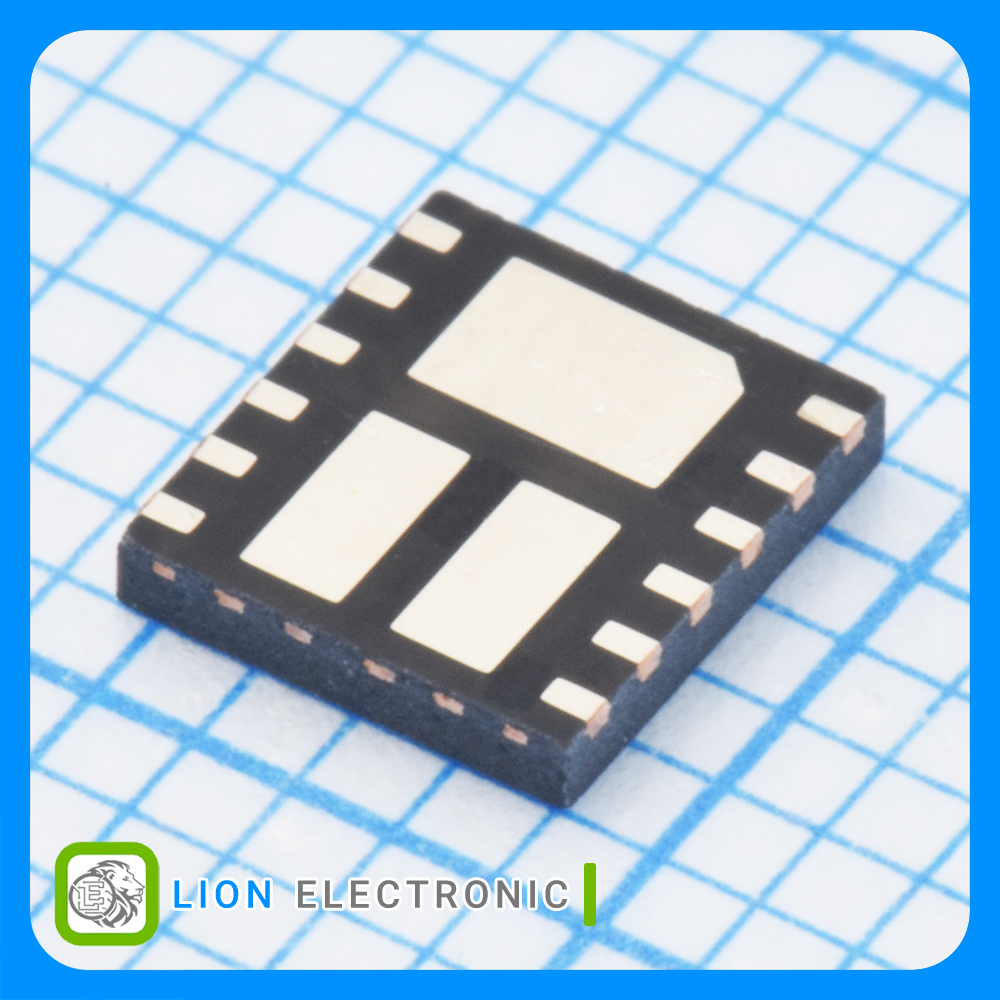

V-DFN5045-12 (Type B)
Package-Case .
