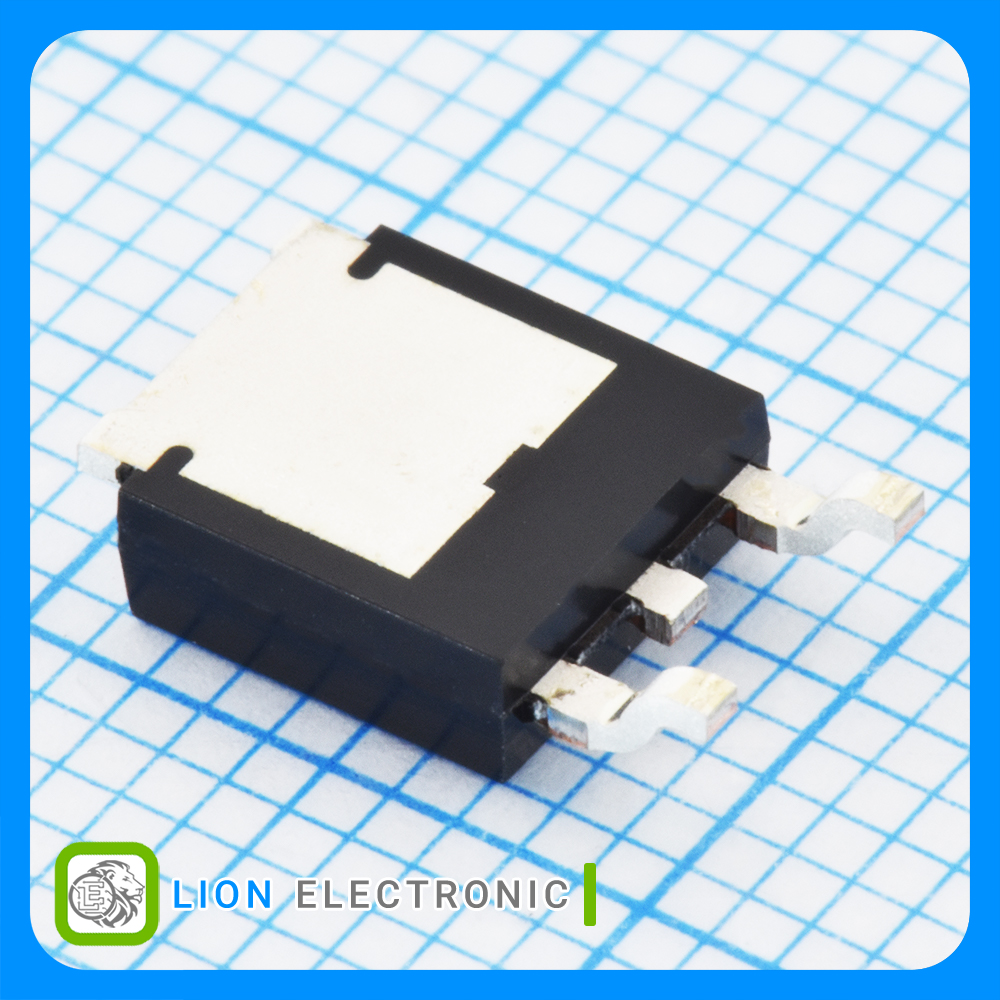

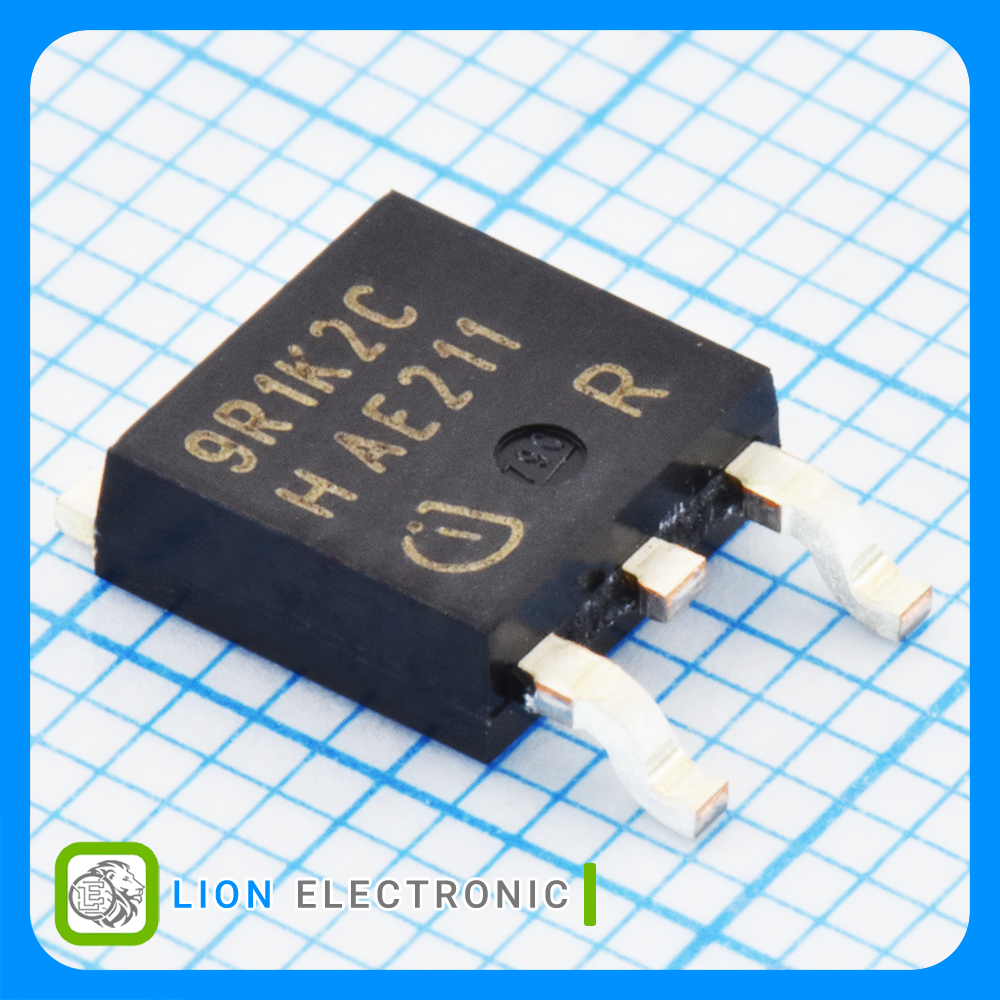

ماسفت IPD90R1K2C3
Detail
IPD90R1K2C3
Part Number .
5607
Lion Part .
Datasheet .
Infineon Technologies Manufacture .
ماسفت 900 ولت 5.1 آمپر نوع N با پکیج TO-252-3
N-CH MOS 900V 5.1A TO-252-3
مشخصات ماسفت IPD90R1K2C3
ماسفت IPD90R1K2C3
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
-55C
Minimum Operating Temperature .
N-Channel
Transistor Polarity .
+150C
Maximum Operating Temperature .
Reel
Packaging .
SMD/SMT
Mounting Style .
±20V
Vgs - Gate - Source Voltage .
Single
Configuration .
900V
Vds - Drain - Source Breakdown Voltage .
2.5V
Vgs th - Gate - Source Threshold Voltage .
28nC
Qg - Gate Charge .
5.1A
Id - Continuous Drain Current .
83W
Pd - Power Dissipation .
940mΩ
Rds On - Drain - Source Resistance .
TO-252-3
Package-Case .
