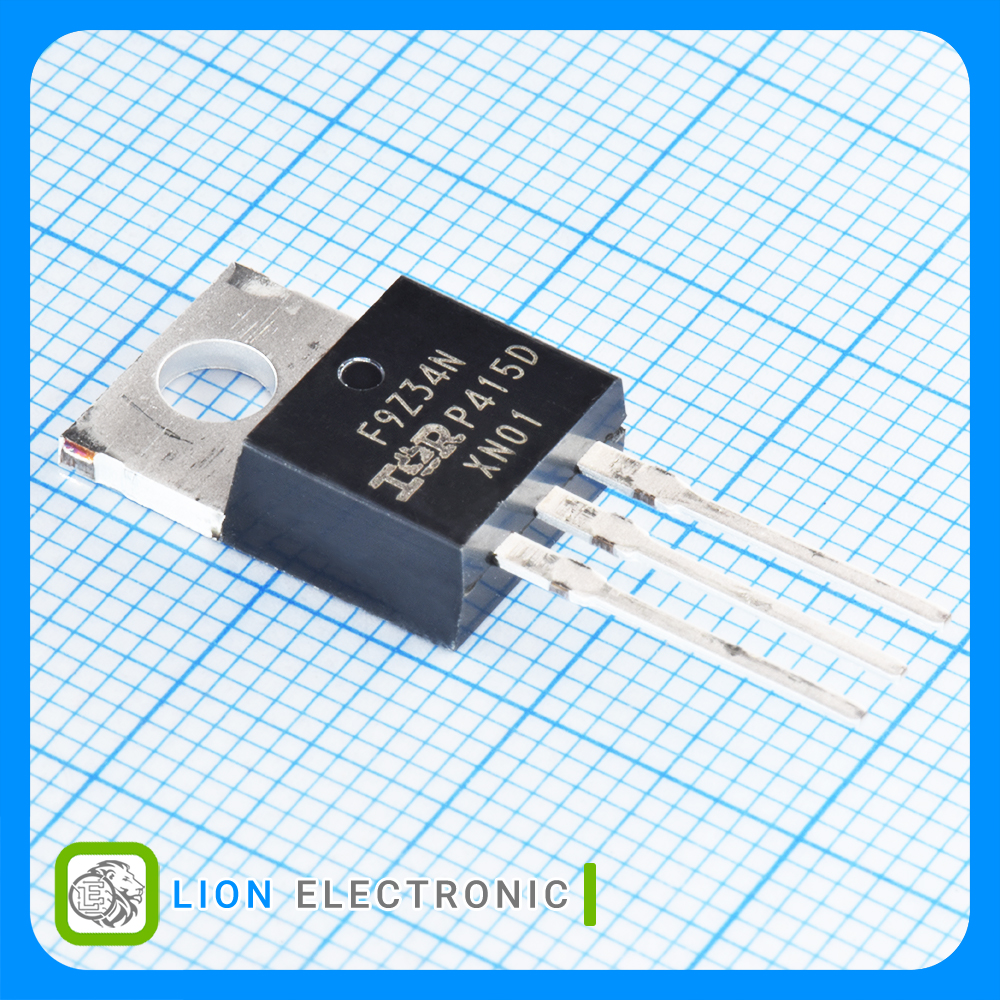

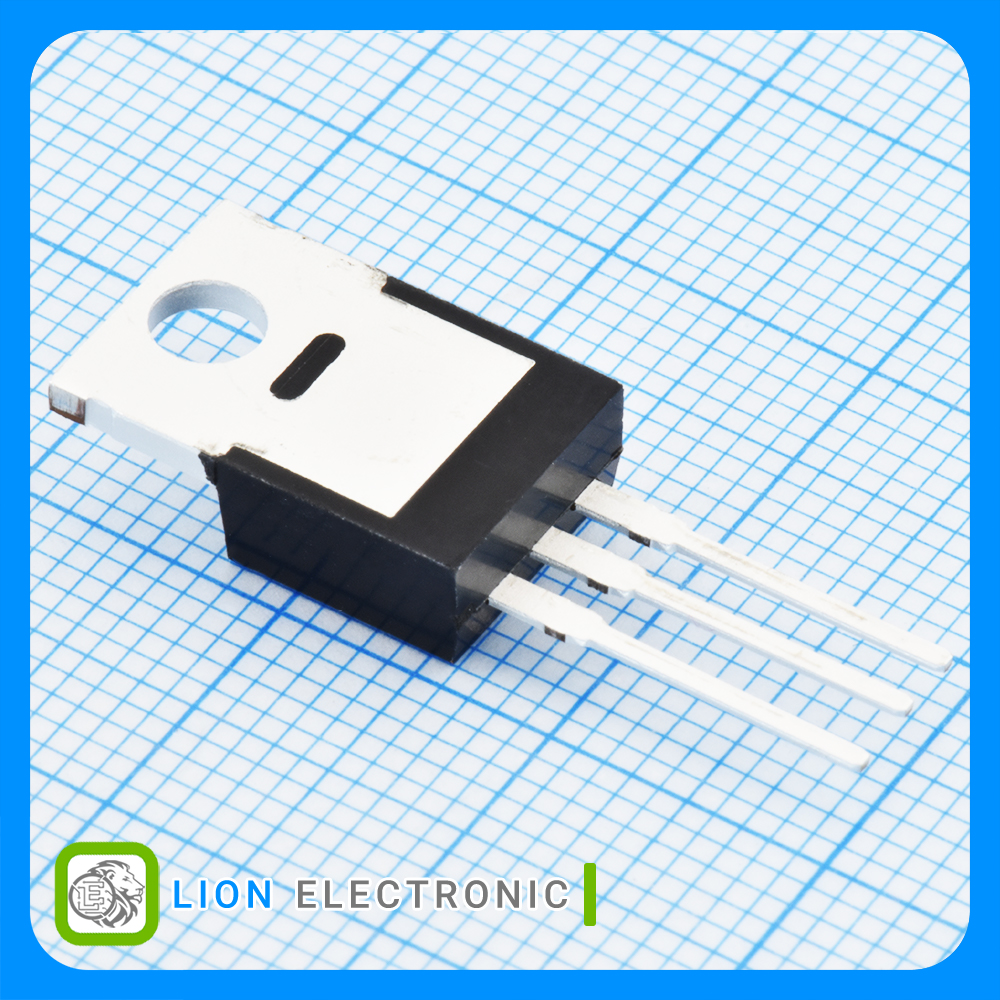

IRF9Z34NPBF
Detail
IRF9Z34NPBF
Part Number .
5735
Lion Part .
Datasheet .
Infineon Technologies Manufacture .
ماسفت 55 ولت 19 آمپر نوع P با پکیج TO-220-3
P-CH MOS 55V 19A TO-220-3
مشخصات IRF9Z34NPBF
IRF9Z34NPBF
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
+175C
Maximum Operating Temperature .
-2V
Vgs th - Gate - Source Threshold Voltage .
-55C
Minimum Operating Temperature .
-55V
Vds - Drain - Source Breakdown Voltage .
P-Channel
Transistor Polarity .
Tube
Packaging .
Through Hole
Mounting Style .
-19A
Id - Continuous Drain Current .
±20V
Vgs - Gate - Source Voltage .
Single
Configuration .
35nC
Qg - Gate Charge .
100mΩ
Rds On - Drain - Source Resistance .
68W
Pd - Power Dissipation .
TO-220-3
Package-Case .
