TOSHIBA
مشخصات ماسفت TJ15S06M3L,LHQ(O

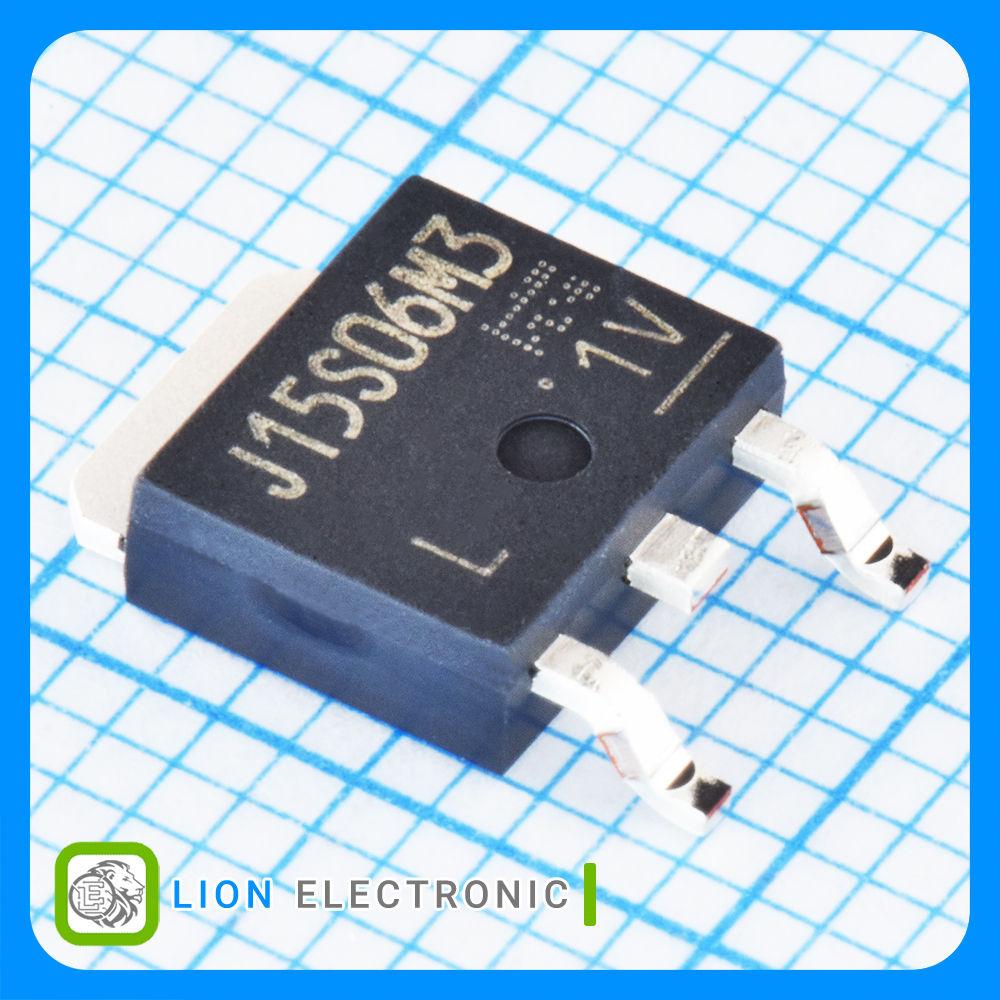

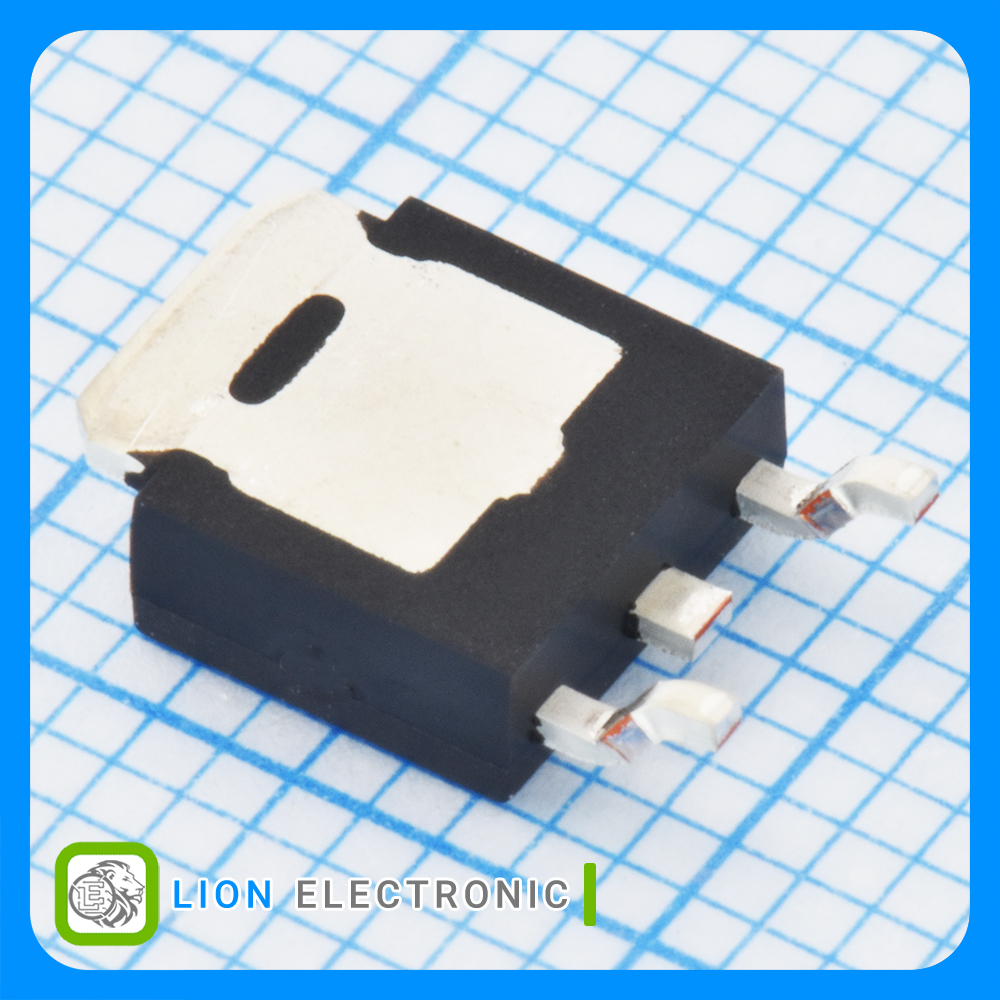

ماسفت TJ15S06M3L,LHQ(O
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
+175C
Maximum Operating Temperature .
-55C
Minimum Operating Temperature .
-60V
Vds - Drain - Source Breakdown Voltage .
-2V
Vgs th - Gate - Source Threshold Voltage .
Reel
Packaging .
P-Channel
Transistor Polarity .
SMD/SMT
Mounting Style .
-15A
Id - Continuous Drain Current .
-20/+10V
Vgs - Gate - Source Voltage .
Single
Configuration .
36nC
Qg - Gate Charge .
38.5mΩ
Rds On - Drain - Source Resistance .
DPAK
Package-Case .
41W
Pd - Power Dissipation .
