TOSHIBA
مشخصات ماسفت TJ30S06M3L(T6L1.NQ

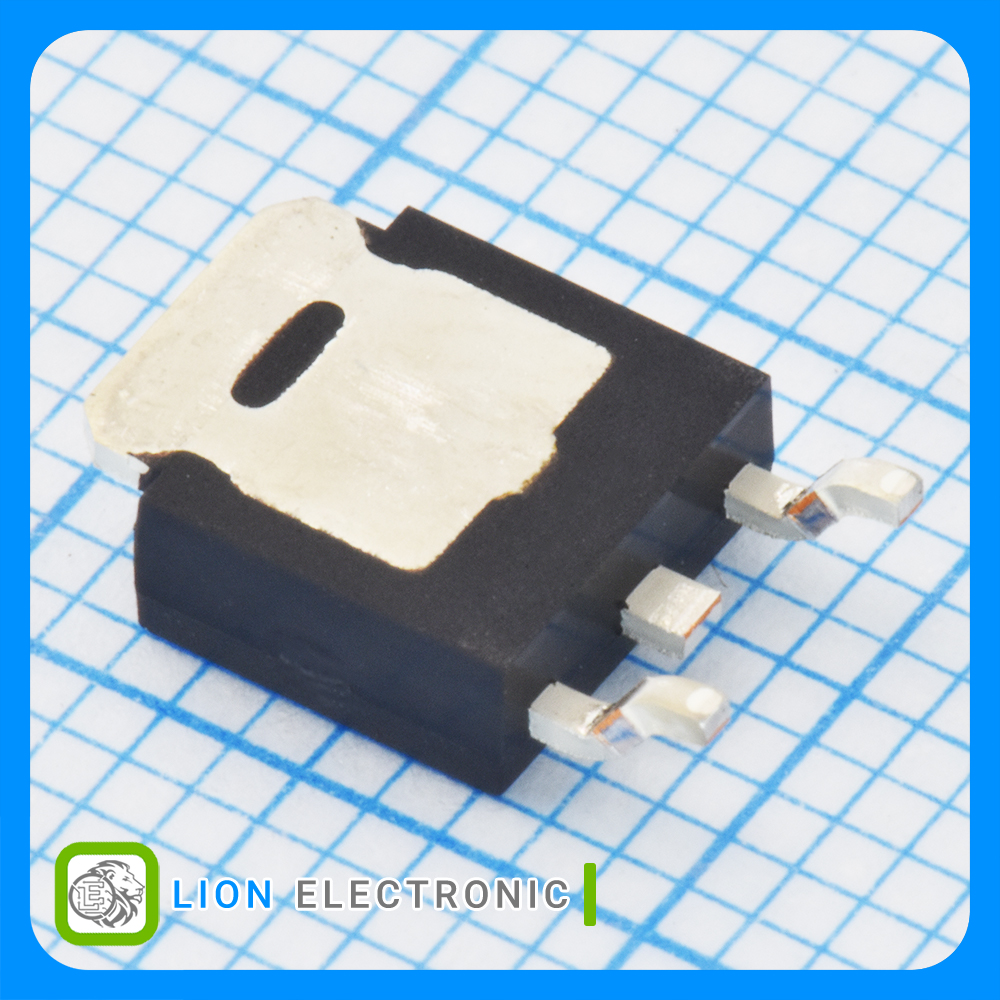

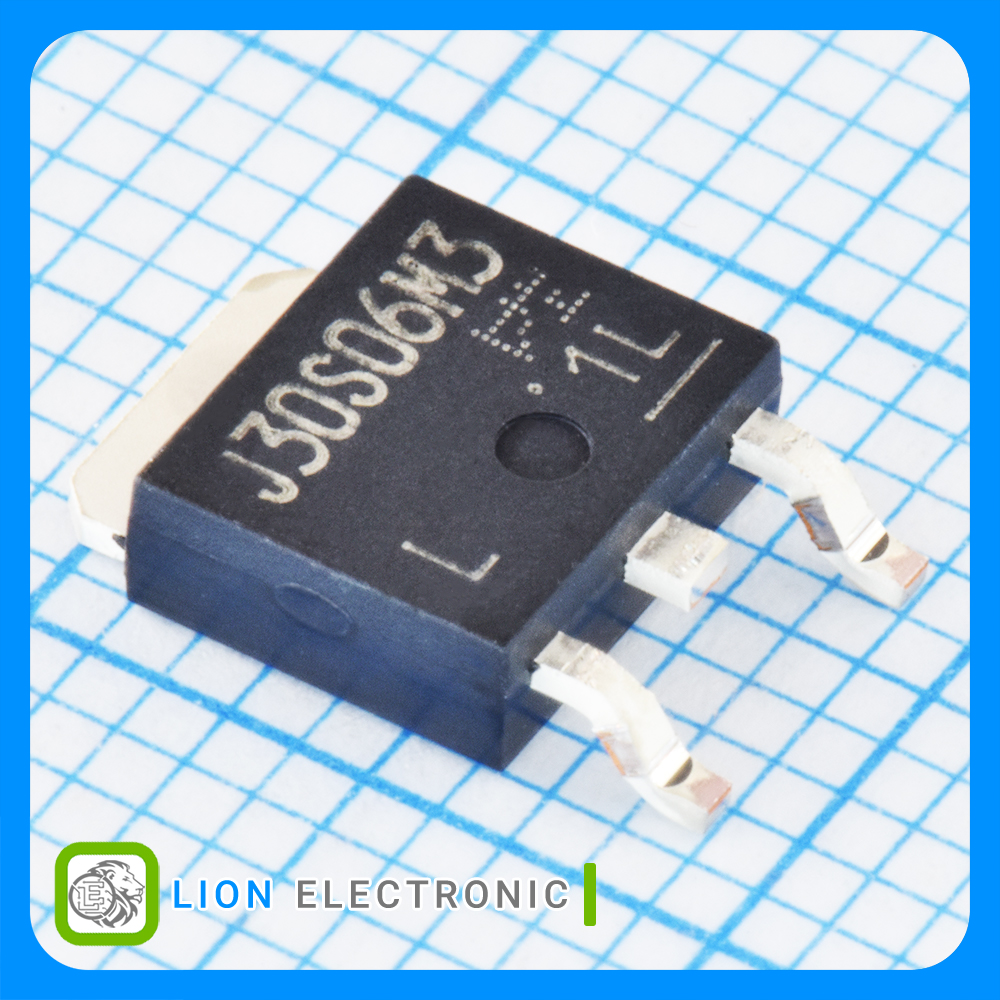

ماسفت TJ30S06M3L(T6L1.NQ
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
+175C
Maximum Operating Temperature .
-55C
Minimum Operating Temperature .
-60V
Vds - Drain - Source Breakdown Voltage .
-2V
Vgs th - Gate - Source Threshold Voltage .
Reel
Packaging .
-30A
Id - Continuous Drain Current .
SMD/SMT
Mounting Style .
P-Channel
Transistor Polarity .
-20/+10V
Vgs - Gate - Source Voltage .
Single
Configuration .
16.8mΩ
Rds On - Drain - Source Resistance .
DPAK
Package-Case .
80nC
Qg - Gate Charge .
68W
Pd - Power Dissipation .
